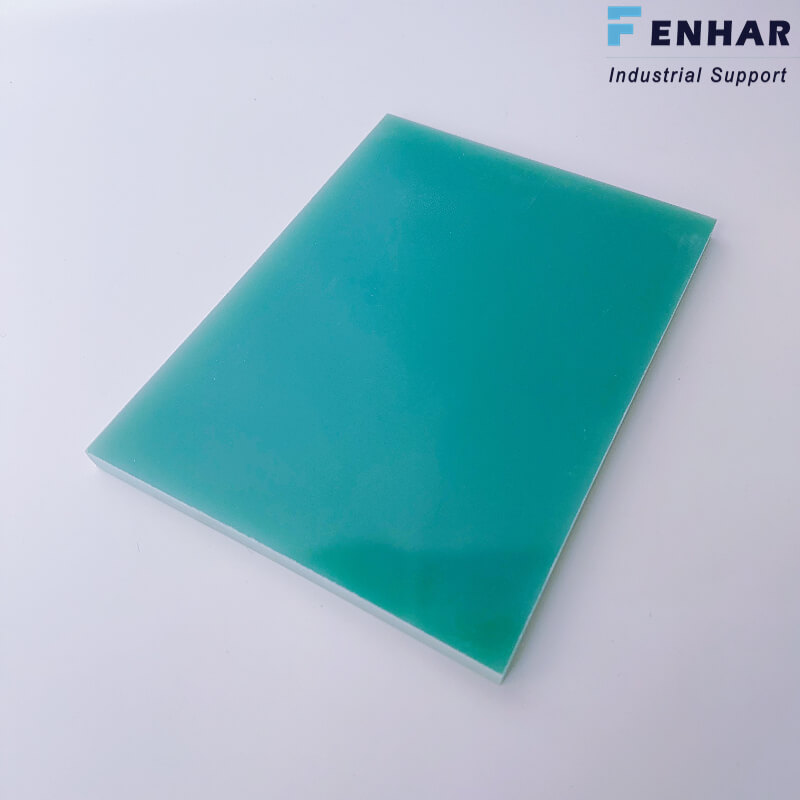

G-10/EPGC201/HGW2372 Epoxy Glass Sheets

G-10/EPGC201/HGW2372 Sheets are high-performance composite laminates made from woven glass fabric and epoxy resin, offering exceptional electrical insulation, mechanical strength, and thermal resistance. Ideal for high-voltage, high-temperature, and harsh industrial environments.

Quantity:
Availability:





Inquire Add to Basket

Product Details

These sheets combine epoxy resin and woven glass fibers to create a material that excels in both electrical and mechanical applications. Known for its high dielectric strength, thermal stability, and resistance to mechanical stress, it performs reliably in demanding environments. These sheets are particularly valued for their excellent electrical insulation, which prevents leakage and short circuits in electrical systems, and their ability to withstand high temperatures up to 130°C, making them ideal for heat-generating applications.

With high tensile and compressive strength, These sheets offer exceptional durability, making them suitable for heavy-duty machinery, motors, and transformers. The material is also resistant to chemicals, oils, and solvents, ensuring longevity even in corrosive environments. Furthermore, it maintains dimensional stability despite humidity and temperature fluctuations, ensuring consistent performance over time. This combination of properties makes G-10/EPGC201/HGW2372 Sheets a trusted choice in industries requiring high voltage and temperature resistance.

Get a Quote

Product Parameters

Standard

IEC60893-3-2

NEMALI-1

DIN 7735

MIL-I-24768/2 GEE

Density

2.0 g/cm³

Dielectric Constant

≤ 5.5 Hz

Tensile Strength

≥ 300 MPa

Thermal Class

Class B (130°C)

Insulation Resistance

≥ 5× 10^4 MΩ

Product Advantages

Superior Electrical Insulation

These sheets offer excellent dielectric properties, providing robust electrical insulation in high-voltage applications. This ensures safety and reduces the risk of electrical failures in sensitive systems.

Thermal and Mechanical Strength

With a thermal resistance up to 130°C and high mechanical strength, these sheets maintain integrity under both temperature extremes and mechanical stress, making them suitable for heavy-duty applications in machinery and electrical systems.

Chemical Resistance and Dimensional Stability

The materials resistance to chemicals, oils, and solvents, combined with its ability to maintain dimensional stability under varying humidity and temperature conditions, ensures long-lasting performance in harsh industrial environments.

Product Applications

Electrical Transformers

These sheets are widely used in transformer insulation. Their high dielectric strength ensures reliable electrical isolation in high-voltage transformer windings, while their thermal stability ensures long-lasting performance even under continuous heat exposure.
Switchgear and Circuit Breakers

These sheets are ideal for use in switchgear and circuit breakers, where reliable insulation and mechanical durability are essential. These sheets protect critical electrical components from electrical faults and mechanical wear, ensuring the efficient operation of power distribution systems.
Motor Windings

In electric motors, These sheets provide insulation for windings, preventing short circuits and improving the motor's efficiency. Their high mechanical strength also helps maintain the structural integrity of motor components under heavy operational loads.
