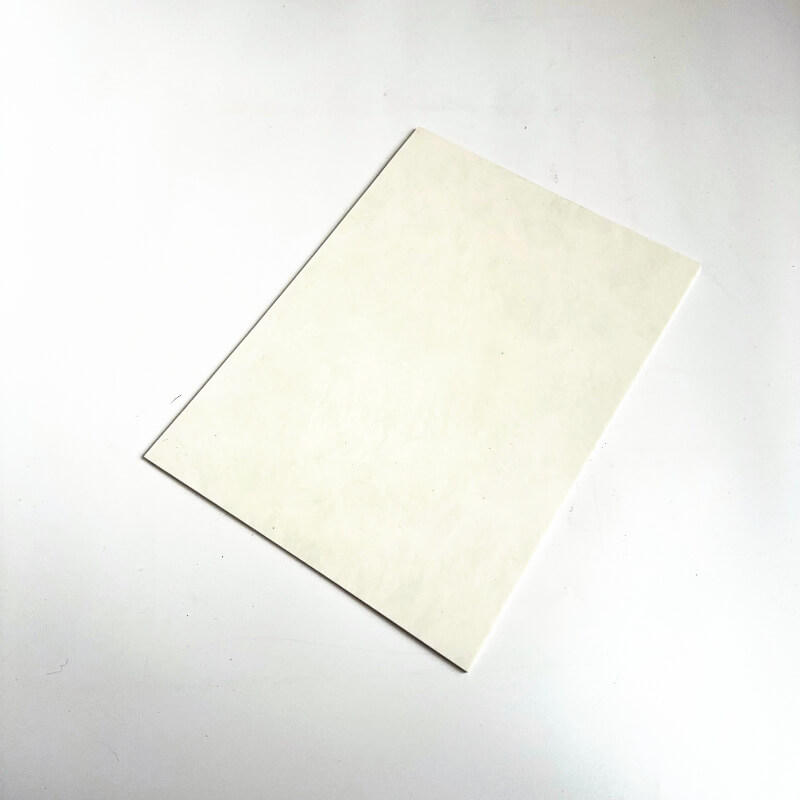

G-5/MFGC201/HGW2272 Melamine Glass Sheets

G-5/MFGC201/HGW2272 Sheets are high-performance melamine glass laminates that provide excellent electrical insulation, mechanical strength, and heat resistance. These sheets are ideal for high-voltage applications and environments requiring reliable, long-lasting insulation.
Availability:
Quantity:
telegram sharing button
snapchat sharing button
kakao sharing button
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product Details

G-5/MFGC201/HGW2272 Melamine Glass Sheets
These sheets are produced by impregnating woven glass fabric with a melamine resin, resulting in a composite material that combines glass’s strength with melamine’s insulating properties. This durable laminate offers excellent dielectric strength, ensuring superior electrical insulation even under high-voltage conditions.

These sheets are also designed to withstand high temperatures, offering a thermal stability that makes them suitable for environments with extreme heat. G-5 laminates are widely used in electrical and industrial applications where both thermal resistance and mechanical strength are critical.

With a low moisture absorption rate, These sheets perform consistently in humid conditions, maintaining high performance in both dry and wet environments. Their superior arc resistance further enhances safety and reliability in electrical systems, making them a top choice for insulation in power distribution and heavy machinery.

Product Parameters

Standard
IEC60893-3-3
NEMALI-1
DIN 7735
MIL-I-24768/8 GMG
Specific Gravity
1.90
Tensile Strength (psi)
70,000
Shear Strength
18,000
Flexural Strength (psi)
55,000
Hardness, M Scale
115

Product Advantages

Product Advantages Icon

Superior Electrical Insulation

With a dielectric strength of ≥ 35 kV/mm, These sheets ensure reliable electrical insulation, even under high-voltage conditions.

Product Advantages Icon 1

Enhanced Thermal and Mechanical Stability

These sheets offer excellent heat resistance (Class B, 130°C) and high mechanical strength, making them perfect for use in industrial machinery and electrical components.

Product Advantages Icon 2

Low Moisture Absorption

G-5 laminates are resistant to moisture, ensuring stable performance in both dry and humid environments, ideal for demanding conditions in electrical and industrial applications.


Product Applications

FAQ

  • What is the minimum order quantity?
    Created with Sketch.
    形状 Created with Sketch.
    The minimum order quantity depends on the specific product you are interested in. For detailed information, please contact us directly via email or WhatsApp.
  • What is the price of this product?
    Created with Sketch.
    形状 Created with Sketch.
    The price of our products varies depending on the quantity, size, and specifications. For an accurate quote, please reach out to us via email or WhatsApp, and we'll provide you with the best options tailored to your needs.
  • What is the average delivery time?
    Created with Sketch.
    形状 Created with Sketch.
    Delivery times vary based on the quantity and specifications of the order. Typically, delivery can take anywhere from 3 to 30 days. For more precise information, please contact us directly via email or WhatsApp.
