G10/FR-4 Epoxy Fiberglass Processed Parts

Precision-machined G10 and FR-4 epoxy fiberglass parts are engineered for demanding electrical and mechanical applications. Manufactured to customer drawings, they provide excellent dimensional stability, dielectric strength, flame resistance (FR-4), and reliable performance in high-voltage, industrial, and electronic assemblies.

Quantity:
Availability:





Inquire Add to Basket

Product Details

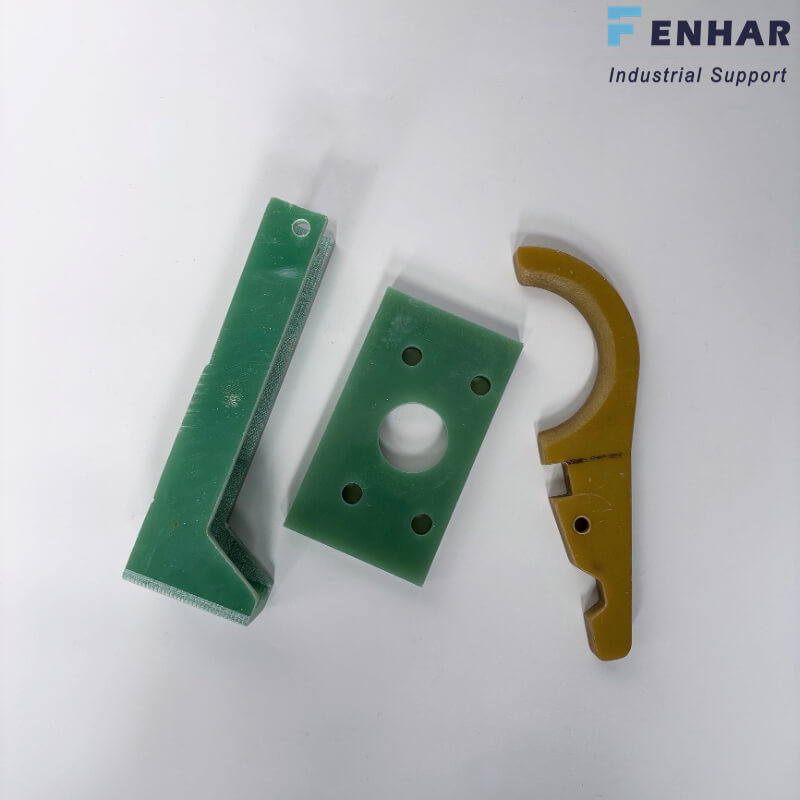

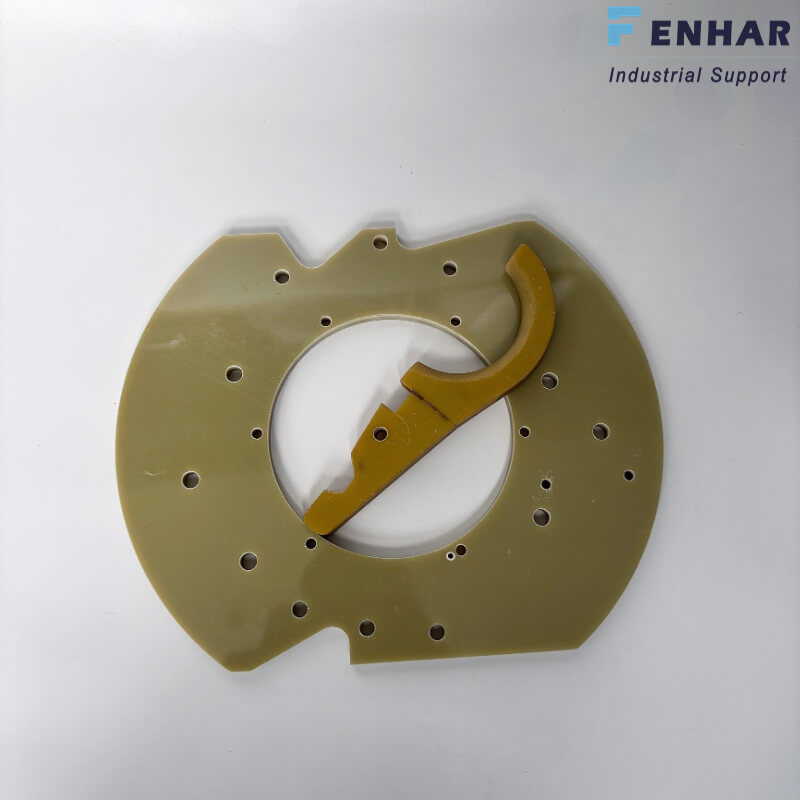

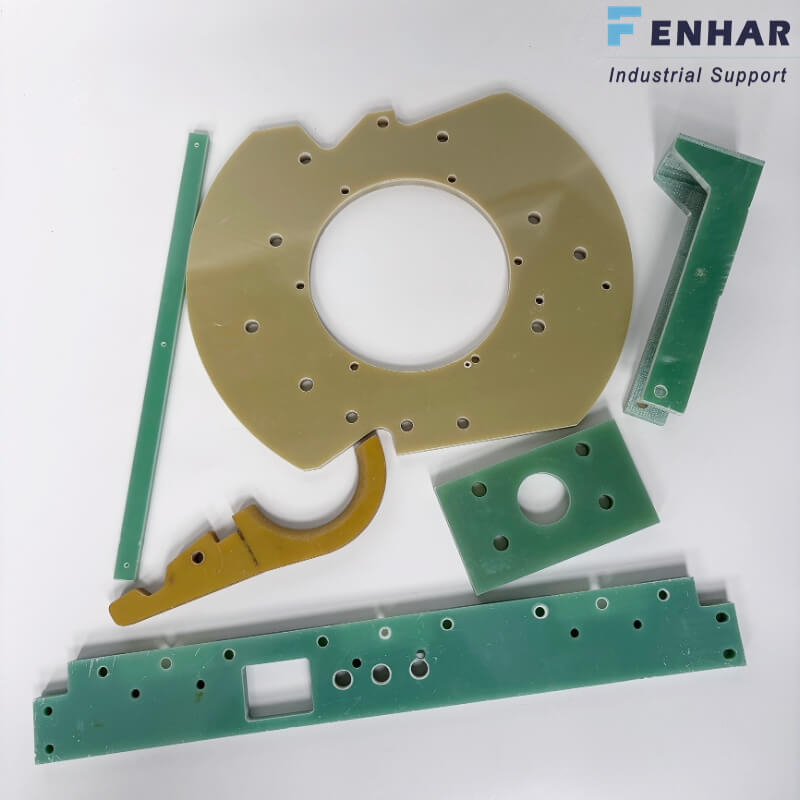

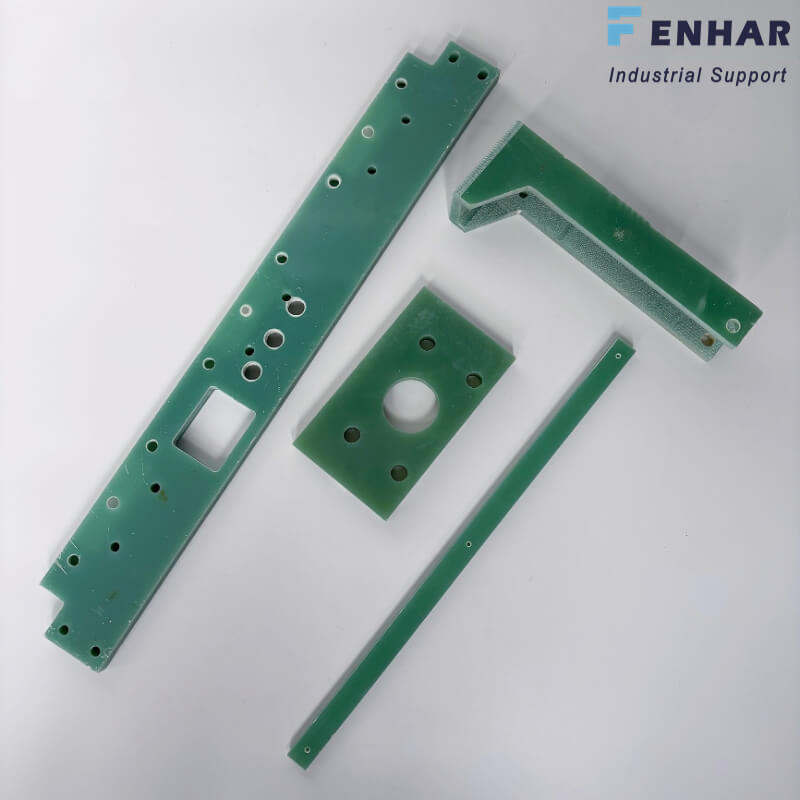

G10/FR-4 Epoxy Fiberglass Processed Parts are CNC-machined from high-performance glass fiber reinforced epoxy laminates to meet exact customer specifications. Available as milled, drilled, turned, engraved, or precision-cut components, these parts combine outstanding electrical insulation with excellent mechanical strength and low moisture absorption. G10 is preferred where high mechanical performance is required, while FR-4 adds flame-retardant properties for applications requiring enhanced fire safety. Every component can be produced in custom shapes, tight tolerances, and various thicknesses, making them suitable for complex insulating structures used in power equipment, industrial automation, transportation, and electronic systems.

Get a Quote

Product Parameters

Base Material

Woven E-glass fabric reinforced with epoxy resin

Material Grades

G10 / FR-4

Manufacturing Process

CNC Milling, Turning, Drilling, Routing, Grinding, Waterjet & Custom Machining

Operating Temperature

G10: Up to 130°C (Class B) • FR-4: Up to 130°C (Class B)

Dielectric Strength

≥20 kV/mm (Typical, material dependent)

Available Tolerance

Up to ±0.05 mm (depending on part geometry)

Product Advantages

High Precision Manufacturing

Produced with advanced CNC equipment to achieve complex geometries, repeatable accuracy, and consistent quality for custom-engineered components.

Excellent Mechanical Reliability

Offers high compressive strength, outstanding rigidity, and superior dimensional stability, maintaining performance even under continuous mechanical loading.

Flexible Custom Production

Supports OEM and ODM requirements with rapid prototyping, small production runs, and high-volume manufacturing based on drawings or CAD files.

Product Applications

High-Voltage Switchgear Insulation Components

Machined support plates, insulating barriers, spacer blocks, terminal supports, and mounting structures used inside medium- and high-voltage switchgear.
Transformer Structural Insulation Parts

Custom insulation frames, winding support blocks, clamping components, lead supports, and positioning elements for dry-type and oil-immersed transformers.
Industrial Motion Control & Servo Equipment

Precision insulating brackets, encoder mounting plates, motor isolation components, and electrical separation parts used in servo motors, automation equipment, and CNC machinery.
