G10 is one of the most commonly used glass-fiber epoxy laminates when a design calls for strong, stable, electrically insulating structural material.

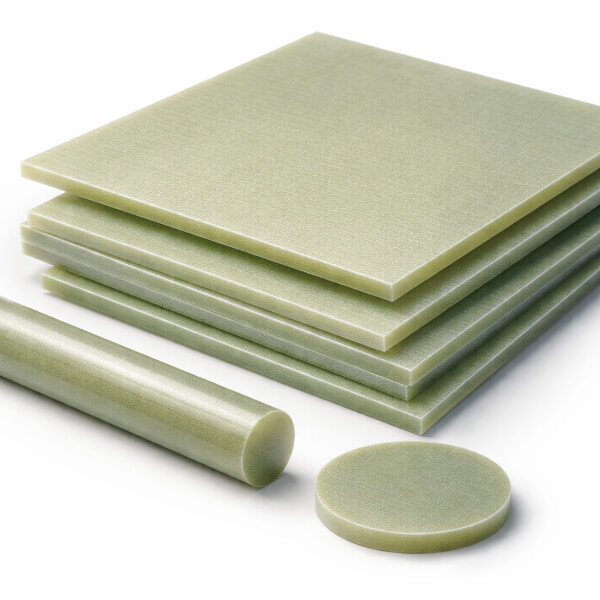

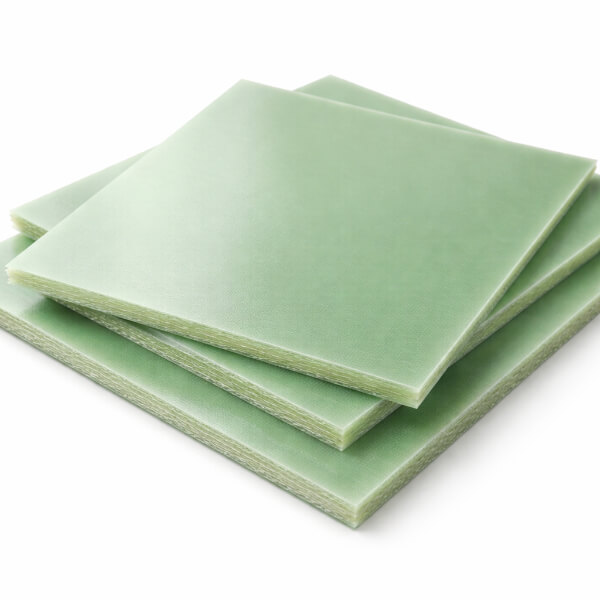

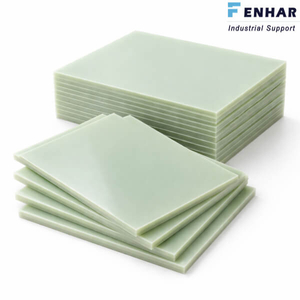

G10 is a dense laminate made from woven glass cloth saturated with an epoxy resin and consolidated under heat and pressure. The result is a stiff, load-bearing sheet that also acts as an effective electrical insulator. Engineers pick G10 when they need a combination of mechanical strength, dimensional stability, and reliable dielectric behavior in moderately hot or humid environments.
Structure: Woven glass cloth and epoxy matrix cured into a homogeneous laminate.
Balance of properties: High stiffness and strength with low moisture uptake compared to many plastics.
Thermal tolerance: Useful up to service temperatures in the low hundreds of degrees Celsius — check a supplier’s Tg and continuous-use rating for exact limits.
Electrical performance: High dielectric strength, good arc resistance and stable insulating behavior over a range of humidity and frequencies.
Appearance & handling: Usually supplied as flat sheets in standard mill sizes and a range of thicknesses; machinable with conventional tooling.
G10 sits between traditional thermosets and metal in stiffness-to-weight performance. It offers:
Strong tensile and flexural behaviour that supports load-bearing parts and spacers.
High compressive strength for support pads and structural blocks.
Good impact resistance for thicker sections, though thin, unsupported geometries can be brittle.
Design tips:
Avoid very thin cantilevers or unsupported thin webs if the part will see impact.
Use fillets and rounded transitions to reduce stress concentrations around holes and slots.
Account for anisotropy from the weave when you orient parts for bending or load paths.
G10 is valued where electrical isolation is essential:
It provides high breakdown strength per unit thickness — a reliable choice for insulating barriers, terminal blocks, and switchgear parts.
Dielectric constant and dissipation factor are frequency-dependent; specify the frequency of interest when asking for datasheet values.
Keep in mind moisture and thickness affect measured dielectric strength; require the supplier to state test conditions.
Epoxy-based laminates like G10 have a glass transition temperature (Tg) that governs usable temperature range. For parts exposed to continuous elevated temperature or cycling, confirm:
Tg from the supplier’s thermal analysis (DMA/TMA).
Continuous service temperature rating — typical industrial grades are suitable for many applications up to roughly the low 130 °C range, but exact limits vary by formulation.
If your application needs continuous service significantly above that range, consider higher-temperature laminates.
G10 resists oils, many hydrocarbons, and mild acids/alkalis, but the epoxy matrix can be attacked by aggressive oxidizers and certain solvents. For outdoor exposure:
Protect from UV if parts are exposed long-term — the resin can degrade with sunlight.
Where weathering matters, surface treatments or coatings are a low-cost safeguard.
Glass reinforcement makes G10 abrasive to cutting edges but the laminate machines predictably:
Use sharp carbide tooling, moderate feed rates, and steady speeds. Replace tools promptly to avoid fraying or overheating.
Drill with backing support to prevent breakout; peck drilling helps clear chips in deep holes.
Control dust with good extraction and wear appropriate respiratory protection — fine glass dust is hazardous.
Surface prep (light abrade, solvent clean) improves adhesive bonding performance if you intend to glue components.
When specifying test methods and acceptance criteria, reference recognized standards and flame testing where relevant. Consider naming the standards organization and the specific test you want in your purchase order, for example mechanical, dielectric, and moisture uptake tests. Use formal test references rather than vendor summaries so results are comparable across lots.
(Standards organizations to consider include NEMA, IEC and ASTM for test procedures, and independent safety markings like UL when flame performance is required.)
FR-4 — flame-retardant glass-epoxy typically used for circuit boards. Choose FR-4 where flame certification or UL94 ratings are mandatory.
G11 / high-Tg laminates — formulated for higher Tg and continuous temperature performance; pick these for sustained elevated-temperature duty.
Phenolics — may offer different cost points and thermal behavior; evaluate specific mechanical and electrical properties for your use.
G10 is often chosen for:
Insulating supports and spacers in power distribution assemblies.
Machine parts that require both strength and electrical isolation, such as operator panels, mounting blocks, and fixtures.
Tooling elements like solder pallets where dimensional stability and heat tolerance matter.
Q: Is G10 flame-retardant by default?
A: No. If flame resistance is required, specify a flame-retardant grade or an alternative such as FR-4 and require the relevant flame test reports.
Q: Can I glue parts made from G10?
A: Yes — but use appropriate adhesives and surface preparation (cleaning and light abrasion) and verify bond strength with a sample test.
Q: What machining protection is needed?
A: Local dust extraction and personal respiratory protection are essential because glass fiber dust is abrasive and harmful when inhaled.
