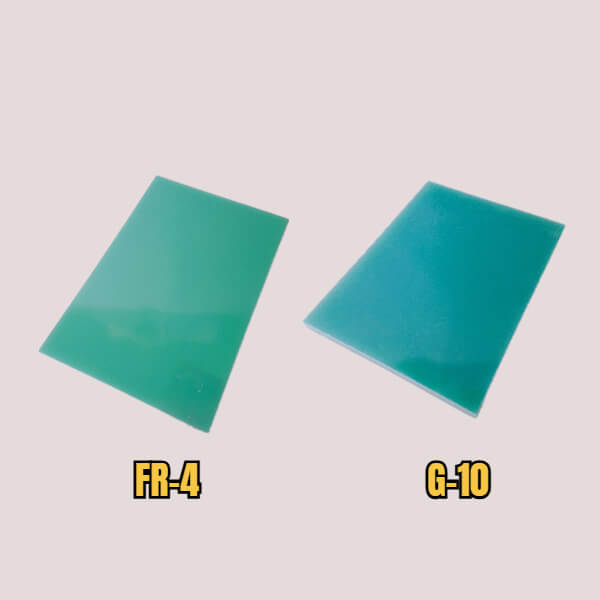

When engineers, fabricators, and designers choose a glass–epoxy laminate, they are balancing mechanical strength, electrical insulation, thermal endurance, and safety requirements. Two names that come up most often are G10 and FR-4. Although both start from woven fiberglass cloth and an epoxy resin, the choices behind resin chemistry, processing and intended end-use lead to different behavior in service. This article explains those differences in straightforward, application-focused language and provides the practical guidance you need to pick the right laminate for your project.
Think of both G10 and FR-4 as layered composites: woven glass fabric impregnated with epoxy and then consolidated under heat and pressure into rigid sheets. Where they diverge is in formulation and design intent. One is typically selected for its structural toughness and stability under stress; the other is optimized for use in electrical assemblies where flame performance and predictable dielectric properties are paramount.
Small changes in resin chemistry, curing schedule, and fabric weight produce outsized effects on material behavior:
Resin formulation: Some epoxy systems include additives to reduce flammability; others prioritize toughness or temperature resistance. These additives affect not only flame response but also moisture uptake, brittleness and aging characteristics.
Glass cloth type and layup: The weave, areal weight and orientation of the glass cloth determine stiffness, dimensional stability and how the part will respond to drilling, milling and stress concentrations.
Cure and consolidation: Temperature and pressure during manufacture set the crosslink density of the epoxy and therefore the glass transition temperature and long-term thermal stability.
Understanding these production levers helps you read datasheets intelligently: two laminates with the same name can behave differently if their fabric style or resin system differs.
Below are the attributes that most commonly matter in selection decisions, with practical implications:
One laminate family is engineered to meet flame-safety criteria commonly required for electronic equipment and many commercial products. If your regulatory environment or product certification requires a verified flame classification, confirm the supplier’s flame test results and certificates.
Some glass–epoxy laminates are formulated to withstand repeated mechanical shock, bearing loads and wear; others are tuned for dimensional precision and flatness. If you need structural parts — bushings, spacers, insulator blocks — prioritize grades and fabric styles that emphasize flexural strength and impact resistance.
Dielectric strength, leakage resistance and loss at operating frequencies are where laminates differ most for electrical designers. For radio-frequency or high-voltage use, check the dielectric constant and dissipation factor at the relevant frequency, not just “typical” numbers at 1 MHz.
Long-term use temperature and glass transition temperature determine whether a material will soften, creep or change dimensions under heat. For assemblies exposed to elevated temperatures or thermal cycling, choose a grade with a Tg and continuous-use temperature suited to the worst-case operating condition.
Even low water uptake can change electrical behavior and mechanical toughness. For humid, marine, or outdoor use, look for laminates with proven low moisture absorption and, when relevant, special treatments or resin chemistries that resist salt spray and UV.
Some laminates machine cleanly with low tool wear and predictable burr formation; others require special tooling, feeds or chip evacuation to avoid delamination. If your part will be CNC machined, routed, or precision-drilled, ask for supplier recommendations on tooling and feeds for the exact grade and thickness.
Structural insulators and mechanical parts: Choose grades that emphasize toughness and dimensional stability. These laminates are common in fixtures, mounting plates, insulating washers, and high-stress electrical insulators.
Printed circuit boards and electronics enclosures: Prioritize materials whose electrical performance and flame behavior align with your product safety and signal integrity requirements. PCB fabricators also prefer laminates optimized for drilling, lamination and plated-through-hole reliability.
High-voltage and power equipment: Look for laminates with excellent dielectric strength, low partial discharge tendencies, and reliable aging behavior under elevated voltage stress.
Hobbyist and crafts use (e.g., knife scales, artistic inlays): Tough, dimensionally stable laminates that machine well are favored; surface finish options matter here as much as mechanical strength.
When you order sheets or raw stock, ask for explicit documentation that matters to your product:
Flammability test reports (confirm the test method and results).
Dielectric and insulation test data at relevant thicknesses.
Mechanical test certificates (flexural and tensile values if your application loads parts).
Moisture absorption test results if humidity or immersion is likely.
Glass transition temperature (Tg) and continuous-use temperature to assess thermal suitability.
Traceability and batch information for critical applications (aerospace, medical, defense).
Don’t accept vague marketing phrases — insist on numerics and test standards.
Use this short checklist to narrow choices quickly:
What is the maximum continuous operating temperature? (add margin)
Is a specific flame rating required by regulation or market?
Will the part experience mechanical shock, bending, or wear?
Does the electrical performance need qualification at RF, HV or standard frequencies?
What environmental risks exist — humidity, chemicals, salt, UV?
How will the part be manufactured — CNC routing, punching, drilling, plated-through processes?
Are there weight, cost, or supply-chain constraints that push you toward one grade or another?
If you can answer these seven questions, you’ll be in a strong position to request the right datasheets and test certificates from suppliers.
Use sharp, rigid tooling and appropriate feeds to avoid delamination and excessive heat buildup.
Manage dust properly: glass–epoxy dust is an irritant and should be collected with suitable filtration and PPE.
When drilling, peck cycles and through-coolant or vacuum chip removal reduce clogging and improve hole quality.
Deburr with a light sanding or single-pass chamfer tool; aggressive deburring can crack edges.
If bonding or coating parts, test small samples first — surface energy and compatibility can vary by resin.
Laminates with flame-retardant additives and filled resins can complicate recycling. For projects where end-of-life and circularity are priorities, discuss recycled-content options, take-back programs or alternative materials with suppliers. In many industrial contexts, the priority remains durable service life and safety, but knowing disposal and regulatory impacts ahead of time avoids surprises.
“One name equals one property.” Not true — the same grade designation from different makers can have different fabric styles and performance.
“Flame rating is only about flame spread.” Flame-safety tests also capture heat release, ignition behavior and self-extinguishing tendencies; they’re broader than simple burn time.
“Thicker is always stronger.” Thickness changes stiffness and dielectric thickness, but the laminate’s intrinsic mechanical and electrical properties depend on resin, fabric and cure as much as on thickness.
Choosing between similar glass–epoxy laminates is less about brand labels and more about aligning reliable, test-backed material attributes with the realities of your product’s environment and manufacturing process. Ask for concrete test data, probe a supplier’s machining guidance, and select a grade whose documented performance fits your seven-point checklist. Careful upfront material selection reduces rework, meets safety commitments and ensures the finished product behaves predictably in the field.
Q: Should I always pick the electrically optimized grade for PCBs?
A: If you are fabricating PCBs, choose laminates that are specified for PCB processing — they incorporate resin and fabric choices that make drilling, plating and thermal cycling more predictable.
Q: Can I substitute one grade for another in production without testing?
A: No. Substitution without testing can change flame, dielectric and mechanical behavior. Always validate with small-run tests and request supplier data.
Q: Where do I get reliable datasheets?
A: Request them directly from manufacturers or their authorized distributors and ask for the batch-specific test report when the application is critical.
