G11-H Grade Glass Epoxy Tubes

G11 high-temperature Class H (180 °C) epoxy glass tube featuring continuous filament winding for uniform strength, excellent dielectric performance, and low moisture uptake, ideal for compact electrical insulation applications.
Availability:
Quantity:
telegram sharing button
snapchat sharing button
kakao sharing button
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product Details

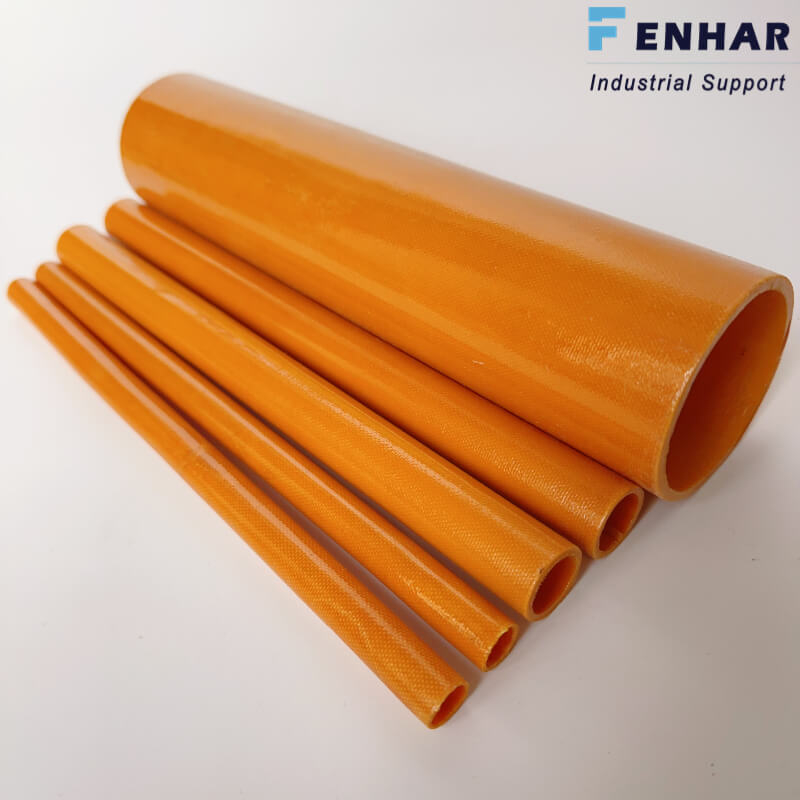

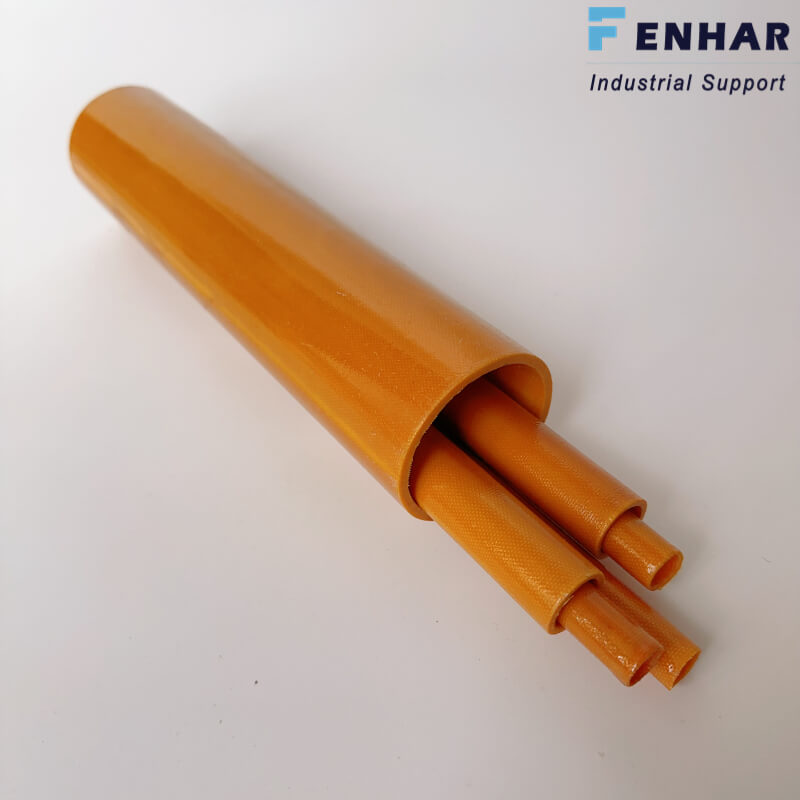

G11-H Grade Glass Epoxy Tubes
G11-H Tubes are produced by wet-winding E-glass rovings around a mandrel, impregnating them with a high-performance epoxy resin, and curing under controlled heat and pressure to form seamless tubes. This manufacturing process yields a laminate with exceptional flexural and tensile strengths, minimal dielectric loss, and resistance to chemical attack. The tubes maintain at least 50% of their room-temperature flexural strength when exposed to transformer oil at 90 ± 2 °C, ensuring reliable insulation in power distribution equipment. Available in wall thicknesses from 0.5 mm to 25 mm and customizable diameters, they can be tailored to precise engineering specifications.

Product Parameters

Standard
IEC61212-3
NEMALI-1
DIN 7735
MIL-I-24768
Density
1.9 g/cm³ (typical)
Water Absorption
≤ 0.5% (24 h immersion)
Tensile Strength
≥ 320 MPa
Maximum Operating Temperature
180 °C (Class H)
Dielectric Strength
≥ 14.5 kV/mm (perpendicular)

Product Advantages

Product Advantages Icon

Uniform Structural Integrity

Continuous filament winding ensures seamless, void-free tubes with consistent mechanical properties.

Product Advantages Icon 1

Low Dielectric Loss

Optimized epoxy formulation delivers minimal power loss in high-frequency and high-voltage applications.

Product Advantages Icon 2

Chemical and Oil Resistance

Maintains insulation performance in transformer oil and against common industrial chemicals.


Product Applications

FAQ

  • What is the minimum order quantity?
    Created with Sketch.
    形状 Created with Sketch.
    The minimum order quantity depends on the specific product you are interested in. For detailed information, please contact us directly via email or WhatsApp.
  • What is the price of this product?
    Created with Sketch.
    形状 Created with Sketch.
    The price of our products varies depending on the quantity, size, and specifications. For an accurate quote, please reach out to us via email or WhatsApp, and we'll provide you with the best options tailored to your needs.
  • What is the average delivery time?
    Created with Sketch.
    形状 Created with Sketch.
    Delivery times vary based on the quantity and specifications of the order. Typically, delivery can take anywhere from 3 to 30 days. For more precise information, please contact us directly via email or WhatsApp.
