As machines get smaller, quieter and more energy-conscious, designers are rethinking the materials they put into gearboxes. Metal gears remain the right choice for many heavy-duty and high-temperature transmissions, but polymer- and composite-based gears now deliver clear advantages across a wide range of applications — especially where noise, weight and corrosion resistance matter. Below I explain the most relevant composite options (including epoxy and phenolic systems), how those materials behave in gear service, and how to design and specify composite gears so they perform reliably.
Composite gears are chosen not because they are a universal replacement for steel, but because their material properties unlock system-level benefits:
Quieter operation: Many resin-based composites dissipate vibration energy instead of reflecting it, so gear meshing tends to produce a softer acoustic signature. In practice this reduces perceived noise and lowers transmitted vibration to housings and bearings.
Lower mass: Composites have much lower density than steel or bronze, which reduces rotating inertia — improving acceleration, lowering motor loads and helping battery-powered systems.
Environmental resilience: Unlike ferrous alloys, many composite systems are naturally resistant to moisture, salts and chemical exposure. This reduces fretting, pitting and the need for corrosion control.
Forming and integration: Molding and lamination allow designers to form complex geometries, add damping cores, or integrate mounting features without separate machining operations.
Cost and processing: For medium-volume production, molding or extrusion of composite gears can be more economical than machining gears from metal blanks.
Different composites bring different strengths. Here are materials engineers most often consider:
Epoxy-based glass laminates (e.g., FR-like materials and G10/G11 variants): These fiber-reinforced laminates combine good stiffness with outstanding electrical and thermal stability. They are useful where dimensional stability and shear strength are important.

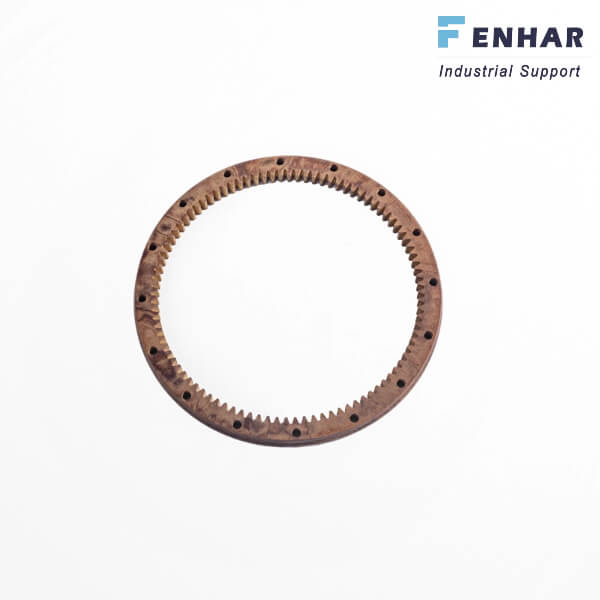

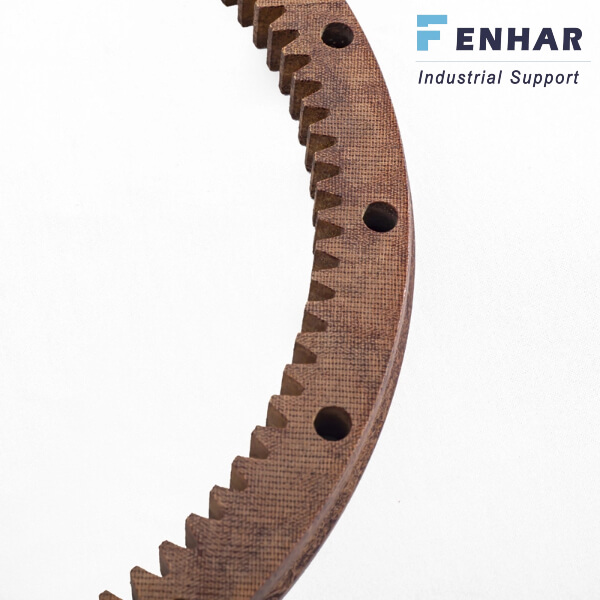

Phenolic laminates and molded phenolic (Bakelite-type) compounds: Phenolic systems offer excellent wear resistance, good compressive strength and low creep under moderate loads. They are widely used in electrical and industrial parts due to their thermal stability and flame resistance.
Thermoset polymers reinforced with glass or aramid fibers: These formulations (epoxy or phenolic matrices with fibers) can be tailored to trade stiffness for damping depending on fiber type and layup.
Melamine and polyester-based laminates: When cost and chemical resistance are priorities, melamine or polyester laminates can be suitable for lower-load gear trains.
High-performance polymers and composites (e.g., polyimide blends or filled PEEK compounds): For elevated-temperature or more demanding wear situations, advanced thermoplastics or filled thermosets extend the operating envelope — at a higher material cost.
When specifying a material, consider modulus, density, wear coefficient, moisture uptake, glass transition temperature (Tg) and compatibility with your operating environment.
Composite gears use a combination of intrinsic material behavior and design freedom to silence gearboxes:
Damping: Polymer matrices convert a portion of vibratory energy to heat. This reduces ringing and short-lived high-frequency impacts that produce noise.
Compliance: Slight elastic deformation at tooth contacts spreads impact loads over a longer time and broader area, smoothing engagement.
Surface characteristics: Many molded composites deliver tooth surfaces that break up harmonic content compared with mirror-like metal teeth, which helps reduce tonal noise.
Integrated damping features: With molding or lamination you can add thin viscoelastic layers, ribbed cores, or hybrid inserts (metal hubs with composite teeth) to target specific vibration modes.
These mechanisms combine to deliver a perceptible drop in acoustic energy from gear engagement. For product design, this often translates into improved user comfort, fewer noise complaints, and less transmitted vibration to other components.
Choosing the right process and design details is key to getting the promised benefits:
Molding and near-net shape methods: Compression molding, injection molding (for thermoplastics), and transfer molding (for some thermosets) are efficient for making complex tooth geometries with little post-machining.
Laminated, machined blanks: For glass- or phenolic-laminated materials, sheets can be stacked and machined to generate gears with tailored fiber orientations.
Hybrid designs: Bonding or mechanically fastening a thin sheet of metal to a composite body (or vice versa) can provide a high-strength bore or mounting interface while keeping composite teeth for noise control.
Additives and fillers: Solid lubricants (graphite, PTFE) and wear-resistant fillers can be compounded into the matrix to improve scuff resistance without external lubrication.
Profile optimization: Micro-geometry tweaks — e.g., addendum modification, crowning or asymmetric profiles — can be easier to implement in molded parts and are effective at reducing edge impacts and noise.
Composite gears are especially well-matched to:
Electric vehicles and light EV drivetrains: Reduced mass and lower audible whine at low loads are attractive for e-mobility systems.
Aerospace and avionics actuation: Weight and acoustic performance are critical in many aircraft subsystems.
Robotics and automation: Quiet, low-inertia gears improve positional accuracy and reduce motor sizing requirements.
Marine and chemical-handling equipment: Corrosion resistance and reduced lubrication needs simplify maintenance in unforgiving environments.
Consumer appliances and HVAC: Quieter operation and lower cost for moderate-load, high-cycle applications.
No material is perfect. Consider these constraints:
Load and temperature: Under very high contact stresses or elevated temperatures near the resin’s Tg, composites can creep or strip. Use high-Tg resins or hybrid designs for these environments.
Precision and repeatability: Tight gear accuracy classes (for example used in certain transmissions or precision machine tools) are still the domain of ground or hobbed metal gears. Composites are improving, but verify runout and profile tolerances in prototype parts.
Wear and surface fatigue: Composites can generate more wear debris in some pairings. Selecting compatible mating materials and surface finishes, and—if possible—using solid-lubricant fillers or thin external lubrication can mitigate wear.
Moisture and dimensional change: Some resins absorb moisture and swell. Choose low-absorption phenolics or glass-reinforced epoxies when dimensional stability is critical.
A practical approach is to run a targeted validation matrix: thermal cycling, contact fatigue testing, wear trials against intended mating materials, and acoustic testing at representative speeds and loads.
When you specify a composite gear, include these items:
Operating torque and peak loads (including shock loads)
Operating temperature range and required Tg margin
Speed (RPM) and duty cycle (continuous vs intermittent)
Environmental exposure (chemicals, UV, seawater)
Mating material (what the gear meshes against)
Desired service life and maintenance intervals
Dimensional tolerances and balance requirements
Noise or vibration targets (dBA targets, if available)
Manufacturing volume (prototype, low, medium, high) which affects process choice
Including these in tender documents reduces iteration and speeds qualification.
Acoustic measurements: Test gears in a representative housing and measure airborne and structure-borne noise across the full speed/torque envelope.
Contact pattern and wear trials: Run continuous cycles at representative loads and inspect tooth surfaces for pitting, wear, or delamination.
Thermal and humidity cycling: Verify dimensional stability and mechanical retention after environmental exposure.
Endurance and shock tests: Include peak shock events to ensure gears survive non-ideal operating conditions.
Composite gears are not a one-size-fits-all replacement for metal, but they are an increasingly practical choice when quieter operation, lighter assemblies and environmental resistance are priorities. By pairing the right resin system (epoxy, phenolic, melamine, or advanced thermoplastic) with thoughtful design — hybrid interfaces where needed, optimized tooth profiles, and proper validation testing — engineers can deliver gear solutions that reduce noise, improve system efficiency and lower life-cycle maintenance.
