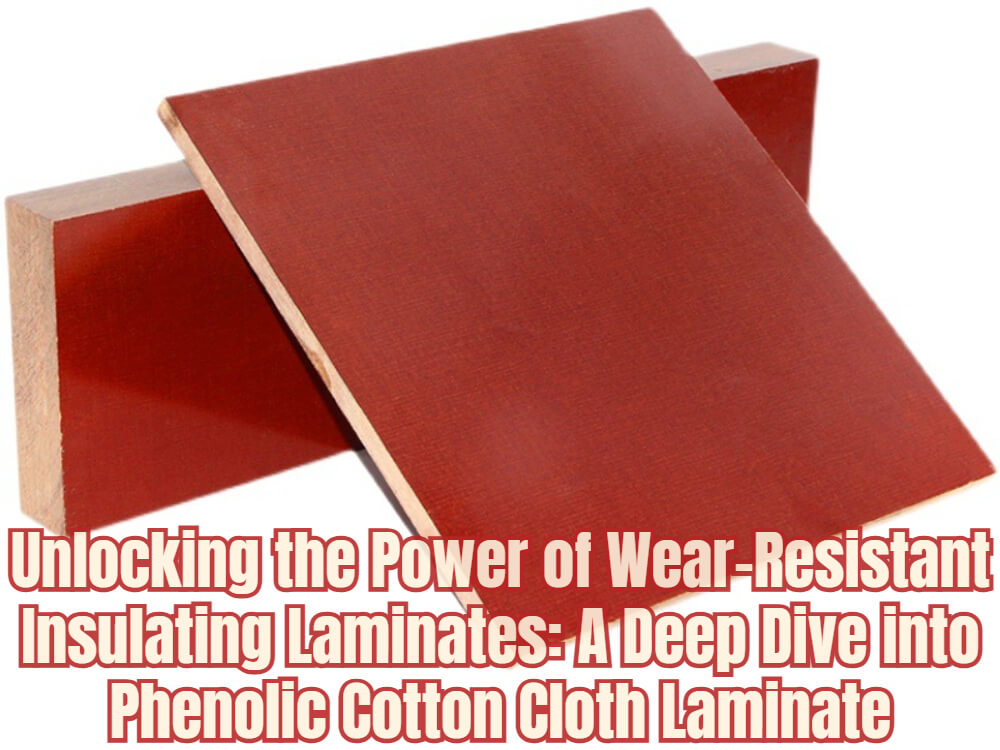

Unlocking the Power of Wear-Resistant Insulating Laminates: A Deep Dive into Phenolic Cotton Cloth Laminate

Introduction

In today’s high-performance industries—from semiconductor fabrication to automotive engineering—choosing the right material can make or break product reliability. Wear-resistant materials not only extend service life but also safeguard system stability and user safety. Among these, insulating laminates combine electrical dielectric strength with mechanical toughness, offering an optimal balance for demanding environments. This article explores the landscape of wear-resistant materials, highlights key insulating laminates, and provides an in-depth look at the versatile phenolic cotton cloth laminate.

1. Overview of Wear-Resistant Materials

Wear resistance describes a material’s ability to withstand surface degradation under repeated friction, impact, or sliding. Broadly, wear-resistant materials fall into five categories:

1. Metals & Alloys

• Examples: Tool steels (e.g., H13), tungsten carbide (WC-Co)

• Strengths: Exceptional hardness, high-temperature tolerance

• Common Uses: Cutting tools, heavy‐duty bearings, mining equipment liners

2. Ceramics & Hard Oxides

• Examples: Alumina (Al₂O₃), silicon carbide (SiC)

• Strengths: Superior hardness, chemical inertness, high‐temperature stability

• Common Uses: Nozzles, pump seals, furnace components

3. Engineering Plastics

• Examples: PTFE, UHMWPE, PEEK, nylon

• Strengths: Low friction coefficients, lightweight, corrosion resistance

• Common Uses: Bearings, bushings, conveyor guides, seals

4. Laminated Composites

• Examples: Glass-epoxy (FR-4/G-10), phenolic cotton cloth (Textolite), silicone-glass (G-7)

• Strengths: Tunable mechanical and electrical properties, machinability

• Common Uses: Electrical insulation, structural components, wear pads

5. Surface Treatments & Coatings

• Examples: Thermal spray ceramic coatings, polymer powder coatings

• Strengths: Localized protection, repairability

• Common Uses: Rolling mill rolls, slideways, scraper blades

2. Insulating Laminates: Bridging Electrical and Mechanical Demands

Insulating laminates are engineered stacks of fabric plies (glass, cotton, aramid) impregnated with resin (epoxy, phenolic, polyester) under heat and pressure. Their layered architecture delivers:

• High Dielectric Strength

• Controlled Thermal Expansion

• Excellent Mechanical Rigidity

• Customizable Thickness and Machinability

Fenhar’s portfolio includes a suite of such laminates:

• FR-4 / G-10 (Epoxy-glass): Standard PCB substrates and structural parts

• G-11 (High-temperature epoxy-glass): Stable above 150 °C

• G-7 (Silicone-glass): Superior heat and arc resistance

• GPO-3 (Polyester-glass): Flame-retardant, hydrolysis-resistant

• Textolite (Phenolic cotton cloth): Classic phenolic laminate with exceptional wear resistance

• Bakelite® (Phenolic paper): Self-extinguishing, cost-effective

• Copper-Clad Laminates: PCB fabrication and EMI shielding

• Mica Tape: High-voltage, fire-proof insulation

These materials excel where both electrical isolation and surface durability are paramount.

3. Phenolic Cotton Cloth Laminate: The Wear-Resistant Insulation Champion

3.1 Composition & Manufacture

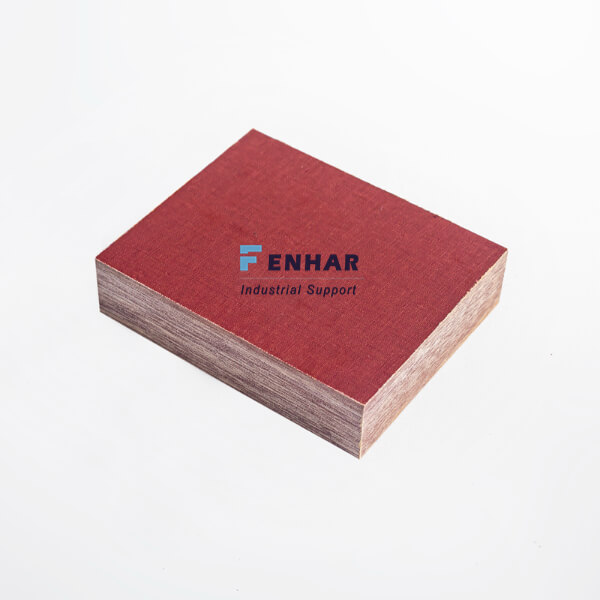

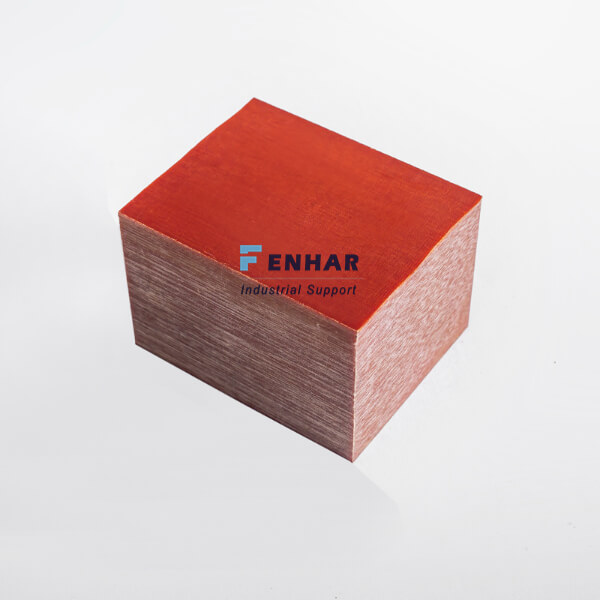

Phenolic cotton cloth laminate—often marketed as Textolite—consists of alternating layers of woven cotton (or aramid) fabric and phenolic resin. Under high heat and pressure, these layers cure into a homogenous, dense composite.

3.2 Key Performance Attributes

• Exceptional Wear Resistance

• High surface hardness resists scratching and abrasion

• Low wear rate under sliding and oscillatory motion

• Robust Mechanical Strength

• High flexural and compressive strength

• Excellent impact toughness

• Superior Electrical Insulation

• Dielectric strength up to 25 kV/mm

• Surface resistivity ≥10⊃1;⁴ Ω

• Wide Operating Temperature

• Continuous use from –40 °C to +120 °C

• Short-term peaks to +140 °C

• Chemical & Environmental Stability

• Resistant to oils, fuels, mild acids, and alkalis

• Low moisture uptake preserves dielectric properties

3.3 Why Phenolic Cotton Cloth Excels

Phenolic cotton cloth unites the toughness of cotton fabric with the rigidity of phenolic resin. The fabric layers create a “brick-and-mortar” microstructure that arrests crack propagation, while the phenolic matrix ensures dimensional stability. Together, they form a surface that slides smoothly against metal counterfaces without rapid degradation.

4. Real-World Applications

1. Electrical & Power Equipment

• Transformer Spacers & Barriers: Prevent tracking and withstand mechanical stress

• Switchgear Insulation: Isolate live parts while resisting contact wear during assembly

2. Mechanical Transmission Components

• Gears & Bushings: Low-wear operation in unlubricated or dusty environments

• Bearing Cages: Maintain clearances under dynamic loads

3. Fluid Handling & Valve Systems

• Pump Wear Rings & Shaft Sleeves: Shield rotating shafts from abrasive media

• Valve Seats & Guides: Combine sealing with abrasion resistance

4. Industrial Machinery Liners

• Chutes & Hoppers: Protect surfaces conveying abrasive powders or pellets

• Sliding Guides: Provide low-friction, self-lubricating motion

5. Transportation & Heavy Equipment

• Rail Bearing Blocks: Resist impact and sand/dust abrasion

• Track Chain Liners: Extend service life under harsh off-road conditions

Conclusion

Wear resistance and electrical insulation need not be mutually exclusive. Phenolic cotton cloth laminate exemplifies how composite engineering can deliver both mechanical durability and high dielectric performance. Whether safeguarding semiconductor tools from particulate generation or ensuring the reliable operation of heavy-duty bearings, this material stands out as an industrial workhorse. By understanding its structure and application spectrum, engineers can make informed choices that optimize longevity, safety, and cost efficiency.
