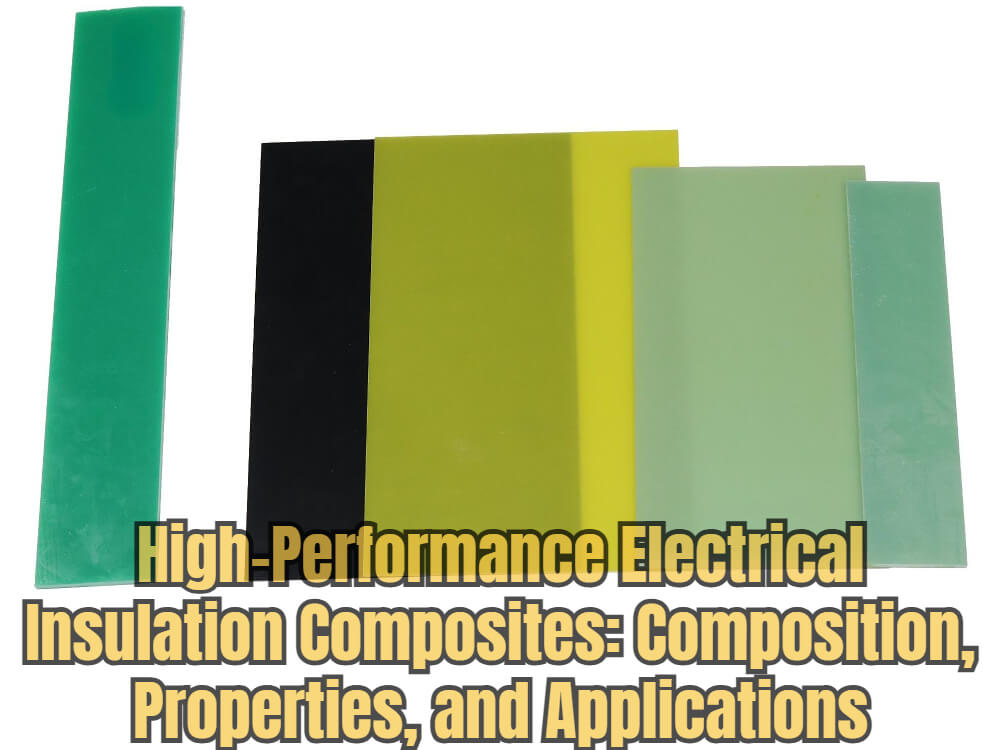

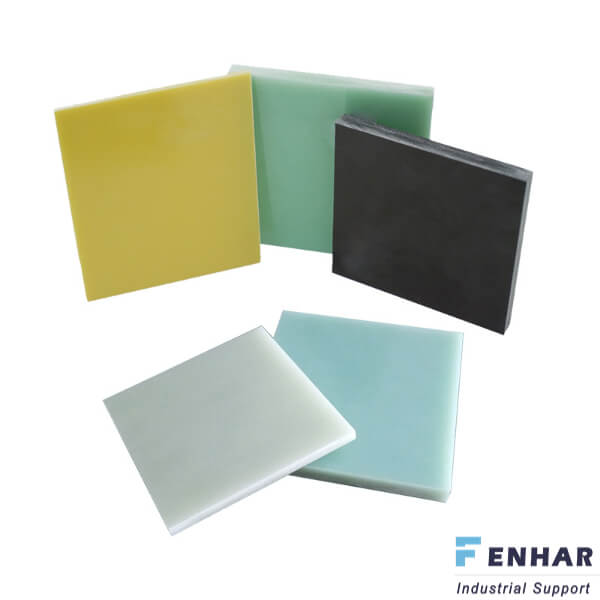

Electrical insulation composites are engineered materials that combine multiple components—typically polymer matrices and reinforcing fibers—to deliver outstanding electrical, mechanical, and environmental performance. As demand grows for lighter, more durable, and higher-voltage solutions in power transmission, distribution, and electronics, these composites have emerged as the material of choice over traditional ceramics and metals. This article explores the composition, key properties, primary applications, and emerging trends in electrical insulation composites.

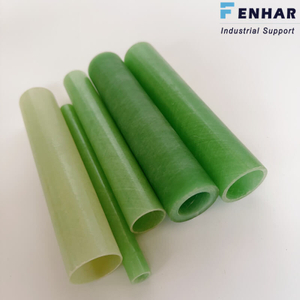

Function: Provides the backbone of mechanical strength, resisting tensile, bending, and compressive loads.
Benefits: Tensile strength often exceeds 60 MPa; offers low moisture absorption and minimal dimensional change.
Matrix Materials: Epoxy resins, polyester resins, or polyimide systems tailored for temperature range and chemical resistance.
Silicone Rubber Sheath: Commonly used for outdoor insulators due to its hydrophobic surface, UV resistance, and flexibility.
Design Purpose: Increase creepage distance to suppress surface leakage currents in polluted or wet conditions.
Geometry: Concentric sheds or skirts molded in silicone or composite blends for optimal water runoff.
Role: Secure mechanical attachment to conductors or structural supports.
Materials: Stainless steel or aluminum alloys, often with corrosion-resistant coatings.
Electrical insulation composites routinely withstand electrical stresses of 20 kV/mm or higher, preventing flashovers and allowing for compact designs in high-voltage systems.
Fiberglass reinforcement provides superior tensile and flexural strength compared to porcelain or glass insulators, enabling thinner profiles and reduced weight—up to 90% lighter than ceramic alternatives.
Operating temperature envelopes range from −50 °C to +150 °C depending on resin formulation. Advanced formulations maintain mechanical integrity and insulation resistance under repeated thermal cycling.
UV and Ozone Resistance: Silicone housings resist degradation from ultraviolet light and ozone exposure.
Hydrophobicity: Surface design prevents continuous water films, reducing leakage current and voltage stress under wet conditions.
Chemical Resistance: Composite matrices can be tailored to resist acids, alkalis, and industrial pollutants.
With minimal aging and corrosion, these composites offer service lifetimes exceeding 30 years with negligible maintenance, lowering total cost of ownership for utilities and industrial users.
Composite insulators serve as suspension, pin-type, and post insulators on overhead lines and substations, balancing mechanical load and electrical clearance requirements in compact form factors.
Station post insulators, bushings, and barrier components leverage composite advantages for reliable operation under load-switching and fault-current conditions.
Lightweight composite insulators reduce rail infrastructure weight and simplify installation, while withstanding vibration and weather extremes in traction power networks.

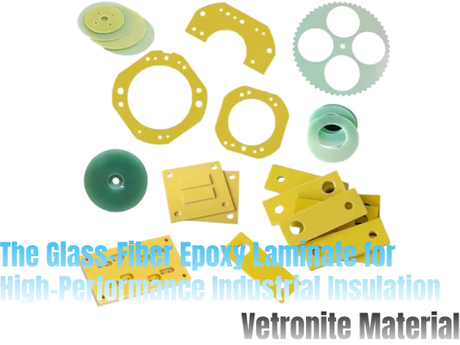

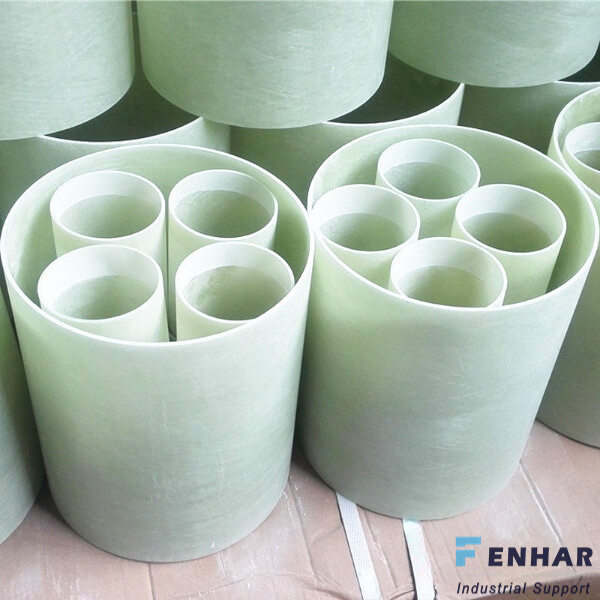

In electronics manufacturing, composite laminates such as FR-4 (epoxy-glass) provide both insulation and mechanical support on printed circuit boards, balancing dielectric performance with manufacturability.
Cryogenic pumps, oil-and-gas seals, and high-temperature furnace components exploit tailored composite systems (e.g., polyimide-glass laminates) for extreme-environment reliability.
Thermally Conductive Insulation: Incorporation of graphite, boron nitride, or aluminum nitride fillers enhances heat dissipation in power electronics without compromising dielectric strength.
Nano-Enhanced Matrices: Silica and clay nanofillers improve barrier properties against moisture ingress and tracking resistance, extending service life in polluted environments.
Smart Sensor Integration: Embedding fiber-optic or capacitive sensors within composite rods enables real-time monitoring of temperature, strain, and partial discharge activity.
Recyclable Resin Systems: Development of thermoplastic-based composites aims to improve end-of-life recyclability while maintaining high performance.
Electrical insulation composites marry the electrical and mechanical demands of modern power and electronic systems into versatile, lightweight, and durable solutions. By precisely engineering each component—from the fiberglass-epoxy core to the silicone rubber housing—manufacturers deliver materials that outperform traditional insulators in strength, weather resistance, and lifecycle cost. Continued innovation in thermal management, sensor embedding, and sustainable resin chemistry promises to extend their benefits into future smart grid and advanced electronics domains.
