Selecting the right insulation material for power-generation equipment hinges on matching thermal class, dielectric performance, mechanical strength, moisture resistance, and fabrication tolerances to specific rotor and stator locations. This guide profiles ten leading laminate and paper insulations—spanning Classes B to H—provides their key properties in a comprehensive table, and outlines precision fabrication, quality assurance, and outage-management best practices to maximize generator reliability and uptime.
Material | Standard / Spec | Class (°C) | Typical Uses |
NEMA G-10 (Glass-Epoxy) | NEMA LI-1 / IEC EPGC 201 | 130 °C | Rotor/sub-slot blocking, stator wedges, slot liners |
NEMA G-11 (Glass-Epoxy) | NEMA IM 60000 / IEC EPGC 203 | 155 °C | High-temp blocking, retaining-ring insulation |
IEC EPGC 308 (G-12) | IEC 60893-2 EPGC 308 | 180 °C | Class H rotor/stator parts, extreme-temp slots |
FR-4 (Glass-Epoxy) | NEMA LI-1 / IEC EPGC 202 | 140 °C | General structural insulator, PCBs, stator supports |
NEMA GPO-1 (Glass-Polyester) | NEMA LI-1 / UPGM 201 | 155 °C | Economical rotor blocking, slot fillers |
UPGM 205 (Glass-Polyester) | IEC 60893-2 UPGM 205 | 155 °C | Transformer components, coil blocking, end-winding |
Canvas Phenolic | Black Canvas Phenolic | 125 °C | Low-cost wedges, side packing, basic fillers |
Nomex® 410 (Aramid Paper) | DuPont Nomex® 410 | 200 °C | Formable tapes, turn-to-turn insulation |
Vetronite® G-11 (HPL) | EN 45545-2 / IEC 60893 | 180 °C | End-winding barriers, arc-resistant slot liners |
| Semiconductive Polyester（Epoxy） | IEC UPGM 206 | 155 °C | Slot fillers with semi-conductive properties |
Tolerances: CNC machining to ±0.005″ (0.13 mm) prototype and ±0.002″ (0.05 mm) production tolerances minimizes vibration and ensures proper wedge pressure.
Rewind Kits: Complete kits include turn-to-turn tapes, slot liners (U-, L-, Step-, Clubfoot), axial/radial blocking, rotor shoes, and temporary blocking assemblies. Custom forming for retaining-ring insulation and bore-copper liners complements shell fit-ups.
Planning: Begin outage planning up to 12 months ahead to secure long-lead laminates, schedule reverse-engineering sessions, and coordinate specialist crews.
In-Process Inspections: Dimensional checks, dielectric testing (∥ and ⟂), CTI verification, and moisture absorption assessments (<0.25 %) guard against field failures.
Logistics: Just-in-time delivery of prefabricated kits and on-site tool support (rotor stands, coupling shoes, blocking forms) reduces total downtime and aligns with critical path schedules.

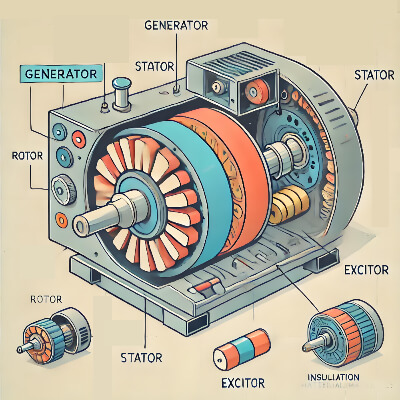

Turbine Generators: At 3,600 RPM, centrifugal forces exceed 5 G—Class H materials (EPGC 308, Vetronite® G-11) maintain dielectric strength under extreme stress and temperature. Semi-conductive fillers and spring-loaded ripple inserts optimize field alignment.
Hydro Generators: Moisture resilience demands low-absorption laminates (EPGC 308, Nomex® 410). Pole collars and V-blocks crafted from G-10/G-11 withstand repetitive load cycles while composite basket rings control axial displacement.
Wind Generators: Flexible papers (Nomex® 410), adhesive-backed laminates (GPO-1), and high-pressure Vetronite® slot barriers resist arc-tracking in offshore environments, extending maintenance intervals.
By leveraging this enriched material matrix, precision machining, and robust QA/outage workflows, generator solutions service teams can dramatically reduce maintenance costs, minimize unplanned downtime, and deliver reliable, high-efficiency power across turbine, hydro, and wind platforms.
