In high‑voltage transformers, switchgear, and power distribution equipment, electrical insulation materials must endure not only electrical stress but also mechanical loads. Flexural strength—the capacity of an insulating laminate or composite to resist bending—underpins both reliability and lifespan. When insulation components crack or deform under bending loads, their dielectric integrity can be compromised, risking partial discharge, arc faults, or catastrophic failures. This article delves into the fundamentals of flexural strength in electrical insulation materials, outlines standardized testing methods, and offers strategies to optimize bending resistance for enhanced performance.
Electrical insulators are often subjected to mechanical forces during installation, thermal cycling, or vibration in service. Key reasons flexural strength is critical include:
Structural Integrity under Load: Busbar supports and spacer bars rely on insulation plates that must resist bending without cracking.
Dielectric Safety: A bend‑induced microcrack can create localized electric field intensification, triggering partial discharge.
Long‑Term Durability: Repeated thermal expansion and mechanical vibration demand that insulators flex within safe limits to avoid fatigue.
Optimizing flexural strength ensures that insulating parts maintain geometry, prevent air gaps, and sustain uniform dielectric properties throughout their service life.
Two complementary parameters govern bending behavior:
| Property | Definition | Unit |
| Flexural Strength | Maximum bending stress before material failure under load | MPa or psi |
| Flexural Modulus | Slope of the stress–strain curve in the elastic bending region; indicates stiffness | MPa or psi |
Flexural Strength pinpoints the peak load capacity before cracking or fracture.
Flexural Modulus reflects the rigidity of the insulation—higher modulus means less deflection under operational stresses.
In insulation design, a balance is struck: high stiffness to maintain shape, yet sufficient toughness to resist crack propagation.
Electrical insulation employs a variety of thermoset laminates and composites, each offering distinct flexural characteristics:
Epoxy Glass (FR‑4): Widely used in printed circuit boards and terminal strips, FR‑4 typically exhibits flexural strength around 300–350 MPa and a modulus of 15–18 GPa. Its blend of electrical stability and mechanical robustness makes it a workhorse in medium‑voltage applications.
Phenolic Sheets (PFCC Series): Crafted from phenolic resin reinforced with cellulose or cotton fabric, these grades range from 80 MPa (paper‑based) up to 200 MPa (fabric‑based) in flexural strength, with moduli between 5 and 10 GPa. They excel in switchgear barriers and insulating spacers.
Silicone Glass (G‑10/11): With flexural strengths exceeding 400 MPa and moduli near 20 GPa, silicone‑based laminates provide high moisture resistance, ideal for humid or outdoor installations.
Melamine Glass: Offering moderate flexural strength (150–250 MPa) but superior flame resistance, melamine laminates serve in fuse blocks and connector housings where fire safety is paramount.
Selecting the right material hinges on matching flexural properties to mechanical loads, ambient conditions, and electrical stress levels.

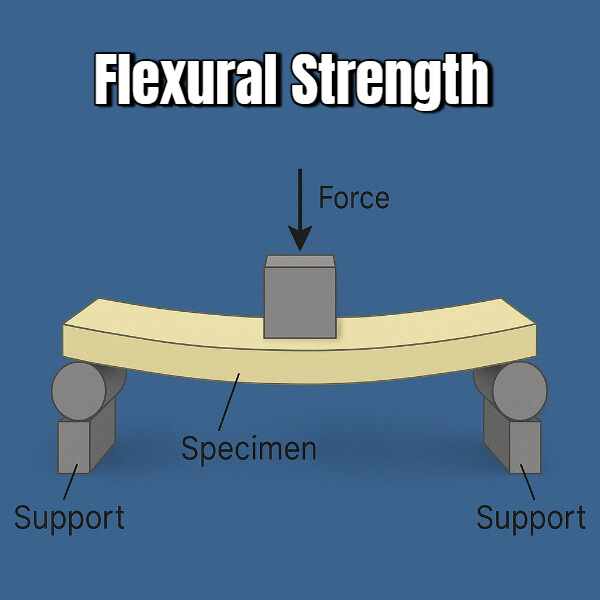

To quantify bending resistance, laboratories rely on ASTM and IEC protocols, most commonly the 3‑point and 4‑point bending tests.
Specimen Preparation: Cut bars of standard width (e.g., 12.7 mm) and thickness (e.g., 3 mm) from the laminate.

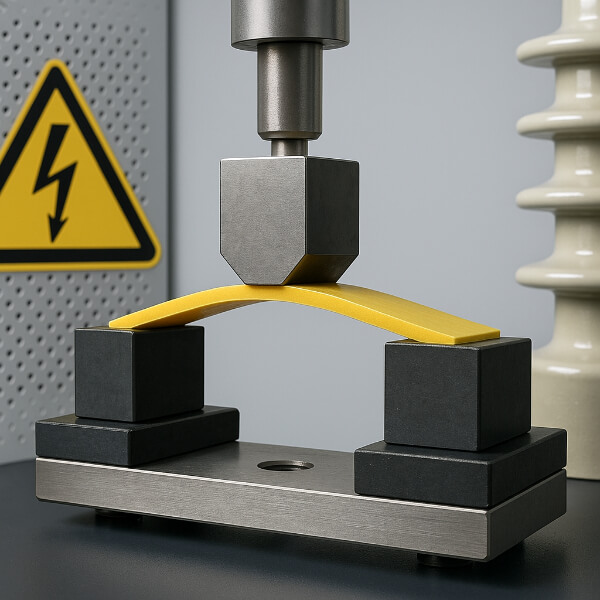

Test Setup: Support the bar on two rollers separated by a known span (usually 16 × thickness).
Loading: Apply force at mid‑span at a controlled rate (1–5 mm/min) until fracture.
Calculation:
where F is peak load, L is support span, b and d are bar width and thickness.
Despite its simplicity, the 3‑point test concentrates stress beneath the loading nose, potentially underestimating performance in materials with non‑uniform properties.
Support and Loading: Two outer supports and two inner loading noses distribute bending moment evenly across the central section.
Advantage: More uniform stress region reduces the influence of surface defects, offering a truer measure for non‑homogeneous or fiber‑reinforced laminates.
Calculation:
(with different span conventions based on inner/outer distances).
Both methods require precise alignment, calibrated fixtures, and controlled environmental conditions—temperature and humidity can alter resin toughness and skew results.
Several variables shape bending performance:
Fiber Orientation: Unidirectional glass fibers aligned with the bending axis dramatically boost strength and modulus.
Resin Chemistry: Toughened epoxies with rubber modifiers resist cracking more effectively than brittle phenolics.
Thickness and Span Ratio: Thicker specimens or shorter spans tend to exhibit higher absolute flexural strength but may mask interlaminar weaknesses.
Manufacturing Quality: Voids, resin-rich pockets, or uneven curing introduce stress concentrators that precipitate early failures.
Implementing strict quality control—void fraction measurement, ultrasonic inspection, and process monitoring—yields laminates with consistent flexural properties.
To elevate flexural strength without compromising other properties, engineers can:
Optimize Fiber Volume Fraction: Increasing glass content up to ~70 % by volume maximizes stiffness and strength.
Incorporate Nano‑Fillers: Nanoclay or silica particles dispersed in resin improve toughness and retard crack growth.
Hybrid Laminate Architectures: Combining glass and aramid layers can synergize high stiffness with excellent impact resistance.
Post‑Cure Thermal Treatment: Extended high‑temperature curing reduces residual stresses and increases crosslink density, bolstering flexural performance.
These tactics must be validated through iterative testing to ensure electrical and thermal properties remain within specification.
For electrical insulation materials, flexural strength is not merely a mechanical curiosity—it’s a critical parameter that safeguards dielectric integrity under bending loads. By understanding testing methodologies, material influences, and optimization strategies, designers and manufacturers can deliver insulating components that withstand mechanical abuse, environmental stress, and the rigors of service. A systematic approach to measuring and enhancing flexural performance ensures that transformers, switchgear, and power systems operate reliably for decades.
