Optimizing Glass Transition Temperature TG Detection in Glass‑Fiber Composites: DSC and DMA Research

Introduction

Determining the glass transition temperature (T<sub>g</sub>) of polymer‑matrix composites is vital for predicting service performance, especially in glass‑fiber‑reinforced systems used in aerospace, automotive, and electronic applications. Accurate T<sub>g</sub> measurement ensures that a composite maintains structural integrity and dimensional stability under thermal stress. Among the suite of thermal analysis methods, Differential Scanning Calorimetry (DSC) and Dynamic Mechanical Analysis (DMA) stand out for their reliability, sensitivity, and widespread adoption.

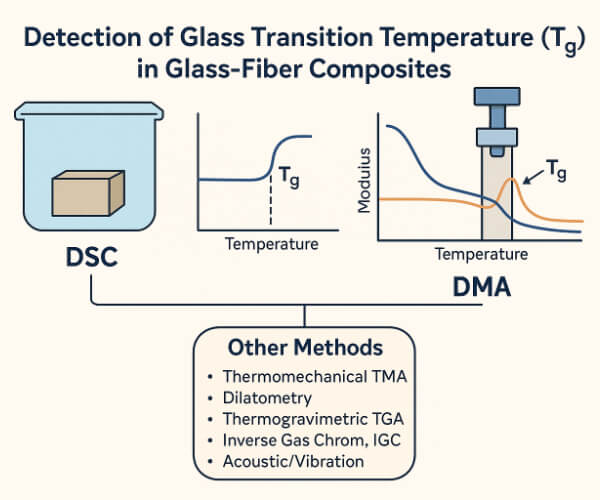

Optimizing Glass Transition Temperature TG Detection in Glass‑Fiber Composites

1. Differential Scanning Calorimetry (DSC)

1.1 Overview and Principle

DSC quantifies the heat flow difference between a sample and an inert reference while both undergo a controlled temperature program. At T<sub>g</sub>, the polymer’s amorphous regions absorb additional energy to increase segmental mobility—observed as a step‑change (inflection) in the heat‑flow curve.

1.2 Methodology for Glass‑Fiber Composites

  1. Sample Preparation:

    • Finely grind a small piece of glass‑fiber laminate to 5–10 mg.

    • Ensure uniform thickness (< 0.5 mm) to minimize thermal lag.

  2. Experimental Settings:

    • Heating rate: 10 °C/min (typical range 5–20 °C/min).

    • Atmosphere: Nitrogen purge to prevent oxidative artifacts.

    • Temperature range: –20 °C to 200 °C (adjust based on polymer system).

  3. Data Analysis:

    • Identify T<sub>g</sub> at the midpoint of the heat‑capacity step (standardized by ISO 11357‑2 and ASTM E1356).

1.3 Glass‑Fiber Composite Example

A woven glass‑fiber epoxy composite was tested under DSC to evaluate the impact of silane coupling agents:

Composite Variant T<sub>g</sub> (Midpoint) ΔC<sub>p</sub> (J/g·°C)
Baseline Epoxy/Glass‑Fiber 96.5 °C 0.20
+ 1 wt% Amino‑Silane 103.2 °C 0.23
+ 2 wt% Glycidyl‑Silane 101.0 °C 0.22

Insight: The addition of 1 wt% amino‑silane raised T<sub>g</sub> by nearly 7 °C, highlighting improved matrix–fiber bonding and restricted chain mobility.

1.4 Advantages and Limitations

  • Advantages:

    • Rapid screening of multiple formulations.

    • Minimal sample size and straightforward preparation.

    • Widely accepted standards and protocols.

  • Limitations:

    • Broad or subtle transitions may be obscured in highly filled or heterogeneous composites.

    • Results can vary with heating rate and baseline correction.

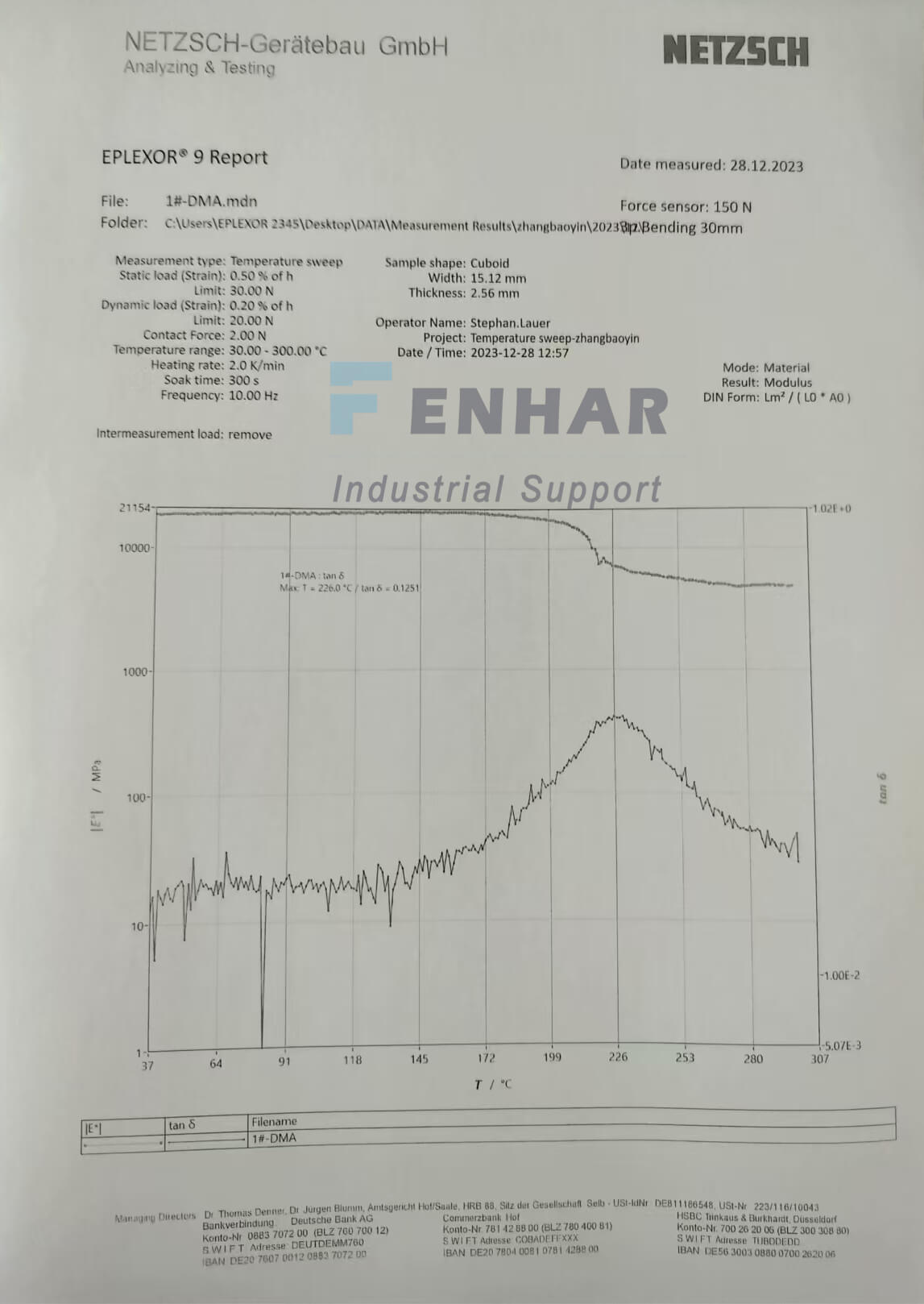

2. Dynamic Mechanical Analysis (DMA)

2.1 Overview and Principle

DMA applies a small, oscillatory mechanical load (stress or strain) to a specimen as temperature varies. It simultaneously measures:

  • Storage Modulus (E′): Elastic stiffness component.

  • Loss Modulus (E″): Viscous energy dissipation.

  • Damping Factor (tan δ = E″/E′): Peak tan δ indicates T<sub>g</sub>.

2.2 Methodology for Glass‑Fiber Composites

  1. Specimen Preparation:

    • Machine a bar of ~50 × 10 × 3 mm from the cured composite.

    • Ensure parallel faces and consistent cross‑section to avoid stress concentrations.

  2. Experimental Settings:

    • Mode: 3‑point bending (ASTM D7028).

    • Heating rate: 3 °C/min under nitrogen.

    • Frequency: 1 Hz (optional sweeps from 0.1 to 10 Hz to study rate dependence).

  3. Data Interpretation:

    • T<sub>g</sub> identified at the peak of the tan δ curve or the onset of a sharp drop in E′.

2.3 Glass‑Fiber Composite Example

In a DMA assessment of the same epoxy/glass‑fiber system:

Composite Variant tan δ Peak (T<sub>g</sub>) E′ at 25 °C (GPa) tan δ Max
Baseline Epoxy/Glass‑Fiber 99.8 °C 8.0 0.044
+ 1 wt% Amino‑Silane 106.5 °C 8.6 0.047
+ 2 wt% Glycidyl‑Silane 104.2 °C 8.4 0.045

Insight: DMA results show T<sub>g</sub> values approximately 2–3 °C higher than DSC, reflecting the additional mechanical energy required to mobilize polymer segments under oscillatory load.

2.4 Advantages and Limitations

  • Advantages:

    • High sensitivity to multiple relaxation processes, even in filled composites.

    • Provides comprehensive viscoelastic profiles across temperature and frequency.

    • Distinguishes subtle effects of fiber treatments and nano‑additives.

  • Limitations:

    • Requires precise machining and fixture alignment to prevent artifacts.

    • Higher equipment and setup costs compared to DSC.

Glass Transition Temperature TG Detection

3. Brief Overview of Other Complementary Methods

While DSC and DMA are primary for Tg detection, additional methods can offer value in specific contexts:

  • Thermomechanical Analysis (TMA): Measures dimensional changes under load to derive the coefficient of thermal expansion (CTE) and detect T<sub>g</sub> via slope change.

  • Dilatometry: Records volume or length change with high resolution; useful for bulk expansion analysis in thick composites.

  • Thermogravimetric Analysis (TGA): Tracks mass loss to establish safe operating ranges before polymer degradation—often used as a precursor to DSC/DMA.

  • Inverse Gas Chromatography (IGC): Identifies transitions in powders and fibers by monitoring retention volumes of probe gases across temperature.

  • Digital Image Correlation (DIC): Provides full‑field strain mapping on composite surfaces to visualize local Tg‑induced expansion.

  • Acoustic/Vibration Methods: Non‑destructive monitoring of stiffness changes in large components, applicable for in‑situ field inspections.


4. Recommended Testing Workflow

  1. TGA Pre‑Screening: Identify decomposition onset to set safe temperature limits.

  2. DSC Screening: Perform rapid T<sub>g</sub> screening across formulations and additives.

  3. DMA Confirmation: Precisely locate T<sub>g</sub> (tan δ peak), assess storage/loss moduli, and study frequency effects.

  4. Supplemental Techniques: Apply TMA or DIC when dimensional precision or localized behavior is critical.

  5. Data Correlation: Compare and correlate DSC and DMA results to validate T<sub>g</sub> and refine composite processing parameters.


Conclusion

For glass‑fiber‑reinforced composites, DSC and DMA form a powerful, complementary pair for detecting the glass transition temperature (T<sub>g</sub>). DSC offers rapid, standardized screening, while DMA delivers detailed viscoelastic insights under mechanical load. By integrating Fenhar’s proprietary DSC and DMA findings—and leveraging complementary techniques such as TGA, TMA, and DIC—material scientists and engineers can optimize fiber treatments, matrix formulations, and processing conditions to achieve target T<sub>g</sub> values and ensure peak composite performance in demanding applications.
