FR-4 glass epoxy laminate is a mainstay in electronics and industrial engineering because it combines reliable electrical insulation with robust mechanical performance and inherent flame resistance. This article explains what FR-4 delivers in real assemblies, compares common variants, and gives practical advice for selecting, machining, and preserving FR-4 material in production environments.

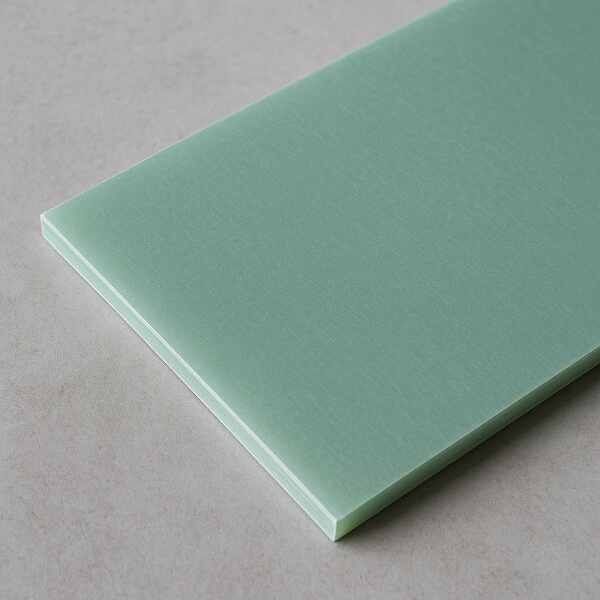

At its core, FR-4 is a layered composite made from woven glass reinforcement bonded with an epoxy resin system that includes flame-retardant chemistry. The resulting laminate is lightweight, dimensionally stable, and performs consistently across a wide range of temperatures and humidities. That combination makes FR-4 especially attractive for printed circuit boards (PCBs), insulating parts, fixtures, and mechanically demanding housings where both electrical isolation and structural integrity matter.
Rather than a list of raw lab numbers, here are the material traits that matter on the factory floor and in service:
Fire behavior: Engineered to resist ignition and self-extinguish, so it slows flame propagation in assemblies and helps meet safety rules for electronic products.
Electrical insulation: Stable dielectric properties make FR-4 a reliable substrate for signal routing and power circuitry.
Mechanical stability: The glass content gives good stiffness, strength, and dimensional control; parts keep their shape through machining, lamination, and during board assembly.
Moisture resistance: Low absorption helps preserve electrical performance in humid environments.
Thermal limits: Standard FR-4 handles most commercial operating temperatures; higher glass transition (Tg) variants are available for elevated-temperature applications.
Machinability: It machines well with conventional tools, though attention to cutter geometry and feed/clearance improves finish and tool life.
FR-4 is supplied as prepreg, pressed sheet, tubes, and finished machined parts. Each form has pros and cons:
Prepreg: Ideal when you need custom layups or molded shapes; offers the best control for multilayer laminates.

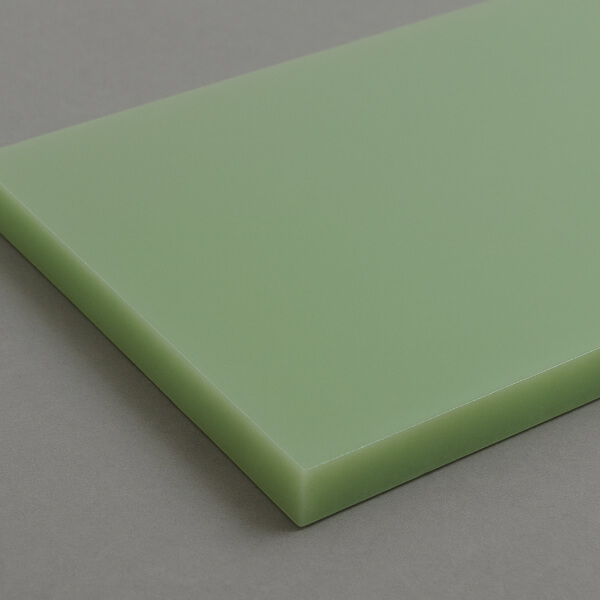

Pressed sheet: Cost-effective for flat panels and standard board manufacturing.
Wound tube: Useful for cylindrical insulating parts.
Finished parts: Good for low-volume or rapid prototyping when you want to skip in-house machining.
Thickness range and panel sizes vary by supplier; specify the tolerances, panel flatness, and edge quality you need when ordering.
FR-4 is not a single product but a family. The most important selection criteria:
Standard FR-4: General-purpose balance of cost, electrical performance, and flame resistance — good for most consumer and light industrial electronics.
High-TG FR-4: Choose when assemblies will see sustained high temperatures (lead-free reflow, high-power modules, or near-engine components).
Low-loss grades: For high-frequency RF work, select FR-4 variants formulated for reduced dielectric loss and tighter impedance control.
Halogen-free options: Available for assemblies that must meet environmental or end-of-life disposal restrictions.
When in doubt, match the laminate’s temperature index and Tg to your process temperatures, and specify dielectric loss if signal integrity is critical.
G-10 is the older glass-epoxy cousin; FR-4 evolved to incorporate flame-retardant chemistry. For most new electronic designs, FR-4 is preferred because it reduces fire risk while maintaining similar mechanical and electrical behavior. If an application historically used G-10, FR-4 is usually a safe modern substitute — but the reverse is not always true where fire performance is mandated.
Use cutters with a positive rake and slightly larger clearances to compensate for the laminate’s fibrous nature.
Prefer sharp, carbide tooling and appropriate feeds to avoid delamination or chipping at edges.
When routing PCBs or tight mechanical parts, consider cooling strategies (air blast, dust extraction) rather than liquid coolants that may affect resin curing or introduce contamination.
Deburr and seal exposed edges if parts will face weathering or abrasive wear.
FR-4 delivers long service life when used indoors and shielded from UV exposure. Prolonged sunlight weakens epoxy resins, so outdoor use usually requires protective coatings or alternative materials. Also consider chemical exposure: FR-4 resists many common solvents and fuels, but aggressive chemicals and strong oxidizers can degrade the matrix.
For applications with strict environmental requirements, specify halogen-free flame retardants and confirm supplier test data for smoke/toxicity and end-of-life handling.
Define the mechanical thickness and allowable tolerance.
State the required Tg (glass transition) or temperature index.
Specify electrical parameters such as dielectric constant and loss tangent if relevant.
Declare the flame rating and any environmental (halogen-free) constraints.
Request relevant material certificates and test reports (Tg, flammability, dielectric strength).
Ask about machining services or final part finishing if you don’t plan to machine in-house.
PCB cores and multilayer board substrates
Insulating standoffs, bushings, and spacers in electrical assemblies
Fixtures, jigs, and test benches where dimensional stability and electrical neutrality are needed
Structural parts inside enclosures that see modest mechanical load and benefit from flame retardance
Ignoring thermal budgets: Know your highest process temperature — reflow and wave soldering can edge close to a laminate’s performance limits. Use high-TG grades if needed.
Underestimating moisture: For outdoor or humid installations, specify low-absorption laminates or protective coatings.
Tooling mismatch: Use appropriate cutters and speeds; fiberglass abrasiveness shortens tool life if not accounted for.
FR-4 remains one of the most versatile and cost-effective composite laminates available for electronics and industrial uses. Its practical strengths are not just lab numbers — they translate to predictable manufacturing behavior, safer finished products, and long operational life when specified correctly. For any design, the key is to match the right FR-4 variant and supplier data to your thermal, electrical, and mechanical needs.
