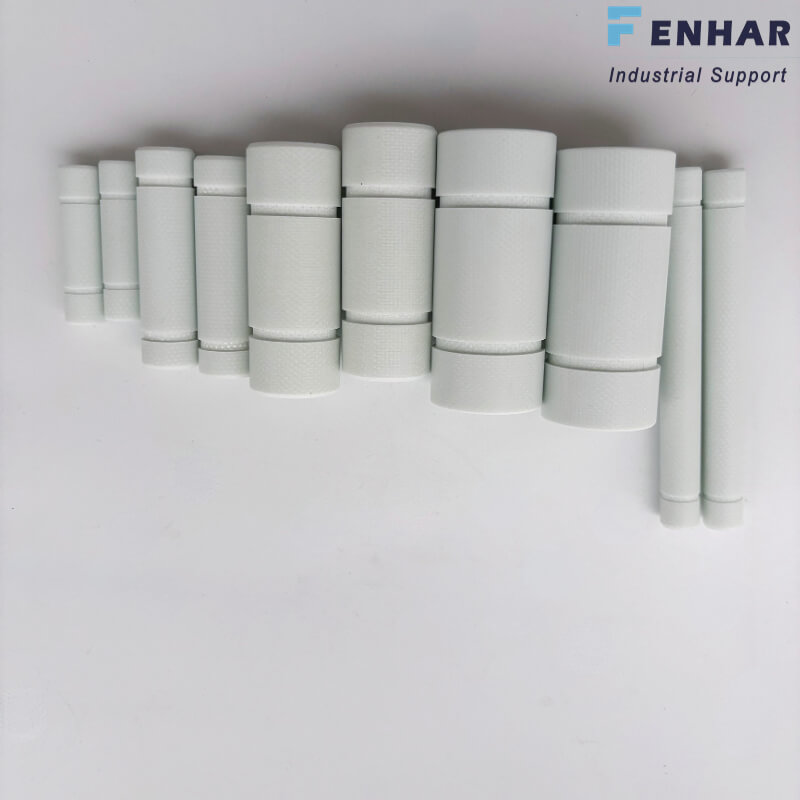

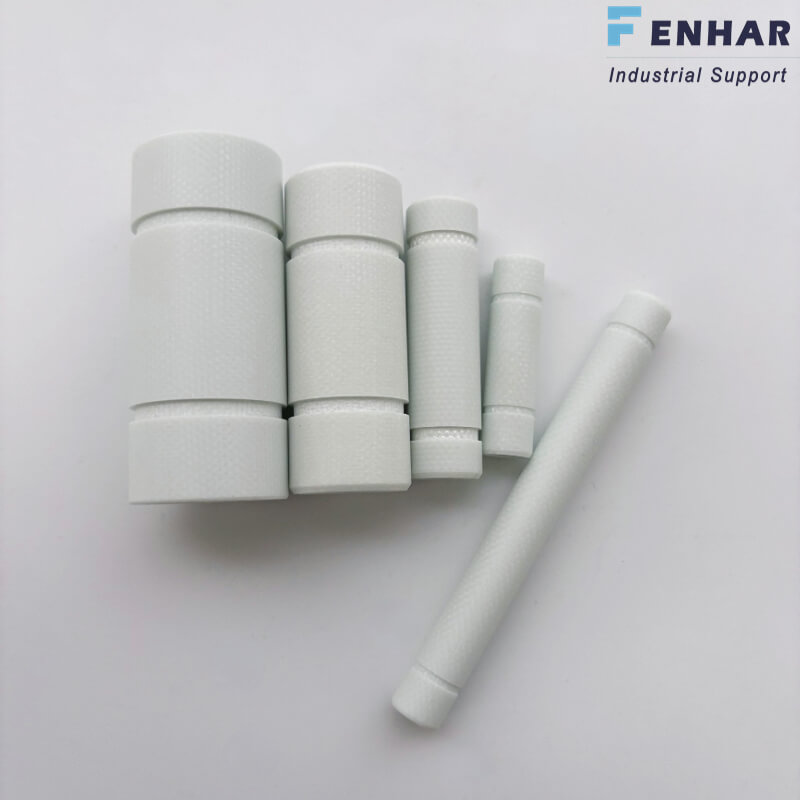

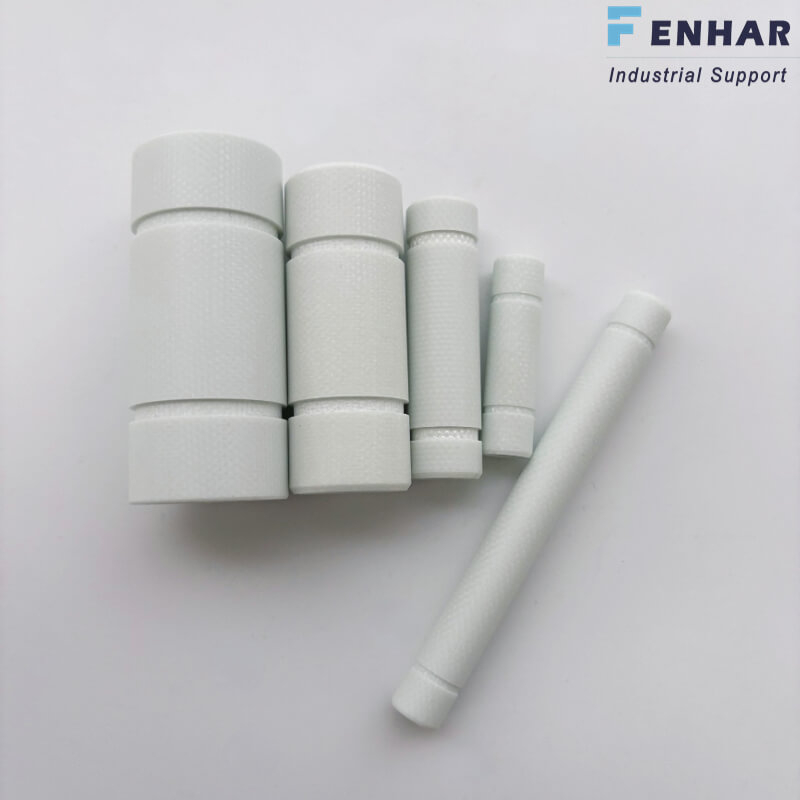

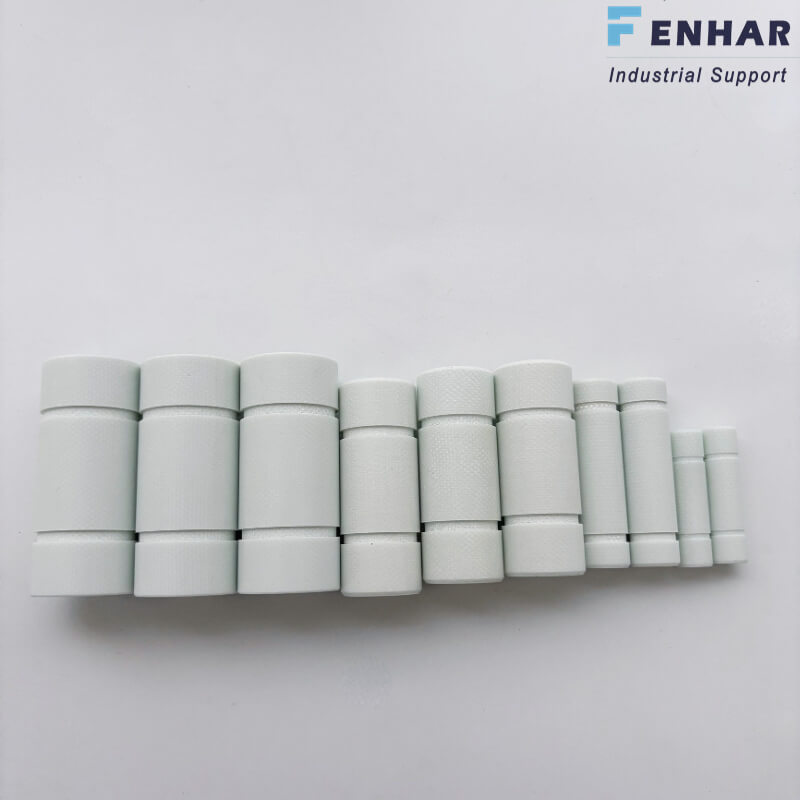

G-9 Melamine Glass Processing Tube Parts

Custom G-9 Melamine Glass Processing Tube Parts are precision-machined from melamine glass laminate tubes for applications requiring dependable electrical insulation, excellent arc resistance, and stable mechanical performance. Manufactured to customer drawings for demanding power and industrial equipment.

Quantity:
Availability:





Inquire Add to Basket

Product Details

G-9 Melamine Glass Processing Tube Parts are fabricated from high-strength melamine resin reinforced with woven glass fabric, offering an ideal balance of electrical insulation, arc resistance, and structural durability. Using precision CNC turning, drilling, milling, threading, and finishing processes, the tubes are transformed into custom insulating components with consistent dimensions and smooth surfaces. Compared with conventional epoxy-based materials, G-9 performs particularly well in applications exposed to electrical tracking and intermittent arc conditions. Parts can be produced in various diameters, wall thicknesses, and complex geometries to satisfy OEM requirements for switchgear, transformers, electrical assemblies, and heavy-duty industrial equipment.

Get a Quote

Product Parameters

Base Material

Melamine resin reinforced with woven glass fabric

Material Grade

G-9 (Melamine Glass Laminate Tube)

Manufacturing Process

CNC Turning, Drilling, Milling, Threading, Grooving & Precision Finishing

Thermal Class

Class B (130°C)

Electrical Property

Excellent arc resistance and high dielectric insulation

Custom Capability

Customized diameter, wall thickness, length, tolerances and machining according to drawings

Product Advantages

Superior Arc-Withstanding Capability

Specifically suited for components exposed to repeated electrical arcing or surface discharge, helping extend service life in demanding electrical systems.

Precision Tube Machining

Capable of producing threaded, stepped, slotted, grooved, and close-tolerance tubular components with excellent dimensional consistency.

Reliable Performance in Humid Environments

Maintains stable insulating properties and mechanical integrity under varying humidity and industrial operating conditions.

Product Applications

Switchgear Arc Barrier Bushings

Machined insulating tube parts used as arc-resistant bushings, insulating sleeves, and conductor supports inside medium- and high-voltage switchgear.
Transformer Lead Outlet Insulators

Custom tubular insulation components for conductor exit points, winding lead supports, and terminal isolation structures in distribution and power transformers.
Fuse and Circuit Protection Assemblies

Precision insulating tube parts used inside high-voltage fuse carriers, fuse mounting structures, and current-limiting protection devices where arc resistance is essential.

FAQ

What is the minimum order quantity?

The minimum order quantity depends on the specific product you are interested in. For detailed information, please contact us directly via email or WhatsApp.
What is the price of this product?

The price of our products varies depending on the quantity, size, and specifications. For an accurate quote, please reach out to us via email or WhatsApp, and we'll provide you with the best options tailored to your needs.
What is the average delivery time?

Delivery times vary based on the quantity and specifications of the order. Typically, delivery can take anywhere from 3 to 30 days. For more precise information, please contact us directly via email or WhatsApp.
