Every time a circuit breaker trips, a violent electric arc erupts between the contacts. Left uncontrolled, that arc melts metal, ignites gases, and destroys the device in milliseconds. The arc chute – a deceptively simple stack of insulating plates – is what stops that chaos cold.
But not all arc chutes are equal. The material you choose directly determines breaking capacity, service life, and safety margins. Over years of field work, I’ve seen the same mistakes repeated: engineers picking a “good enough” insulation grade, only to face premature tracking or mechanical cracking under load. Let’s cut through the marketing and look at what actually works.

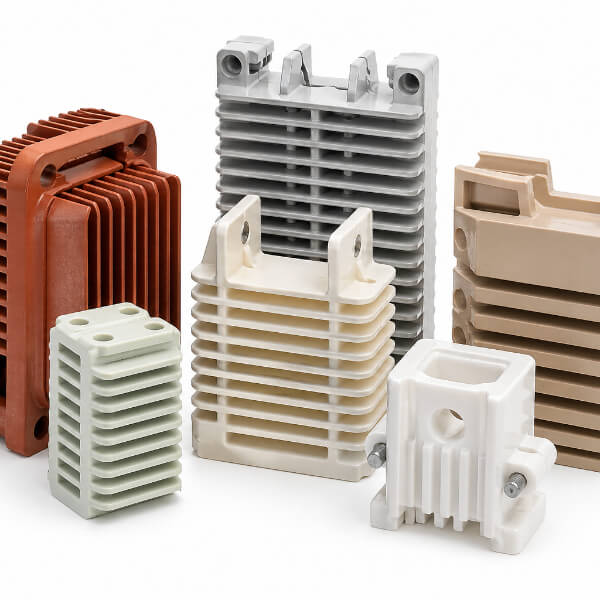

For most molded-case circuit breakers (MCCBs) and air circuit breakers (ACBs), Sheet Molding Compound (SMC) and Bulk Molding Compound (BMC) are the default choice – for good reason. These glass-fiber reinforced polyester composites strike a rare balance. They handle arc heat without catching fire, stay dimensionally stable across humidity swings, and survive the mechanical slam of contact opening.
What field experience teaches you: SMC outperforms older epoxy laminates (like 3240) in damp environments because it absorbs far less moisture. It’s easy to hot-press into complex shapes, which is why you’ll find it in everything from IEC frames to UL listed switchboards.
When your application demands exceptional resistance to tracking and surface arcing, melamine-glass laminates (grades like F831 or MFGC201) step in. With comparative tracking index (CTI) often exceeding 600V and arc resistance above 180 seconds, these materials shine in polluted environments – think cement plants, chemical yards, or outdoor enclosures.
The trade-off? Melamine is harder to machine than SMC, and it tends to be more brittle. But if your breaker sees frequent, low-current arcing (like motor starters or capacitor banks), the extra tracking resistance pays for itself many times over.
GPO-3 (also labeled UPGM203) is the unsung hero of custom arc chutes. It uses a non-woven glass mat impregnated with polyester resin, then compression molded. What makes it special is how easily it cuts. You can punch, drill, mill, or saw GPO-3 without edge chipping – a lifesaver for small-batch or retrofitted chutes.
Electrical properties are solidly in the V-0 flame class, and arc resistance approaches that of BMC. However, GPO-3 has slightly lower mechanical strength than SMC, so it’s less ideal for very high short-circuit currents where the magnetic forces can warp the plates.
Glass-epoxy composites like FR4, G10, G11, and the Chinese grade 3240 remain popular in medium-voltage switchgear. Their standout trait is mechanical rigidity: they stay flat under clamping pressure, and their dielectric strength stays stable even after absorbing some moisture (unlike phenolic or cheaper polyesters).
FR4 (flame-retardant epoxy) is particularly common in vacuum contactor chutes and retrofit kits. The catch? Epoxies are more expensive than BMC, and they require carbide tooling. But for voltages above 1000V, the combination of creepage distance tracking and bolt-hole strength makes them worth the extra cost.
When space is tight – think compact transfer switches, DC breakers, or aerospace-rated gear. Enter high-temperature engineering thermoplastics.
G-15 (glass-fabric reinforced polyimide thermoset laminate) : It carries a continuous operating temperature of 260°C (500°F) while maintaining excellent dimensional stability and machinability under prolonged heat exposure, making it a go-to for aerospace and defense arcs.
PEEK (polyether ether ketone) is the titanium of arc chutes – 260°C continuous, outstanding wear and radiation resistance, but expensive enough that you only use it where failure is not an option (medical imagers, mining drives).
For direct-current arcs or very high-voltage gear (traction, solar farms, substation backup), organic materials eventually fail. That’s when you turn to inorganic solutions.
Mica plates (HP5, HP8) – bonded with silicone resin – laugh at temperatures up to 1000°C. They don’t burn, don’t outgas, and resist arc tracking indefinitely. The downside: mica is soft and easily damaged by mechanical shock, so it’s usually sandwiched between metal splitters.
Engineering ceramics (alumina or cordierite) are the ultimate arc chute material. They survive repeated DC arc strikes that would turn plastic into conductive carbon residue. Ceramic is brittle and expensive to form, but for high-reliability DC breakers (subway third-rail, large battery banks), nothing else comes close.
A newer hybrid approach applies composite coatings – conductive particles in a high-temp binder – onto ferrous splitter plates. These coatings actually absorb arc energy through phase change or gasification, dramatically increasing interruption capacity without thickening the chute.
No single material wins every case. Use this quick rule of thumb:
Standard AC low-voltage (≤690V, industrial panels) → SMC or BMC. Best cost-to-performance ratio.
Polluted or high-tracking environments → Melamine or GPO-3 if machinability matters.
Medium voltage (1kV–38kV) → FR4 epoxy or GPO-3 for custom shapes.
High-temperature / compact DC breakers → PPS or PEEK (budget allowing).
Extreme duty (1000A+ DC, traction, smelters) → Ceramic or mica-reinforced chutes.
The arc chute is only as good as its integration. Proper venting, magnetic blowout coils, and correct contact alignment matter just as much as the material grade.
