When most people think of fibreglass‑reinforced plastics, they picture circuit boards or simple electrical housings. In reality, engineered thermoset composites – epoxy glass laminates (G10, G11, FR‑4), phenolic resins, and polyester glass‑mat materials (GPO‑3/UPGM‑203) – have become indispensable in some of the most unforgiving environments on the planet. They do not just isolate voltage; they contain arc flashes at 10 kV, support superconducting magnets near absolute zero, and keep high‑speed trains running safely through tunnels at 350 km/h.
Phenolic resin systems, reinforced with glass or cellulose fibres, have long been valued for their inherent flame retardancy, low smoke emission, and minimal toxic gas release. These properties are non‑negotiable in enclosed passenger environments. Today, phenolic composites are the default choice for interior fit‑outs in high‑speed trains, metros, and light‑rail vehicles.
Where you find them:
Floor panels, ceiling plenums, and sidewall cladding
Air‑conditioning ducting and diffusers
Seat shells and luggage racks
Fire‑resistant bulkheads that separate passenger areas from technical compartments
What makes them exceptional is their ability to maintain structural integrity even when exposed to direct flame. In recent European and Chinese rail projects, phenolic ducting has consistently passed the strictest hazard level (HL3) under EN 45545, the benchmark for rolling‑stock fire safety. Beyond passive protection, these materials contribute to weight reduction – a critical factor in lowering traction energy consumption. Some newer phenolic‑based sandwich panels replace metal sheets in under‑floor equipment bays, saving hundreds of kilograms per carriage without compromising impact resistance.

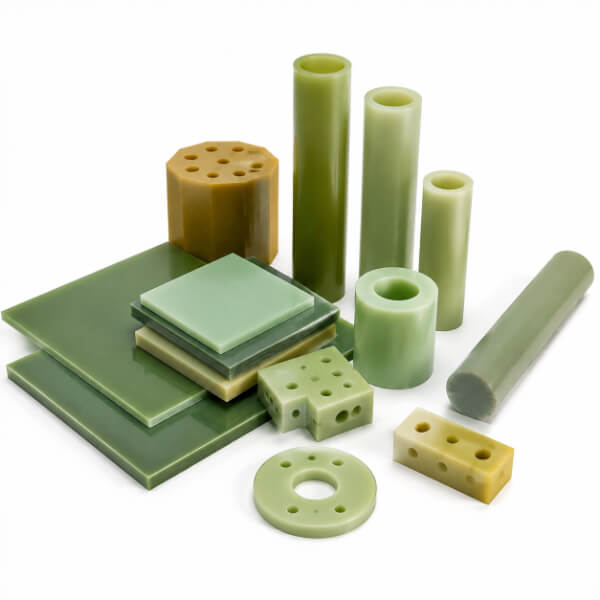

Epoxy‑impregnated fibreglass laminates are often associated with printed circuit boards, but their industrial‑grade versions (G10, G11, and flame‑retardant FR‑4) serve a far more rugged purpose in railway electrification.
Core rail applications:
Insulating supports and barrier plates in traction converters and auxiliary inverters
High‑voltage bushing sleeves for roof‑mounted switchgear
Composite insulators for overhead contact lines, especially in polluted or coastal areas where ceramic insulators would require frequent cleaning
Terminal blocks and connection brackets in wayside signalling cabinets
The key differentiator between grades is thermal endurance. G11 can sustain continuous operation at 180 °C, while G10 remains stable up to 150 °C – both well above the peak temperatures inside a crowded transformer compartment. Their low moisture absorption (below 0.3 % after 24‑hour immersion) ensures that insulation resistance does not plummet during rainy seasons. In magnetic levitation (maglev) pilot lines, specially formulated G10 variants have been used as structural spacers between superconducting coils, where they must endure cryogenic temperatures and intense neutron radiation without becoming brittle.

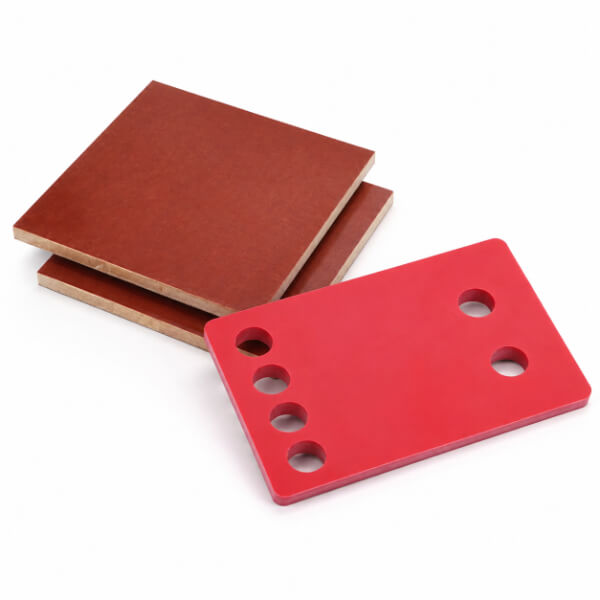

While phenolic and epoxy materials excel in mechanical strength and thermal stability, GPO‑3 – a glass‑mat reinforced polyester bulk moulding compound – occupies a unique niche: arc and tracking resistance. This material is deliberately engineered to withstand repeated surface discharges without carbonising, making it the first line of defence in circuit‑breaking equipment.
Where GPO‑3 is irreplaceable:
Arc‑chamber side plates and partition walls in moulded‑case circuit breakers
Phase barriers in medium‑voltage switchgear
Insulating covers for busbars in traction substations
Terminal shrouds and brush holders in traction motors
When a fault current is interrupted, the resulting electric arc can reach temperatures exceeding 10 000 °C. GPO‑3’s unique filler package ablates in a controlled manner, releasing non‑conductive gases that cool and extinguish the plasma. Its comparative tracking index (CTI) often exceeds 600 V, a figure that guarantees reliable performance in dusty or humid wayside environments. For rail operators, this translates into fewer nuisance tripping events and longer intervals between maintenance overhauls.
To appreciate the synergy, it helps to visualise a high‑speed train from roof to rail:
Overhead line (25 kV AC): FR‑4 and G10 rods form the core of composite long‑rod insulators that suspend the contact wire. Their hydrophobic silicone‑rubber sheds are moulded over the epoxy core, but the core itself must provide the tensile strength and dielectric backbone.
Roof‑mounted circuit breaker: GPO‑3 arc chambers sit directly below the vacuum interrupter, while G11 support pillars hold the entire assembly away from the earthed roof panel.
Passenger cabin: Phenolic floor panels rest on aluminium rails; fire‑resistant phenolic ducts distribute conditioned air. Even the toilet compartments use phenolic wall liners that can be wiped clean and resist cleaning agents.
Beneath the floor: Traction converters house multiple FR‑4 busbar supports that isolate heavy copper bars; G10 plates separate the cooling fans from sensitive control electronics.
Track side: GFRP (glass‑fibre reinforced polyester) cable trays and walkway gratings are gaining ground because they never rust and require zero painting – a hidden cost saver over the life of a line.
The same material families also surface in domains that may seem unrelated but share the common thread of high reliability under stress.
Special low‑viscosity G10 grades are machined into precision spacers for superconducting magnets used in tokamak reactors and synchrotron light sources. These components must remain dimensionally stable after millions of thermal cycles between cryogenic helium and room temperature, while resisting gamma and neutron fluence that would embrittle ordinary polymers.
FR‑4 is not just for PCBs – high‑quality, warp‑free panels serve as lapping carriers (sun gears) for wafer‑grinding machines. They do not contaminate the slurry and maintain flatness within micrometres, enabling the ultra‑smooth surfaces required for advanced chip lithography.
G10’s combination of stiffness, moisture resistance, and machinability has made it a cult favourite among custom knife makers for handle scales. Outdoor enthusiasts appreciate that a G10‑handled tool will not swell, crack, or rot after repeated immersion in saltwater – and it can be textured for a secure grip even with wet gloves.
Selecting the correct composite is never a one‑size‑fits‑all decision. The following parameters typically guide specification:
Continuous operating temperature – G11 > G10 > FR‑4 > phenolic > GPO‑3 (though GPO‑3 has the edge in arc performance).
Flammability – Phenolics and FR‑4 are inherently self‑extinguishing; G10 requires specific formulations to achieve V‑0 rating.
Mechanical load – For structural members under vibration, phenolic and GPO‑3 have good damping characteristics, whereas epoxy laminates are stiffer and transfer more vibration.
Environmental exposure – Outdoor use calls for UV‑stable variants; track‑side applications often demand hydrolysis‑resistant grades due to standing water.
Mandatory standards include:
EN 45545‑2 (fire behaviour of materials in railway vehicles)
TB/T 3237 (Chinese national standard for rolling‑stock composite materials)
UL 94 (flammability) and IEC 60112 (tracking index) for electrical components
ISO 22163 (railway quality management) for suppliers
The demand for lighter, safer, and more energy‑efficient trains is driving innovation in three directions:
Thermoplastic alternatives – While thermosets dominate today, high‑performance thermoplastics (e.g., PEEK, PEI) are being evaluated for their recyclability and faster processing cycles, though cost remains a barrier.
Smart composites – Embedded fibre‑optic sensors within epoxy laminates can monitor strain and temperature in real time, providing early warning for insulator degradation.
Bio‑based resins – Several manufacturers are piloting phenolic resins derived from lignin or cashew nutshell oil, aiming to reduce the carbon footprint without sacrificing fire performance.
In the fusion energy space, improved G10 formulations with higher radiation tolerance are being developed, potentially extending component lifetime in future DEMO‑class reactors from months to years.
G10, FR‑4, phenolic, and GPO‑3 may not carry glamorous names, but they quietly enable the safe passage of millions of passengers daily, the stable operation of national power grids, and the pursuit of fundamental physics. Their success lies not in a single outstanding property, but in a balanced combination – mechanical strength, electrical integrity, fire resistance, and environmental durability – that few other material classes can match. As rail networks expand and energy infrastructure ages, these thermoset composites will remain the silent partners, working where metals fail and ceramics crack.
