Materials that permanently harden during processing — thermosetting polymers — are engineered to deliver stable mechanical and electrical performance across wide temperature spans. Unlike re-moldable plastics, these materials cure into a fixed, three-dimensional network that resists creep, softening, and many environmental attacks. This article explains what happens to thermosets at very low and very high temperatures, how to pick the right resin system, and practical considerations for design, testing, and long-term service.
Thermosets cure through chemical reactions that create covalent crosslinks between polymer chains. This network architecture defines their fundamental thermal response:
At low temperatures, the network remains glassy and rigid. The material’s modulus increases and ductility decreases, so parts are stiffer but may be more brittle if not formulated for toughness.
At elevated temperatures, the network resists flow because covalent bonds do not simply unwind. Instead, thermosets typically undergo progressive property loss — e.g., reduced stiffness — and eventually thermal degradation when bond scission begins. The temperature where polymer mobility sharply increases (the glass transition temperature, Tg) is a practical limit for many applications.
Selecting a chemistry and cure schedule that match the expected service temperature range is therefore critical.
Epoxy systems: Widely used for structural strength and adhesion. By choosing different hardeners and fillers, Tg and thermal endurance can be tuned from moderate to very high. Epoxies also provide strong electrical insulation.
Phenolic resins: Known for thermal charring and flame resistance. They retain mechanical integrity at higher temperatures than many other thermosets and offer excellent chemical resistance.
Polyurethane thermosets: Offer flexibility control and toughness, useful when impact or vibration resistance at low temperatures is required. Some formulations maintain flexibility in cold climates.
Amino and bismaleimide systems: Used in demanding high-temperature applications where prolonged thermal stability is required, such as certain aerospace components.
Fillers (glass, mineral, carbon), reinforcements (fiberglass, aramid), and additives (flame retardants, plasticizers) allow engineers to balance stiffness, toughness, thermal expansion, and conductivity.
When designing for subzero conditions, pay attention to:
Brittle fracture risk: Lower temperatures reduce energy absorption. Toughening agents, elastomeric modifiers, or fiber reinforcements help prevent sudden cracking.
Thermal contraction: Differential shrinkage between thermoset parts and adjoining materials (metals, composites) can generate stresses — consider coefficient of thermal expansion (CTE) matching or compliant interface layers.
Electrical insulation stability: Low temperatures generally benefit dielectric properties, but condensation and ice formation can create surface tracking paths; proper sealing and coatings mitigate this.
Cryogenic compatibility: For extreme cold (below −150 °C), specialized formulations and testing protocols are necessary to verify retention of fracture toughness and dimensional stability.
Designing for heat exposure involves:
Glass transition and service temperature: Use Tg as a guide — sustained use close to or above Tg will alter mechanical behavior. For continuous high-temperature exposure, select resins with Tg well above the operating temperature.
Oxidative and hydrolytic degradation: Elevated temperature accelerates chemical breakdown. Antioxidants, UV stabilizers, and barrier coatings extend life in oxidative or humid conditions.
Creep and long-term deflection: Under load and heat, some thermosets exhibit time-dependent deformation. Reinforcements and proper section design reduce creep.
Fire behavior: Certain thermosets form char layers that protect underlying structure; flame-retardant additives further enhance performance where fire exposure is a concern.
Follow a simple decision flow:
Define the operating temperature range (min, max, transient peaks).
Identify mechanical requirements (load, stiffness, impact resistance).
List environmental exposures (chemicals, humidity, UV, salt spray).
Confirm electrical needs (dielectric strength, conductivity).
Set manufacturing constraints (molding method, cure time, tolerances).
Match resin family and reinforcement strategy to these inputs and iterate with prototype testing.
Cure control: Proper temperature and time during cure determines crosslink density and, therefore, thermal performance. Incomplete cures lower heat resistance.
Void management: Trapped air reduces mechanical and thermal performance — vacuum bagging, proper mold venting, or pressure molding improves quality.
Post-cure: Many systems benefit from a secondary elevated-temperature post-cure to optimize Tg and dimensional stability.
Inspection: Non-destructive testing (ultrasonic, X-ray for multilayer parts) detects internal defects; thermal and mechanical cycling verifies performance across the expected range.
Key test categories include:
Differential scanning calorimetry (DSC) to determine Tg and cure state.
Dynamic mechanical analysis (DMA) for temperature-dependent modulus and damping.
Tensile, flexural, and impact tests at representative temperatures.
Thermogravimetric analysis (TGA) to characterize decomposition onset.
Environmental aging (salt spray, humidity, UV, chemical immersion) and thermal cycling to simulate service life.
Adhering to relevant industry standards — aerospace, automotive, electrical — provides confidence in component certification.
Thermosets are challenging to recycle due to their irreversible network. Approaches to reduce environmental impact include:
Design for longevity to minimize replacement frequency.
Use of recyclable reinforcements and modular design to recover metals and non-polymeric parts.
Development of chemically recyclable or thermoset-like materials that allow depolymerization is an active research area.
Service temperature margin relative to Tg: ≥ 20–50 °C recommended.
Impact toughness at lowest service temperature verified experimentally.
CTE compatibility with mating materials.
Adequate fire and chemical resistance for the environment.
Manufacturing route supports required tolerances and throughput.

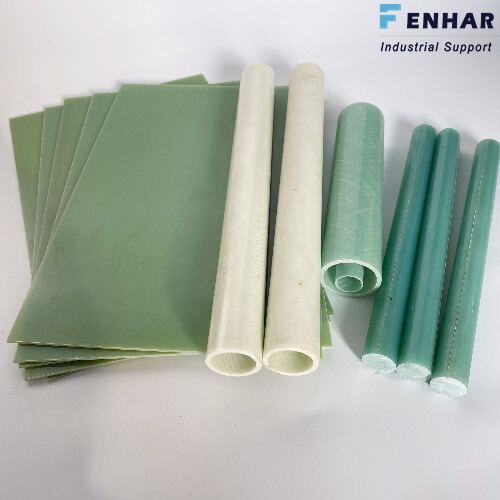

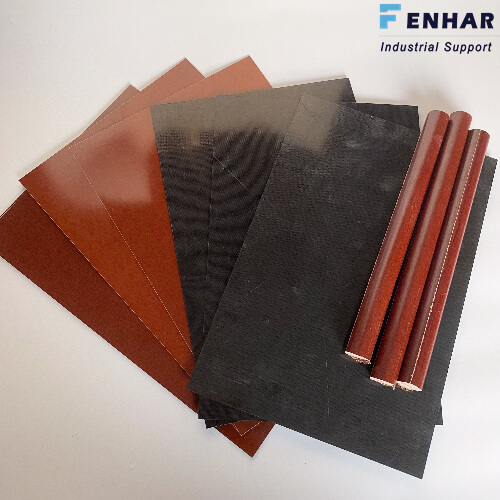

Fenhar New Material supplies thermosetting composites and fabricated components across industries. They support customers from material selection and prototyping to precision machining and assembly, offering sheets, rods, tubes, and custom parts tailored for demanding thermal environments. Contact Fenhar for consultation and a quotation tailored to your temperature, mechanical, and regulatory needs.
