EPGM203 Epoxy Glass Mat Laminate: Ultimate Guide to High-Performance Insulation

Introduction

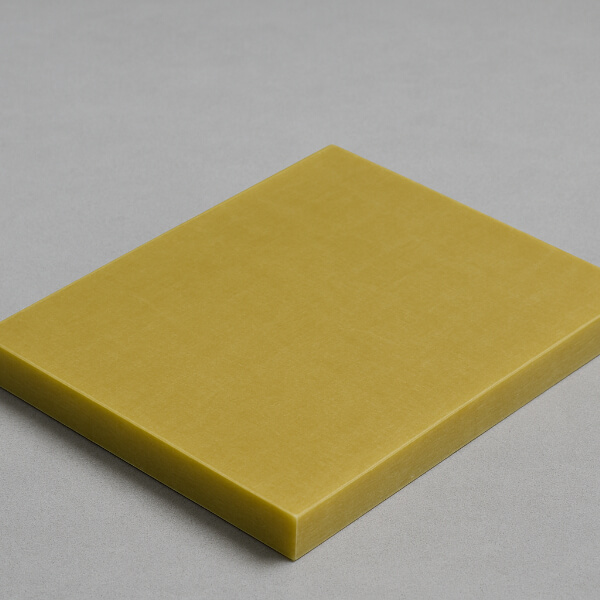

EPGM203（HM34） represents a cutting-edge epoxy glass mat laminate engineered for critical insulation tasks where both electrical reliability and mechanical resilience are non-negotiable. By marrying a high-temperature epoxy system with a randomly oriented glass fiber mat, it delivers uniform performance across a broad spectrum of industrial and power-engineering environments.

Material Composition and Production

1. Glass Fiber Mat

• Made from chopped-strand E-glass fibers bound into a random-loft mat.

2. High-TG Epoxy Resin

• Specialized bisphenol-A/F epoxy blend formulated for a glass transition above 160 °C.

3. Lamination Process

• Impregnation under controlled resin flow, followed by hot-pressing at ~155 °C and 5–8 MPa to cure and consolidate.

4. Quality Control

• Thickness uniformity checked within ±0.02 mm; void content kept below 2%.

Key Physical and Mechanical Properties

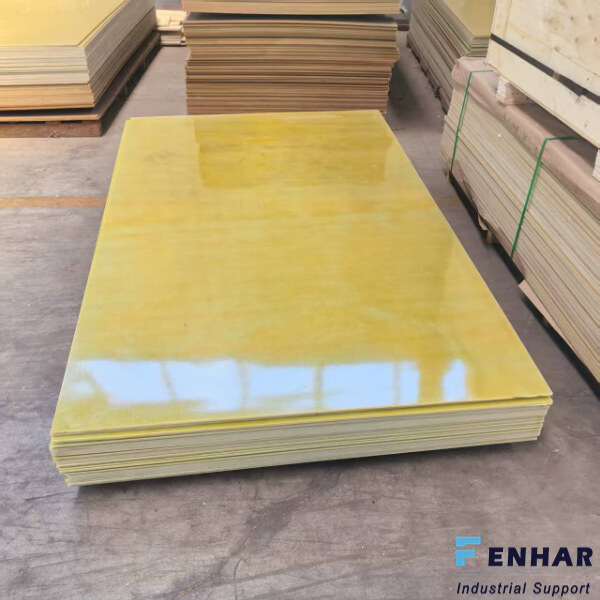

• Thickness Range: 0.5 mm to 50 mm (standard), up to 100 mm on request

• Sheet Dimensions: 1 020 × 1 220 mm or 1 020 × 2 040 mm; precision cut available

Electrical Performance

• Dielectric Constant (1 kHz): 4.2–4.6

• Insulation Resistance: ≥ 10⁹ Ω after 24-hour water soak

• Surface Resistivity: ≥ 10⊃1;⊃2; Ω

• Partial Discharge Inception: > 3 kV

These properties ensure stable behavior in transformers, switchgear, and rotating machinery, even under damp or oily conditions.

Thermal and Flame Resistance

• Glass Transition Temperature (Tg): 165 °C ± 5 °C

• Continuous Use: Up to 155 °C (Class F)

• Short-Term Exposure: Up to 180 °C (Class H)

• Flame Rating: UL 94 V-0 (5 mm thickness)

High Tg epoxy matrix retains stiffness and dielectric integrity at elevated temperatures, while UL certification guarantees self-extinguishing behavior.

Chemical and Environmental Durability

• Moisture Absorption: ≤ 0.5 % by weight after 24 h immersion

• Oil Resistance: Unchanged mechanical properties in transformer and hydraulic oils

• Solvent Resistance: Stable against alcohols, ketones, and aliphatic hydrocarbons

• RoHS/REACH Compliance: Free from lead, hexavalent chromium, and other restricted substances

Formats and Customization Options

• Color Options: Standard yellow-brown; custom pigmentation upon request

• Cutting & Machining: CNC profiles, punched shapes, milled components

• Bonding & Assembly: Available as fully laminated stacks or with pre-drilled holes

• Quality Assurance: ISO 9001 traceability; batch-certified test reports

Typical Applications

1. Power Transformers & Bushings

2. Medium-Voltage Switchgear Insulators

3. Motor and Generator End-Supports

4. Busbar Barriers and Spacers

5. Rail & Renewable Energy Components

Competitive Advantages

• Balanced Performance: Exceptional mechanical strength without compromising dielectric function.

• Thermal Stability: Rated for long-term operation at Class F with headroom for occasional Class H exposure.

• Moisture and Chemical Resistance: Maintains insulation integrity in harsh environments.

• Customizability: From raw sheets to finished precision parts, tailored to complex designs.

Conclusion

EPGM203（HM34） epoxy glass mat laminate stands out as a versatile insulation solution that addresses the rigorous demands of modern electrical and mechanical systems. Its robust combination of high-TG properties, mechanical endurance, and environmental resilience makes it the material of choice for engineers seeking reliability, safety, and longevity in critical applications.
