Engineering Insulation Materials for Electric Generators: Comprehensive Guide to Epoxy and Other Material Solutions

Introduction

Electric generators operate under demanding conditions—high temperatures, intense electrical stresses, mechanical vibrations, and varying environmental factors. Ensuring reliable performance and long operational life hinges on selecting appropriate insulation materials. In this comprehensive guide, we explore two cornerstone insulation technologies for generators—epoxy resin laminates (NEMA G-10 and G-11) and glass polyester (GPO-3)—and explain their attributes, typical applications, and material selection strategies. By understanding these materials’ electrical, thermal, and mechanical properties, engineers can optimize insulation systems for a wide range of generator types, from hydroelectric and wind turbines to large steam turbine units and diesel gensets.

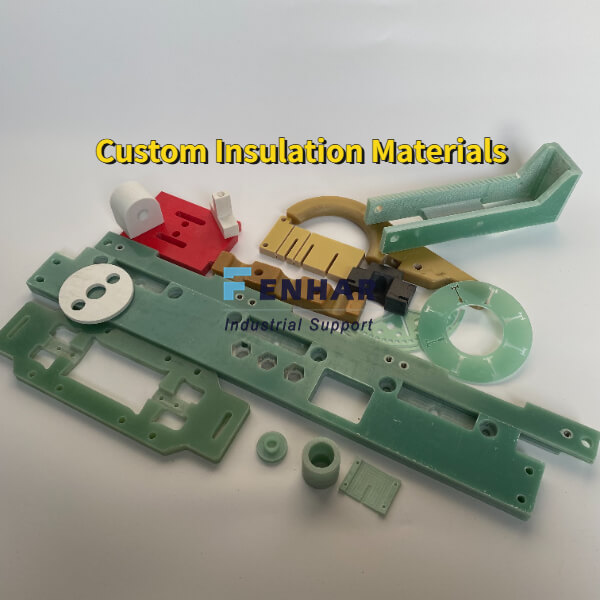

Custom Insulation Materials

1. Epoxy Resin Laminate Insulation Materials

Epoxy resin-based laminates combine glass fiber reinforcement with high-performance thermoset resin to deliver robust insulation under electrical, thermal, and mechanical stresses. The two most common industry-standard grades are NEMA G-10 and NEMA G-11.

1.1 NEMA G-10: F-Class Epoxy Glass Laminate

Material Composition:

  • E-glass fiber cloth saturated and cured in an epoxy resin matrix.

  • Manufactured under high temperature and pressure to form rigid, uniform sheets.

Key Properties:

  • Thermal Classification: F-class insulation (up to 115 °C continuous service).

  • Dielectric Strength: Typically 1,000–1,500 V/mil (approximately 39–59 kV/mm).

  • Volume Resistivity: ≥ 10⊃1;⁴ Ω·cm.

  • Flexural Strength: Around 200–250 MPa.

  • Compressive Strength: Approximately 350–400 MPa.

  • Moisture Absorption: Roughly 0.5–0.8 % after 24 hours of boiling.

  • Thickness Range: Available in 0.5, 1.0, 1.5, 3.0, and 5.0 mm; custom thickness also possible.

Typical Applications in Generators:

  • Stator Slot Liners: Provides robust insulation between copper windings and the iron core, resisting slot discharge and voltage spikes.

  • Slot Wedges: Maintains coil positioning inside stator slots, resisting centrifugal forces; commonly 3–5 mm G-10 wedges.

  • End-Winding Support Insulators: Positioned at the stator end coils to hold winding shape under vibration; G-10 resists deformation at temperatures below 115 °C.

  • Phase Barriers & Phase-to-Ground Insulation: Separates different phase bars, preventing phase-to-phase or phase-to-ground breakdown.

  • Lead Exit & Terminal Insulation: Protects winding leads at exit points, shielding against abrasion and ensuring consistent dielectric separation.

Advantages and Limitations:

  • Advantages:

    • Cost-effective for F-class generator designs (temperature ≤ 115 °C).

    • Excellent electrical strength and good mechanical properties under moderate temperature.

    • Dimensional stability and low creep under normal service conditions.

  • Limitations:

    • Performance degrades above 115 °C; not suitable for environments exceeding F-class.

    • Higher moisture absorption than G-11, requiring proper drying and humidity controls.

1.2 NEMA G-11: H-Class Epoxy Glass Laminate

Material Composition:

  • Similar to G-10 but uses a higher-temperature epoxy resin formulation, enabling improved thermal stability.

  • Reinforced with E-glass fiber cloth under high-pressure lamination.

Key Properties:

  • Thermal Classification: H-class insulation (up to 150 °C continuous service).

  • Dielectric Strength: ≥ 1,500 V/mil (approximately 59 kV/mm).

  • Volume & Surface Resistivity: Comparable to or slightly above G-10 (≥ 10⊃1;⁴ Ω·cm, surface ≥ 10⊃1;⊃3; Ω).

  • Flexural Strength: Around 250–300 MPa (maintained at higher temperatures).

  • Compressive Strength: Approximately 400–450 MPa.

  • Moisture Absorption: Lower than G-10—about 0.3–0.5 % after boiling—ensuring better property retention in humid environments.

  • Thickness Range: Standard grades from 0.5 to 5.0 mm; custom laminates up to 6 mm or greater are available for heavy structural components.

Typical Applications in Generators:

  • High-Temperature Stator Slot Liners: In steam turbine generators or nuclear generators where stator winding temperatures can approach 130–140 °C, G-11 slot liners ensure stable operation.

  • End-Winding Insulation & Support: Supports end coil assemblies in high-temperature zones near coolant inlets, preventing deformation or cracking under stress.

  • Slip Ring Assembly Insulators: Insulating rings and support plates for main excitation slip rings in synchronous generators, where continuous operation can raise local temperatures above F-class limits.

  • High-Voltage Phase Barriers: In medium-voltage (3.6–10 kV) and high-voltage (≥ 10 kV) generator windings, G-11 separators reduce risk of phase-to-phase flashover during transient overvoltages.

  • Rigid Support Structures: Thick G-11 plates machined into brackets, support blocks, or half-bridge connectors that endure mechanical vibration and high temperature.

Advantages and Limitations:

  • Advantages:

    • Excellent thermal endurance up to 150 °C (H-class).

    • Superior mechanical strength retention at elevated temperatures and under vibration.

    • Lower moisture absorption ensures stable dielectric properties in humid or wet environments.

  • Limitations:

    • Higher cost compared to G-10 and GPO-3.

    • May not be necessary for applications that remain below F-class temperatures.

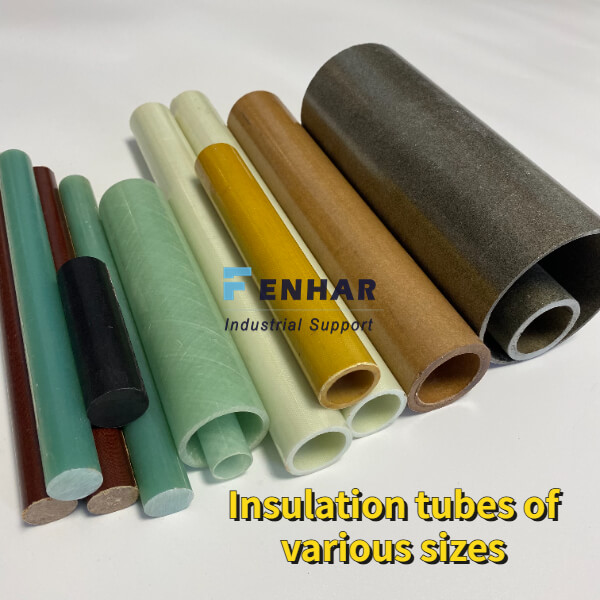

Insulation tubes of various sizes

2. Glass Polyester (GPO-3) Insulation Material

Glass polyester laminates, most notably NEMA GPO-3, are cost-efficient, E-class insulation sheets widely used in small to medium-sized generator applications.

2.1 GPO-3 Material Characteristics

Material Composition:

  • Woven E-glass fiber cloth impregnated with polyester resin, then cured and laminated under heat and pressure.

Key Properties:

  • Thermal Classification: E-class insulation (up to 105 °C continuous service).

  • Dielectric Strength: About 700–1,000 V/mil (approximately 27–39 kV/mm).

  • Volume Resistivity: ≥ 10⊃1;⊃3; Ω·cm.

  • Surface Resistivity: ≥ 10⊃1;⊃2; Ω.

  • Flexural Strength: Approximately 150–200 MPa.

  • Compressive Strength: Around 300–350 MPa.

  • Moisture Absorption: Roughly 1.0–1.5 % after 24 hours of boiling; requires drying after moisture exposure to maintain insulation performance.

  • Thickness Range: Generally available in 0.5, 1.0, 1.5, and 3.0 mm sheets; thicker laminates can be cut or stacked for specific needs.

Cost and Processability:

  • Advantages:

    • More economical than epoxy-based laminates (G-10, G-11).

    • Easy to cut, drill, and form; minimal tooling required.

    • Adequate mechanical strength for many low- to medium-power generators.

  • Limitations:

    • Temperature limit of 105 °C; not recommended for F-class or H-class applications.

    • Higher moisture uptake demands careful drying and humidity management.

    • Less impact resistance compared to epoxy laminates; edges can become brittle over time.

2.2 Typical Applications in Generators

  • Stator Slot Liners (Low- to Medium-Voltage):
    In hydroelectric or small diesel generator stators with winding temperatures below 105 °C, GPO-3 provides reliable slot insulation. It can be combined with varnish or silicone coatings for moisture protection.

  • Phase and Inter-Turn Insulation:
    For generators operating at medium voltage (≤ 3.6 kV), phase barriers and inter-turn separators made from GPO-3 help prevent phase-to-phase and turn-to-turn breakdown.

  • End-Winding Support Pads:
    In water-cooled or air-cooled generator designs where end coil temperatures remain moderate, GPO-3 pads maintain coil shape and resist vibration.

  • Terminal Boards & Connection Insulators:
    In low-voltage terminal boxes, GPO-3 plates serve as insulating mounts for connection studs, protecting against short circuits and mechanical wear.

  • Miscellaneous Components:
    Spacers, washers, and gaskets fabricated from GPO-3 can be used in generator accessories, provided operating temperatures do not exceed E-class limits.


3. Other Common Insulation Materials

While epoxy laminates and glass polyester are primary workhorses in many generator designs, additional materials are required to address specific temperature ranges, chemical exposures, or mechanical requirements.

  • Mica-Based Insulation

    • Composition: Mica sheets or mica paper laminated with resins.

    • Thermal Classification: C-class (up to 180 °C) or higher, depending on mica quality and resin binder.

    • Applications: High-voltage slot wedges, inter-turn layers, and end-winding insulation in large turbine generators.

    • Advantages: Excellent dielectric strength, low dielectric loss, and outstanding high-temperature performance.

    • Limitations: Higher cost and complex handling; brittle nature requires careful design.

  • Aramid (Nomex®) Paper and Fabric

    • Composition: Meta-aramid fibers formed into paper or fabric.

    • Thermal Classification: H-class (around 155 °C).

    • Applications: Phase barriers, slot liner warm gas barrier, end-winding tapes, and corona protection layers.

    • Advantages: Good mechanical strength, flexibility, and moderate moisture resistance.

    • Limitations: Lower compressive strength compared to rigid laminates; often used in combination with epoxy or mica.

  • Polyimide Film (Kapton®)

    • Composition: Polyimide polymer film.

    • Thermal Classification: Up to 200 °C or higher.

    • Applications: Turn-to-turn insulation in high-performance or high-frequency generator windings; thin interleaving layers.

    • Advantages: Excellent dielectric constant, thermal stability, and chemical resistance.

    • Limitations: Low mechanical robustness; always used in multilayer insulation stacks.

  • PPS (Polyphenylene Sulfide) and PET (Polyethylene Terephthalate) Films

    • Thermal Classification: PPS up to ~155 °C; PET up to ~120 °C.

    • Applications: Turn insulation, outer wrapper, and inter-phase layers in low- to medium-voltage machines.

    • Advantages: Good moisture resistance, flexibility, and acceptable dielectric strength.

    • Limitations: Lower mechanical and thermal performance than epoxy or polyimide; suitable for less demanding environments.

  • Silicone-Impregnated Glass Fabrics

    • Composition: E-glass fabric impregnated with silicone resin.

    • Thermal Classification: Up to ~200 °C for cured silicone.

    • Applications: End-winding insulation, rotor slot liners, high-voltage corona protection.

    • Advantages: Excellent flexibility, high dielectric strength, and good moisture resistance.

    • Limitations: Limited mechanical stiffness; requires supporting structure.


4. Insulation Applications Across Generator Types

Different generator designs impose varied demands on insulation systems. Below is a summary of how G-10, G-11, GPO-3, and other materials match up to common generator categories.

Generator Type Environment & Operational Demands Recommended Insulation Materials
Steam Turbine Generators

• High voltage (≥ 10 kV)
• Stator winding temperatures up to 130–140 °C
• Continuous heavy loads

Stator Slot Insulation: G-11 (H-class) + mica paper layer
End-Winding Insulation: Nomex® + silicone-impregnated fabric
Slip Rings: G-11
Hydro Turbine Generators • High humidity, sometimes splash zone
• Moderate temperature rise (≤ 105 °C)
• Variable load cycles
Slot Liners: GPO-3 or G-10 (F-class) with moisture-resistant coatings
Phase Barriers: Nomex® or G-10
Terminal Boards: GPO-3
Wind Turbine Generators • Outdoor temperature swings (−20 °C to +40 °C)
• Significant vibration
• Medium voltage (3.6–6.6 kV)
Stator Insulation: G-10 or resin-impregnated winding with G-10 wedges
Phase Insulation: Kapton® film
End-Winding Support: Nomex®
Diesel Generator Sets • Frequent start/stop cycles
• Exposure to oil, diesel fumes, mechanical vibration
• Typically low to medium voltage
Slot Liners: GPO-3 (E-class) for size ≤ 2 MW
End-Winding Pads: GPO-3 or Nomex®
Lead Insulation: PVC heat-shrink + GPO-3 collars
Gas Turbine Generators • Harsh thermal cycles
• High ambient temperatures
• High voltage applications (up to 15 kV)
Stator Insulation: G-11 with mica inserts
Slot Wedges: H-class epoxy laminate
End Insulation: Silicone-impregnated glass fabric
Small Industrial Generators • Indoor use, controlled environment
• Low voltage (< 1 kV)
• Budget-sensitive applications
Slot Liners: GPO-3
Phase/Turn Insulation: Polyester (PET) or PPS films
End Supports: GPO-3 sheets


5. Insulation Components and Material Selection

When designing or servicing a generator, the insulation system can be broken down into key components. Engineering decisions about materials for each component should consider temperature class, voltage stress, mechanical load, environmental factors, and cost.

5.1 Stator Slot Insulation

  • Primary Function:

    • Prevent copper winding conductors from shorting to the stator core under electrical stress.

    • Resist partial discharge, thermal aging, and mechanical abrasion.

  • Material Options:

    • G-10: Preferred for F-class designs (temperatures ≤ 115 °C) due to cost-efficiency and robust performance.

    • G-11: Selected when winding temperatures may approach H-class limits (≤ 150 °C), especially for high-voltage, high-power machines.

    • GPO-3: Suitable for E-class machines (≤ 105 °C), small generators, or applications with tight cost constraints.

  • Key Selection Criteria:

    1. Thermal Class (E, F, H, etc.): Choose material rated for continuous operating temperature plus 10–15 °C buffer.

    2. Voltage Rating: Ensure dielectric strength meets peak surge voltage demands; G-11 offers higher breakdown strength than G-10.

    3. Moisture Resistance: In humid or wet environments, G-11 outperforms GPO-3 (lower water absorption). Use varnish or silicone coatings for GPO-3 if moisture is a concern.

    4. Mechanical Stiffness: G-11 retains mechanical strength at elevated temperatures, resisting winding deformation.

5.2 Slot Wedges & Wedge Support

  • Primary Function:

    • Secure winding coils inside stator slots under centrifugal and vibrational loads.

    • Assist heat transfer from copper to stator core.

  • Material Options:

    • G-10/G-11: Laminate thickness (3 mm to 6 mm) machined into wedge shape. G-11 is preferred in high-temperature or high-voltage applications.

    • Mica-Epoxy: In large turbine generators, mica-based wedges provide excellent high-temperature dielectric strength.

  • Key Selection Criteria:

    1. Mechanical Strength & Thermal Stability: G-11 preferred for continuous temperatures above F-class.

    2. Thermal Conductivity: Mica composites can slightly improve heat transfer, reducing hotspot formation.

    3. Thickness Tolerance: Precise fit required to prevent movement; laminates must be cut to tight dimensional tolerances.

5.3 End-Winding Insulation & Support

  • Primary Function:

    • Insulate end coil regions from mechanical contact, vibration, and corona discharge.

    • Provide structural support to prevent coil movement.

  • Material Options:

    • Nomex® Paper/Fabric: Flexible aramid insulation suitable for H-class end-winding pads and cross-over tapes.

    • Silicone-Impregnated Glass Fabric: Used where both high temperature and flexible support are needed (up to ~200 °C).

    • G-10/G-11: Machined pads or rigid supports for high-temperature, high-vibration zones.

    • GPO-3: In small diesel or hydro generators where end-winding temperatures remain below E-class.

  • Key Selection Criteria:

    1. Flexibility vs. Rigidity: Flexible materials like Nomex® conform to coil shapes, while rigid G-10 offers mechanical strength.

    2. Thermal & Dielectric Requirements: Silicone-impregnated fabric is chosen for H-class end-winding protection, while Nomex® suffices for moderate heat.

    3. Environmental Exposure: In offshore or hydro environments, silicone-based fabrics resist moisture better than plain Nomex®.

5.4 Phase and Inter-Turn Insulation

  • Primary Function:

    • Prevent electrical shorting between turns of a coil (inter-turn) and between different phase windings (phase barriers).

  • Material Options:

    • Polyimide (Kapton®) Film: Ultra-thin layers for inter-turn insulation in high-performance or high-speed machines.

    • G-10/G-11 Sheets: Thicker separators (0.5 – 1 mm) for inter-phase barriers in medium to high-voltage machines.

    • PPS or PET Films: Cost-effective inter-turn insulation in small motors or generators.

  • Key Selection Criteria:

    1. Dielectric Strength: Use polyimide for high inter-turn voltage stress, G-11 for phase barriers in H-class machines.

    2. Thermal Endurance: Ensure chosen film can handle peak coil temperature under overload.

    3. Thickness & Dielectric Thickness Stacking: Multiple thinner layers often yield better voltage withstand than a single thick layer.


6. Generator Type Case Studies

6.1 Steam Turbine Generator Insulation

  • Operating Conditions:

    Continuous operation at rated load; stator winding temperatures up to 135 °C.

    High voltage (10–20 kV), requiring robust dielectric margins.

    Low moisture but significant mechanical vibration from rotor dynamics.

  • Insulation Strategy:

    1. Stator Slot Liner: G-11 3 mm laminate + mica paper overlay to combine mechanical support and high-temperature dielectric strength.

    2. Slot Wedges: H-class mica-epoxy wedges to resist thermal aging.

    3. End-Winding Pads: Nomex® sheets coated with silicone resin for H-class temperature and moisture resistance.

    4. Phase Barriers: 1 mm G-11 separators between phase bars, ensuring sufficient creepage distances.

6.2 Hydroelectric Generator Insulation

  • Operating Conditions:

    Exposure to high humidity and occasional spray; stator temperatures ≤ 105 °C.

    Voltage levels typically 6–13 kV.

    Frequent load variations leading to thermal cycling.

  • Insulation Strategy:

    1. Slot Liners: GPO-3 (1.5 mm) with varnish or polyurethane topcoat for moisture protection.

    2. Phase and Inter-Turn: Nomex® or G-10 0.5 mm phase barriers.

    3. End-Winding Support: GPO-3 pads for moderate heat and humidity resilience.

    4. Terminal Boards: GPO-3 plates, cost-effective and easy to machine.

6.3 Wind Turbine Generator Insulation

  • Operating Conditions:

    Outdoor ambient extremes (−20 °C to +40 °C).

    Vibration from tower and blade motion.

    Medium voltage (3.6–6.6 kV).

  • Insulation Strategy:

    1. Slot Liner: G-10 (1 mm) with polyester film overlay for added dielectric barrier and improved moisture resistance.

    2. Phase Insulation: Kapton® film for inter-turn separation, offering high dielectric strength at elevated temperature.

    3. End-Winding Pads: Nomex® combined with silicone-impregnated glass fabric to handle temperature spikes and moisture.

    4. Slot Wedges: G-10 wedges (3 mm) to firmly hold windings under centrifugal force.

6.4 Diesel Generator Set Insulation

  • Operating Conditions:

    Intermittent operation with frequent start/stop cycles.

    Oil and diesel vapors, higher ambient dust.

    Typically low to medium voltage (≤ 1 kV up to 3.6 kV).

  • Insulation Strategy:

    1. Slot Liners: GPO-3 (1.5–2 mm) for cost efficiency; moderate operating temperature (< 100 °C).

    2. End-Winding Pads: GPO-3 or Nomex® sheets for mechanical support and dielectric barrier.

    3. Lead Insulation: Combination of GPO-3 collars and PVC heat-shrink tubing to prevent oil penetration.

    4. Phase Barriers: PET or PPS film between phase windings for turn-to-turn insulation.


7. Material Selection Guidelines

Choosing the right insulation materials involves balancing multiple factors: temperature class, voltage class, environmental conditions, mechanical demands, and budget constraints. The following checklist can guide the selection process:

  1. Determine Operating Temperature Range

    • ≤ 105 °C (E-class): Glass polyester (GPO-3), PET, PPS.

    • ≤ 115 °C (F-class): NEMA G-10, Nomex®, polyimide film.

    • ≤ 150 °C (H-class): NEMA G-11, Nomex®, silicone-impregnated fabrics, polyimide.

    • ≥ 155 °C (C-class and above): Mica paper, mica-epoxy composites, ceramic or mineral-based systems.

  2. Assess Voltage and Dielectric Stress

    • Low Voltage (< 3.6 kV): GPO-3, PET, PPS films may suffice.

    • Medium Voltage (3.6–10 kV): G-10 or G-11 with additional varnish or polyimide layers.

    • High Voltage (≥ 10 kV): G-11, mica-epoxy blends, multiple insulation layers to handle surge voltages.

  3. Consider Moisture and Environmental Exposure

    • High humidity or occasional water spray:

      • Lower Moisture Absorption: G-11, Nomex®, silicone-impregnated glass.

      • Protective Coatings: Apply varnish, silicone, or polyurethane to GPO-3 or G-10 surfaces.

    • Chemical exposure (oils, solvents):

      • Resistant Materials: Polyimide, PPS, silicone-impregnated fabrics.

  4. Evaluate Mechanical Loads and Vibration

    • High Mechanical Stress: G-11 retains rigidity and compressive strength at elevated temperatures.

    • High Vibration: Nomex® combined with rigid epoxy laminates for damping and support.

  5. Analyze Cost Constraints and Availability

    • Budget-Driven Designs: Use GPO-3 and G-10 where temperature and voltage demands are moderate.

    • Critical Reliability: For high-value turbine or critical backup generators, invest in G-11, mica composites, and top-tier polyimide materials.

  6. Design for Manufacturability and Serviceability

    • Ease of Machining: GPO-3 and G-10 sheet stock machine easily with standard tools, reducing fabrication costs.

    • Field Repairs: GPO-3 and Nomex® pads can be replaced relatively quickly during maintenance stops.

    • Custom Shapes: Epoxy laminates allow for precise machining into complex fixtures and supports.


Conclusion

A well-engineered insulation system is fundamental to generator reliability, safety, and longevity. Recognizing the unique properties of NEMA G-10, NEMA G-11, and GPO-3 lets designers tailor insulation layers to match temperature class, voltage level, mechanical stresses, and environmental factors. While G-10 meets most F-class requirements with cost efficiency, G-11 extends performance to H-class temperatures, and GPO-3 offers an economical E-class solution for smaller or less demanding units. Complementary materials—mica, Nomex®, polyimide, PPS, and silicone-based fabrics—can be integrated to address extreme environments or specialized needs.

By following structured selection guidelines—considering operating temperature, electrical stress, moisture, mechanical load, cost, and manufacturability—engineers can optimize every insulation component, from stator slot liners and slot wedges to end-winding pads and phase barriers. The result is an insulation system that delivers safe, efficient, and maintenance-friendly operation across steam, hydro, wind, diesel, and gas turbine generator platforms. This comprehensive approach ensures that each generator, regardless of type or application, remains protected against electrical breakdown, thermal degradation, and mechanical fatigue for years of uninterrupted service.

Subscribe to our newsletter
Promotions, new products and sales. Directly to your inbox.

Quick Link

Product Category

Contact Us
 No.188 Fengwang Industry Zone, Liuji Town, Tongshan District, Xuzhou, China
  info@fenharxz.com
 +86-516-85280035
  +86-18952117287

Copyright © 2024 Fenhar New Material CO., LTD. All Rights Reserved.
Sitemap
We use cookies to enable all functionalities for best performance during your visit and to improve our services by giving us some insight into how the website is being used. Continued use of our website without having changed your browser settings confirms your acceptance of these cookies. For details please see our privacy policy.
×
