Every control command in an aircraft — from a subtle trim input to a full flaps deployment — depends on actuators that convert energy into controlled motion. The choice of materials inside those actuators determines whether a command is executed precisely and reliably over thousands of cycles or whether it becomes a maintenance headache. Thermoset composite laminates have emerged as a top choice for actuator components because they combine structural performance with electrical and chemical resilience in service environments that are unforgiving.
This article explains why thermoset laminates are especially well-suited to actuator applications, how they are used in practice, and what engineers should consider when specifying them.
Actuators are compact assemblies that often house drive motors, gearing, bearings, seals, and electrical feeds — all operating in tightly constrained spaces. Materials used in actuator components therefore must satisfy several simultaneous requirements:
Preserve dimensional tolerances under thermal cycling and vibration
Offer mechanical stiffness and strength while minimizing mass
Provide reliable electrical insulation where conductors and high-voltage components are nearby
Resist attack by hydraulic fluids, fuels, de-icing chemicals, and moisture
Sustain millions of load cycles without cracking, delaminating, or wearing prematurely

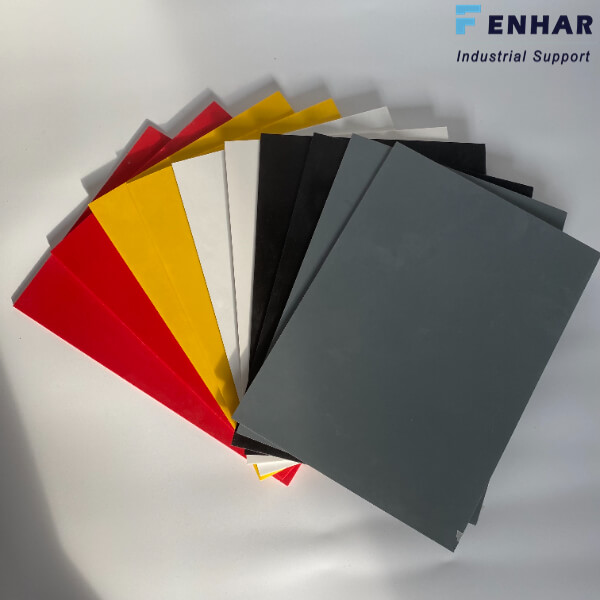

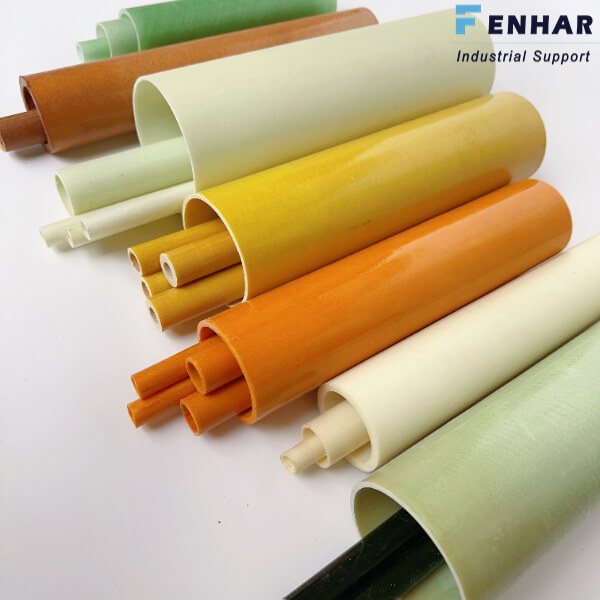

Meeting this blend of requirements with a single class of material is rare. Thermoset composite laminates — formulations based on epoxy, phenolic, and other thermosetting resins reinforced with glass, mica, or specialty fillers — are uniquely capable of doing so.
Thermoset laminates provide structural stiffness comparable to some metals at a fraction of the weight. In actuator systems, this allows designers to reduce the mass of housings, brackets, and structural inserts without sacrificing rigidity — improving overall aircraft efficiency and enabling tighter packaging of mechanisms.
Unlike many metals and thermoplastics, well-selected thermoset laminates exhibit low thermal expansion and resist creep under load. Actuator gear trains and precision linkages demand predictable clearances; laminates help hold those clearances across altitude and mission temperature ranges, preserving accuracy and reducing the need for frequent recalibration.
Many actuator assemblies sit close to sensors, harnesses, and power electronics. Thermoset laminates are inherently dielectric, removing the need for separate insulating sleeves or coatings in many cases and simplifying assembly while improving safety.
Phenolic and epoxy laminates withstand immersion and repeated exposure to hydraulic fluids, jet fuel, lubricants, and de-icing agents far better than aluminum in certain environments. They do not corrode and they retain mechanical properties after prolonged fluid exposure, which lowers maintenance overhead and extends service intervals.
Actuator components endure cyclical loads. Thermoset laminates — particularly when reinforced and properly processed — show excellent resistance to fatigue and surface wear. This makes them ideal for bearings, bushings, wear pads, and sliding surfaces inside actuators.
Housings and end caps: Lightweight, dimensionally stable enclosures that also provide electrical isolation between internal components and the airframe.
Mounting and interface brackets: Rigid supports that carry loads into the structure while reducing transmitted thermal expansion.
Bushings, plain bearings, and wear pads: Low friction surfaces that tolerate repeated reciprocation with minimal lubrication needs.
Insulating barriers and cable carriers: Dielectric partitions that keep power and signal paths separated and protected.
Valve seats and sealing interfaces: Chemically resistant, dimensionally stable seats that maintain leak-tightness in fuel and hydraulic systems.
Rotor supports and structural inserts: Reinforced laminate inserts that resist localized stress concentrations and deliver mounting points for precision hardware.
Match the resin system to the operating environment. Epoxy-based laminates excel where higher mechanical performance and temperature tolerance are required; phenolic systems can offer superior flame resistance and solvent resistance in certain formulations. Consider long-term exposure and peak temperature rather than only short-term extremes.
Choose reinforcement and filler wisely. Glass and mica reinforcements influence stiffness, dielectric properties, and machinability. Graphite or other fillers can be added to enhance thermal conductivity or wear resistance when needed.
Consider fabrication and finish. Thermoset laminates can be laminated into multilayer stacks and then machined precisely. Remember that cured laminates are brittle relative to metals — design edge radii and fastener patterns to avoid stress risers.
Plan for fastening and joining. Inserts, countersinks, and mechanical fasteners are standard — but the laminate’s anisotropy means designers should orient laminates so load paths align with the strongest directions and use appropriate reinforcement around fastener zones.
Test for long-term performance. Validate not only static strength but also fatigue life, wear under expected motion profiles, and dimensional stability through thermal cycles and fluid exposure.
Thermoset laminates are produced by stacking impregnated reinforcement and curing under pressure and heat. This process allows tight control of thickness and fiber/resin content, enabling parts that meet precise tolerance bands. After curing, components are typically CNC-machined, drilled, and finished; surface treatments and coatings can be applied for additional abrasion or UV protection.
From a supply-chain perspective, laminates are available in many standardized formats and grades, which helps with repeatable procurement. For highly optimized parts, custom laminates can be specified to balance dielectric strength, stiffness, and machinability.
Because thermoset laminates are non-corroding and chemically stable, actuator components made from them frequently require less aggressive corrosion control and fewer replacements. Visual inspection regimes remain critical, but the absence of rust and the materials’ predictable wear modes make condition-based maintenance easier to implement. When replacement is necessary, parts are often lighter and simpler to handle.
Replacing a heavy metal bracket with a reinforced epoxy laminate reduces the bracket’s mass while retaining stiffness, allowing the actuator to respond faster with the same actuator torque.
Using a phenolic wear pad as a sliding surface in a landing-gear actuator reduces the need for periodic lubrication and cuts maintenance labor.
Integrating dielectric laminate barriers around high-voltage feed-throughs in an electric actuator reduces harness complexity and improves safety margins.
Thermoset composite laminates are not a universal panacea. Certain structural elements still call for metal for impact resistance or when post-installation formability is required. However, when the design goal is predictable precision, low life-cycle cost, and dependable insulation in a compact package, thermoset laminates should be among the first materials considered.
If you’re specifying actuator components, start by defining the operating temperature range, fluid exposures, electrical environment, target service life, and allowable mass. From there, evaluate epoxy and phenolic laminates — and consider hybrid solutions that combine laminate inserts with metallic substructures where each material’s strengths are needed.
