When a design calls for a reliable electrical insulating laminate, choosing the correct grade can be the difference between a dependable product and costly rework. Two commonly specified grades — EPGM203 and EPGC203 — are both epoxy–glass composites, yet they behave differently in the field. This article walks through how they differ, why those differences matter, and how to pick the right material for a given application.

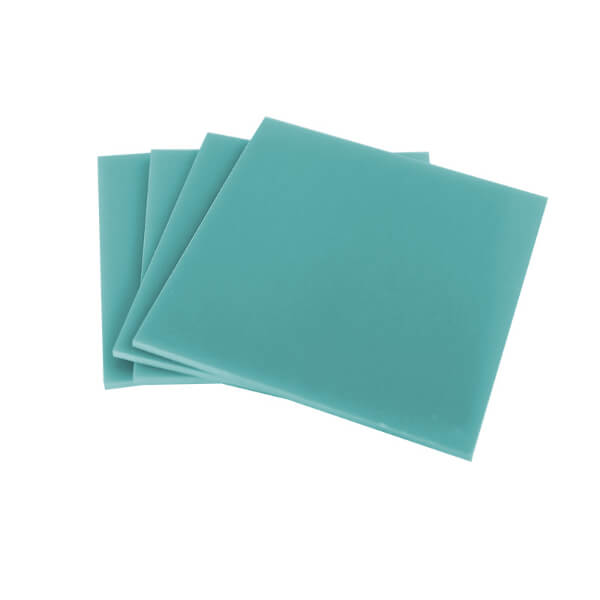

EPGC203 (fabric/cloth-reinforced) delivers superior directional strength, dimensional stability, lower moisture uptake and cleaner machining for precision electrical parts.

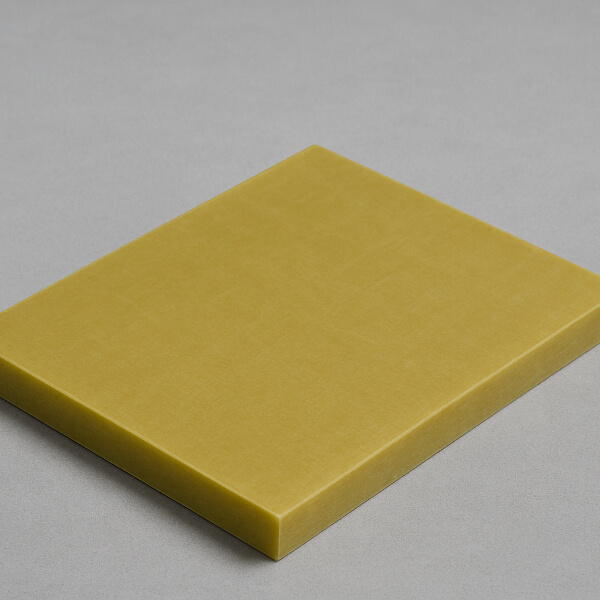

EPGM203 (glass-mat reinforced) provides more uniform (isotropic) mechanical properties, better formability and impact resistance — often preferred for thicker or formed insulating pieces.
Read on for a detailed breakdown, a decision checklist, and practical procurement tips.
Both EPGM203 and EPGC203 are epoxy-resin laminates reinforced with glass fiber, used where electrical insulation and mechanical stability must coexist. The crucial difference is how the glass fiber is arranged:
Glass-cloth (woven) reinforcement — EPGC203: glass fibers are woven into sheets; this results in distinct strength along the weave directions and a tight, dense structure.
Glass-mat (random/non-woven) reinforcement — EPGM203: short glass fibers are bonded together into a mat; the mat produces more even strength in all directions and conforms to shapes more readily.
The resin matrix (epoxy) largely determines thermal and electrical baseline performance; reinforcement form modifies mechanical, moisture and machining behavior.
Directional strength: Woven cloth laminates typically exhibit higher tensile and flexural strength along the fabric axes. If your design relies on high in-plane stiffness or load carrying in specific directions (e.g., thin, long parts), EPGC203 tends to outperform.
Isotropy and impact resistance: Glass-mat laminates spread load more evenly across directions. For parts that see multi-directional stress, shock loads, or need good compressive and impact behavior, EPGM203 is often advantageous.
Dimensional stability: EPGC203 usually holds tight tolerances better under thermal cycling and mechanical load because the woven reinforcement reduces creep and warpage.
Dielectric behavior: Both materials provide strong dielectric strength when properly manufactured. However, the denser, fabric-reinforced EPGC203 typically shows slightly lower dielectric loss and better long-term electrical stability in humid or oily environments.
Moisture absorption: Mat constructions can allow slightly higher moisture uptake because of their microstructure; woven laminates tend to be less permeable. If the application will face high humidity, immersion, or steam cleaning, prefer the cloth-reinforced option.
Both grades are used in elevated-temperature electrical insulation systems. The key thermal spec to compare is the glass transition temperature (Tg) and the material’s certified temperature index. Suppliers’ resin formulations vary, so always compare manufacturer data for Tg and continuous service temperature rather than assuming equivalence.
Punching and forming: Mat laminates usually conform and punch well, making them good for formed insulators and thicker parts.
Precision machining: Woven cloth laminates produce cleaner slot edges and finer detail when milling, routing, or laser-cutting, making them preferred for motor and transformer components that require tight dimensional control.
Bonding and adhesives: Epoxy laminates bond well with common industrial adhesives, but surface prep and adhesive choice should match the operating temperature and environment.
EPGC203 (cloth): stator slot insulation, transformer barriers, precision washers and shims, and anywhere low moisture uptake and high dimensional stability are priorities.
EPGM203 (mat): thicker insulators, formed housings, structural electrical parts, and where isotropic mechanical behavior and impact resistance are required.
When comparing EPGM203 and EPGC203 from vendors, ask for these measured values:
Resin system and certified temperature index (Tg, continuous service temp)
Tensile, flexural and compressive strengths (with test direction noted)
Dielectric strength (kV/mm) and dielectric loss/tan δ at relevant frequencies
Water absorption (%) after standard immersion (e.g., 24h / 48h)
Dimensional tolerance and thermal expansion coefficients
Density and thickness tolerances
Recommended machining parameters and tooling notes
Manufacturer’s recommended cleaning and handling procedures
Certifications: UL listing, IEC/ASTM references or equivalents if required
If you need precision parts with low moisture uptake: lean EPGC203.
If you need formed, thicker, impact-resistant parts with isotropic properties: lean EPGM203.
If the operating environment is hot + humid: always verify the supplier’s moisture and high-temperature electrical data.
For motor/transformer cores and slot liners where tolerances matter — choose the fabric-reinforced grade.
When cost and manufacturing ease for complex shapes matter, consider the mat-reinforced grade.
Sample and test: Always order samples for in-house machining and environmental testing. Datasheets tell you expected ranges, but real parts validate fit and function.
Tooling and cycle time: Mat laminates can blunt tools faster during precision machining; confirm recommended feeds and speeds with your supplier.
Surface finish & coatings: Some applications benefit from varnish or conformal coatings — confirm compatibility with the laminate and process temperatures.
Batch consistency: When ordering large quantities for production, request batch traceability and material certifications to reduce variability across runs.
Q: Are EPGM203 and EPGC203 interchangeable?
A: Not always. They can sometimes be substituted if the resin system and thickness match, but differences in reinforcement change mechanical, moisture and machining behavior. Verify with testing.
Q: Which has better electrical insulation?
A: Both are strong insulators; fabric-reinforced EPGC203 generally shows slightly better long-term electrical stability in humid conditions.
Q: Which is easier to machine?
A: EPGC203 produces cleaner machined edges; EPGM203 may be easier to form and punch.
Selecting between EPGM203 and EPGC203 comes down to matching part function to material behavior: prioritize dimensional stability and low moisture for precision electrical components; favor isotropy and formability for thicker or shaped pieces. Use the supplier comparison checklist above, test real parts early, and document preferred vendors and tool settings once you finalize a choice.
