In modern electromechanical systems, flat sheet stock is rarely just a filler. Insulation sheets often become structural supports, heat-management elements, and precision machined components that affect system tolerances, safety margins, and product lifetimes. Choosing a material only by initial dielectric numbers or price invites surprises later: dimensional drift, reduced creepage distances, thermal hotspots, or inconsistent production yield.

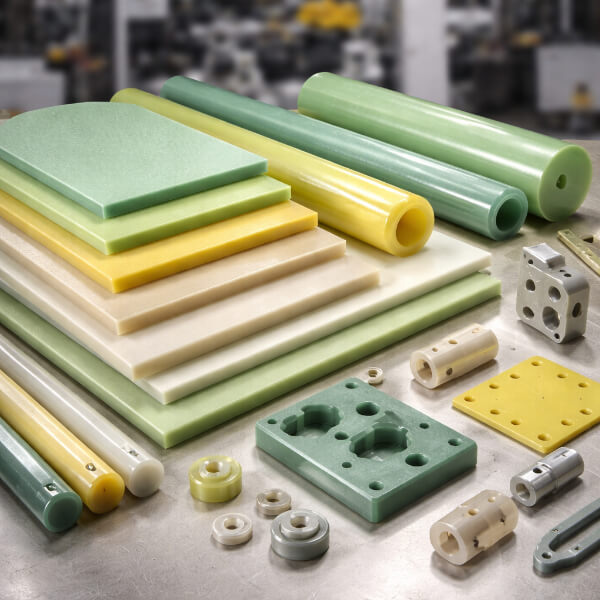

Thermoset composite laminates — glass-reinforced epoxy, phenolic, and polyester laminates — are the workhorses when predictability under continuous heat, humidity, and load matters. This article compares common thermoset choices, highlights a high-performance epoxy-glass option (EPGM203), and gives practical guidance for selection, machining, and procurement.
Thermoplastics can be attractive for low-cost or low-temperature uses because they are easy to mold. But under sustained temperature and mechanical load many thermoplastics soften and creep. That gradual change in shape or mechanical response can push a system out of tolerance.
Thermosets, once cured, do not soften with heat in the same way. Glass-reinforced laminates retain stiffness, dielectric performance, and dimensional stability across wide temperature ranges. In applications where parts must preserve mechanical relationships and electrical clearances for years, thermosets are the safer bet.
G10 is a glass-epoxy laminate prized for mechanical rigidity and reliable electrical insulation in humid or industrial environments. Use G10 when you need strong, machinable sheet stock for structural spacers, insulating rails, or load-bearing barrier panels.
G11 is similar to G10 but formulated for higher temperature endurance. Choose G11 where continuous elevated temperatures or larger thermal gradients are expected — for instance, near power electronics or high-power motor windings.
FR4 shares the epoxy-glass construction but includes flame-retardant chemistry and common UL recognitions. FR4 is the usual choice when fire performance or regulatory compliance in enclosed electrical equipment is a primary concern — think control cabinets, PCBs adjacent insulation, and consumer products requiring UL/IEC conformance.
EPGM203 is an epoxy-glass laminate developed for demanding insulation tasks that require a balance of high dielectric strength, low moisture uptake, and tight dimensional control. It machines cleanly, accepts surface finishes, and is designed to maintain electrical and mechanical properties under repeated thermal cycles — making it well suited to battery pack barriers, transformer insulation components, and precision machined spacers.
When comparing candidates, evaluate all of these together — a single number rarely tells the whole story.
Service temperature and continuous use limit — match to the hottest sustained environment, not just short spikes.
Dimensional stability under load — assess creep and long-term flexural stability for structural or supporting parts.
Dielectric strength and surface resistance — consider humidity, contamination, and expected IV stress.
Moisture absorption — low uptake preserves dielectric and mechanical properties.
Flame and smoke performance — required for compliance or safety-sensitive installations.
Machinability and edge quality — parts that chip or delaminate will raise NPI risk.
Available thicknesses and tolerances — tighter stock tolerances improve assembly consistency.
Supply continuity and custom services — in-stock options and on-demand cutting or machining reduce production risk.
Prioritize the properties that matter to the application: for a battery pack, thermal stability, dielectric isolation, and low outgassing may outrank flame rating; for switchgear, flame retardancy and arc resistance will be essential.
Thermoset laminates generally machine more predictably than many thermoplastics. Still, follow good practices to preserve part quality:
Use sharp, carbide tooling with proper rake to reduce chipping.
Optimize feeds and speeds to avoid heat buildup that can cause surface fraying.
Clamp uniformly and support thin sheets to prevent deflection and chatter.
Inspect edge tolerance and flatness immediately after cutting; small deviations can compromise electrical clearances.
Consider post-machining cleaning and surface treatments where contamination or film residues could lower surface resistance.
Choosing materials that hold thickness tolerances and machine cleanly reduces rework and increases first-pass yield during NPI and volume production.
Datasheets provide useful benchmarks, but long-term behavior under combined stressors is what determines field reliability. Ask suppliers for aging data, moisture cycling tests, and mechanical stability reports whenever possible. Where validated performance is required (aerospace, medical-grade equipment, or mission-critical industrial systems), seek materials with documented test histories or third-party certifications that match your operating profile.
A technically ideal sheet is only useful if it can be delivered consistently. For production programs, prefer suppliers who:
Stock multiple standard thicknesses and panel sizes.
Offer custom cutting, CNC routing, or value-added machining services.
Provide traceability and lot-to-lot consistency.
Maintain clear lead-time commitments and backup capacity.
Early engagement with your supplier to qualify stock, run pilot batches, and establish acceptance criteria prevents late changes that can derail product launches.
Transformer insulation — choose low-moisture, high-dielectric laminates such as epoxy-glass or phenolic grades with stable long-term behavior.
Battery modules — specify epoxy-glass materials (EPGM203 or similar) that retain dielectric strength at elevated cell temperatures and resist thermal ageing.
Motor and generator insulation — favor G10/G11 where vibration and thermal cycling are continuous; use G11 for higher temperature zones.
Switchgear and enclosures — use FR4 where flame retardancy and compliance are required, combined with tight thickness tolerances for automated assembly.
Good material selection balances electrical, thermal, mechanical, manufacturability, and supply factors. Start selection from the operating environment — temperatures, humidity, mechanical loads, and regulatory constraints — then choose the material family that reliably meets those demands over the product lifetime. For many demanding OEM systems, thermoset glass-reinforced laminates such as G10, G11, FR4, and high-performance epoxy-glass grades like EPGM203 deliver the predictability engineers need.
