Composite sleeve bearings are rapidly becoming the default choice where uptime, load capacity, and resistance to harsh service matter most. Replacing or retrofitting traditional bronze or thermoplastic bushings with engineered thermoset composite laminates gives designers a way to reduce wear, manage heat, and lower lifecycle cost without adding complexity. This article explains why, how to design them correctly, and practical rules-of-thumb you can use today.

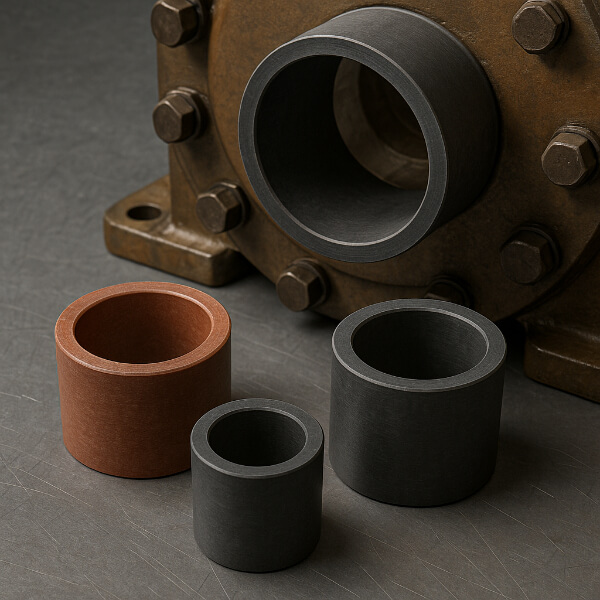

Thermoset composite laminates combine a cured resin matrix (phenolic or epoxy, for example) with reinforcing fibers or fabrics. The result is a material family that resists creep at load, tolerates shock and edge loading, and preserves dimensional stability at elevated temperatures better than many thermoplastics. Compared with metals, engineered composites offer intrinsic vibration damping and electrical insulation, and they can be tailored for self-lubrication or to accept external cooling media.
Practical advantages you’ll notice on the job:
Higher sustained compressive strength under continuous load.
Lower wear rates when paired with hardened shafts and appropriate lubrication.
Better thermal isolation when heat transfer to adjacent structure must be limited.
Customizable friction characteristics — from oil-wetted to permanently lubricated surfaces.
Not all composites are the same. When specifying a sleeve bearing, consider these dimensions of material choice:
Base resin system: Phenolic resins are well known for compressive strength and heat tolerance; epoxy-glass systems offer higher toughness and moisture resistance in some formulations.
Reinforcement type: Woven cotton or glass fabrics, or filled phenolics, can change bearing wear behavior and friction. Graphite or other solid lubricants can be integrated to build a self-lubricating layer.
Surface finish and machining: Final bore configuration and surface polishing determine initial break-in friction and leakage for lubricated designs.
Environmental exposure: If the bearing sees seawater, aggressive chemicals, or wide humidity swings, choose formulations tested for those conditions.
Takeaway: match the resin and filler package to the mechanical, chemical, and thermal demands rather than choosing by price alone.
Correct dimensional allowances are the single most effective step to guarantee bearing life. Below are engineering rules-of-thumb you can apply during early design or in a retrofit.

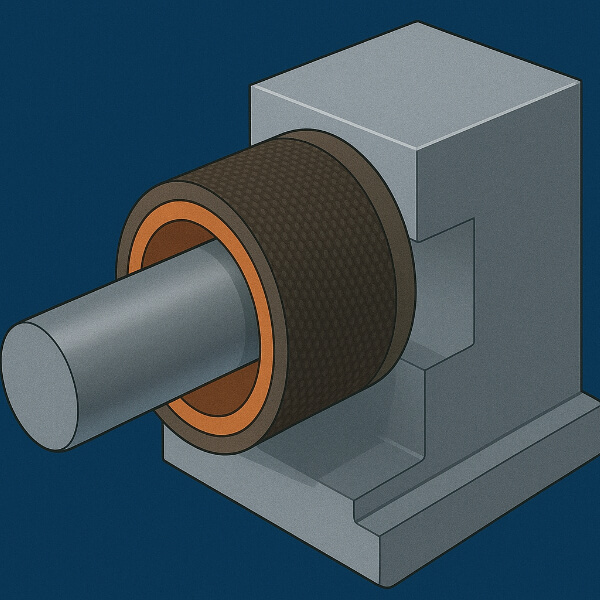

Allow a small radial gap between shaft and bearing to enable lubricant film and thermal growth. A practical guideline is to set clearance proportionally to shaft diameter: approximately 0.001 inch per inch of shaft diameter, with a minimum practical clearance of 0.005 inch to accommodate machining tolerances and initial break-in.
Example: for a 3.750 inch shaft: 3.750 × 0.001 = 0.00375 → add the minimum 0.005 → design clearance ≈ 0.009 inch. So the bearing bore should be about 3.759 inch.
Thermoset composites can absorb moisture and exhibit small dimensional changes. Allow for radial swelling roughly on the order of 0.010 inch per inch of bearing wall thickness (this is a conservative design allowance — check material supplier data for exact numbers). For a thin-walled bearing with 0.200 inch wall thickness, expect about 0.002 inch radial change and account for it when setting shaft-to-bore and housing dimensions.
If a bearing is captured axially (clamped at both ends) it needs room for expansion along its length. A useful rule is to permit about 0.005 inch per inch of captured length. For a bearing length of 4.000 inches that means roughly 0.020 inch of axial accommodation in the housing or via expansion joints.
Pair composite sleeves with hardened, smooth shafts. A hard shaft surface (through-hardened or induction-hardened as appropriate) resists groove wear and reduces the chance of embedded debris abrading the composite. Aim for a fine finish (low Ra) on journal surfaces to lengthen bearing life.
Composite sleeves are often better thermal insulators than metal bearings; that can be an advantage (protect nearby components) or a problem (local overheating). Manage temperature by design:
Active cooling: If the application generates heat under continuous load, consider oil flow channels or water cooling through the housing to extract heat.
Lubrication choices: Composites accept a wide range of lubricants — mineral oils, synthetic oils, and even water-film operation in specific formulations. For maintenance-free systems, use self-lubricating formulations with solid lubricants embedded in the matrix.
Temperature monitoring: For critical installations, integrate a temperature sensor near the bearing to catch adverse trends early.
Cooled or well-lubricated composite bearings run cooler, retain hardness, and exhibit less creep — all of which extend service life.
Self-lubricating composite bearings embed a lubricating phase (graphite, PTFE, or engineered polymer fibers) directly into the wear surface. They are particularly useful where periodic greasing is impractical or where lubrication contamination would harm the environment or product.
Benefits:
Reduced maintenance frequency or fully maintenance-free operation.
Predictable friction coefficients over long service intervals.
Improved shock-load tolerance compared with some solid lubricants.
Trade-offs to evaluate:
Lower maximum sliding speed in some formulations — confirm supplier S/v limits.
Slightly higher initial cost versus plain thermoplastics; lifecycle cost is typically lower.
If extreme cleanliness is required, verify any lubricant migration under the operating temperature range.
Composite sleeve bearings shine in industries and conditions such as:
Marine propulsion: where saltwater exposure and heavy radial loads require materials that won’t gall and can be engineered for corrosion resistance.
Heavy machinery and equipment: cranes, pumps, and conveyors that need shock resistance and long service intervals.
Electric motors and generators: where damping of vibration and electrical insulation are advantages.
Cryogenic or temperature-cycling environments: low thermal expansion variants of thermoset laminates preserve geometry across large temperature ranges.
Before you finalize a sleeve bearing procurement or drawing, run through this checklist:
Confirm static and dynamic load ranges, including shock loads and duty cycle.
Choose resin/filler combination for environmental exposure (humidity, salt spray, chemicals).
Specify running clearance and minimum machining tolerances for the bore.
Allocate swelling and axial growth allowances in the housing design.
Define shaft hardness and finish requirements.
Decide on lubrication strategy (external lubrication vs. self-lubricating).
Evaluate cooling needs for continuous high-power applications.
Request supplier test data for wear rate, compressive strength, and S/v limits.
Include serviceability notes: how to inspect, expected life, and replacement procedure.
Understanding how bearings fail helps prevent it: the common modes are surface abrasion, thermal softening, hydromechanical washing (loss of lubricant), and excessive creep. Prevent these by pairing composites with hardened shafts, managing heat, ensuring adequate lubrication film thickness, and keeping contaminants out of the oil/film interface.
When engineered and installed correctly, thermoset composite sleeve bearings offer a durable, lower-maintenance alternative for many heavy-duty and environmentally challenging applications. The key to success is selecting the right material system, allowing for realistic clearances and dimensional change, and adopting an appropriate thermal and lubrication strategy. With those elements in place, composite sleeves can reduce downtime, lower lifecycle cost, and deliver predictable performance under load.
