Cryogenic piping systems present a rare combination of mechanical and thermal engineering challenges. When pipelines carry fluids at temperatures approaching or below −196°C, every contact point becomes a potential source of heat gain, mechanical distress, or safety risk. Well-engineered supports must therefore do more than hold pipes in place: they must control movement, carry loads, and—critically—interrupt thermal paths that would otherwise undermine system performance. This article explains practical design principles and material choices for cryogenic pipe supports, focusing on how modern engineering plastics and composite laminates deliver durable thermal isolation without sacrificing structural reliability.
At cryogenic temperatures, even small amounts of heat transfer through a support can lead to insulation compromise, exterior condensation, ice buildup, or changes in fluid phase. Supports are also focal points for stress concentration during cooldown and warm-up cycles, and they must accommodate differential contraction between pipe, insulation, and the supporting structure. A support that performs well at ambient conditions may fail quickly in a cryogenic environment unless it deliberately limits conductive heat flow and withstands repeated thermal cycling.
A successful support design for cryogenic pipelines should meet three concurrent goals:
Maintain mechanical stability under static and dynamic loads (weight, wind, seismic, thermal stress).
Minimize thermal bridging between the cold pipe and warm structure to reduce boil-off and prevent condensation.
Withstand thermal cycling, abrasion, and exposure to industrial environments with low maintenance.
Balancing these objectives usually requires a hybrid approach: strong metallic frames for structural attachment combined with insulating interface components made from plastics or composites.
Selecting the right material for insulating blocks, pipe shoes, liners, and wear pads is decisive. Two broad families dominate successful designs: thermoset composite laminates and high-performance thermoplastics. Each group brings different strengths.

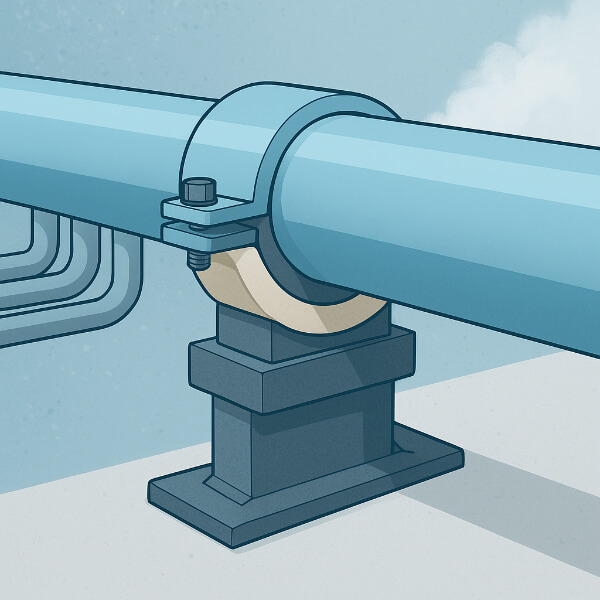

Glass-reinforced epoxy laminates and similar thermoset composites offer:
High stiffness and compressive strength that remain reliable at cryogenic temperatures.
Exceptional dimensional stability so parts keep their shape across many thermal cycles.
Low intrinsic thermal conductivity relative to metals, reducing conductive heat paths.
Good long-term creep resistance under sustained load.
These properties make thermoset laminates well suited for load-bearing insulating blocks, elevated pipe shoes, and structural interfaces that must preserve alignment and insulation continuity.

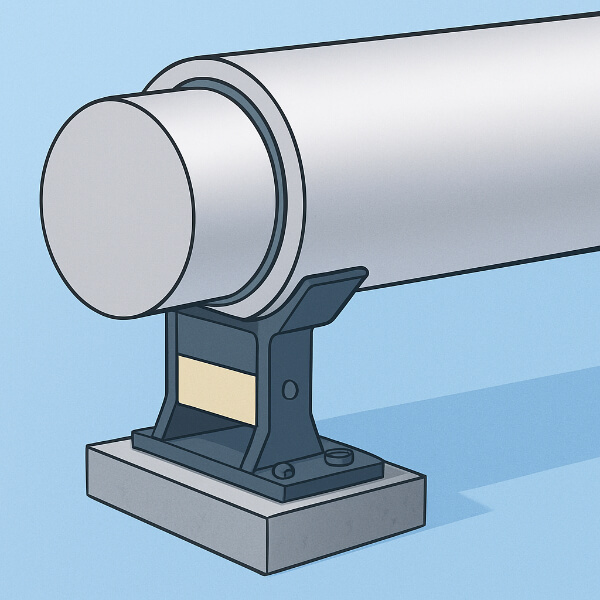

Polymers such as PEEK, PTFE, and ultra-high-molecular-weight polyethylene provide complementary benefits:
Low thermal conductivity combined with excellent toughness and impact resistance at low temperatures.
Chemical inertness that helps resist contamination from process gases or industrial aerosols.
Low friction and good wear behavior for sliding components, liners, and guides.
Ability to absorb differential movement without cracking or brittle failure.
Thermoplastics are commonly used where sliding, sealing, or repeated small-amplitude movements are expected, and where abrasion resistance helps preserve insulation cladding.
Insulating blocks and cold shoes: Typically fabricated from thermoset laminates or high-density composite plates to separate the pipe from steel supports and maintain the thermal envelope.
Pipe shoes and saddles: Composite or polymer shoes eliminate direct metal-to-metal contact and reduce conductive paths while supporting pipe weight and allowing cladding continuity.
Guides and sliders: Low-friction thermoplastics provide controlled lateral movement and prevent wear to pipe cladding during thermal contraction.
Seals and gaskets: Engineered thermoplastics or filled elastomers that remain flexible at cryogenic temperatures preserve vapor barriers around supports.
Segment the thermal path: Use layered materials and geometric breaks (air gaps, insulating spacers) to interrupt conduction. Avoid continuous metal paths across the cold-to-warm interface.
Protect vapor barriers: Design supports so insulation cladding and vapor seals can be continuous or easily re-sealed after installation. Wherever possible, eliminate the need to penetrate primary insulation with welded connections.
Allow for differential movement: Provide sliding interfaces, guided supports, and controlled gaps sized for expected thermal contraction to prevent unexpected loads on insulation or pipe.
Specify load margins and test credentials: Design insulating components with conservative safety factors and validate them with load-and-cycle testing that simulates operational conditions.
Minimize on-site work: Favor prefabricated composite shoes and modular insulating assemblies to reduce hot work and installation time, improving safety and maintaining insulation integrity.
Materials and assemblies intended for cryogenic service should be qualified through mechanical testing at operating temperatures, including:
Compressive and shear strength tests at cryogenic temperatures.
Thermal conductivity measurements of assembled interfaces.
Repeated thermal cycling under load to expose creep, cracking, or seal degradation.
Long-term exposure tests where chemical interaction with process fluids is a concern.
Documented test data is crucial for project acceptance and long-term reliability.
Composite and polymer supports generally reduce maintenance frequency by resisting corrosion and avoiding metal fatigue mechanisms common to steel supports. Nonetheless, periodic inspections should focus on:
Integrity of cladding and vapor seals near support points.
Evidence of local frost, water ingress, or ice accretion.
Wear of sliding surfaces and fasteners’ torque status.
Because composite and plastic components have different failure modes than metals (e.g., delamination or abrasion), inspection protocols should be tailored accordingly.
When cryogenic systems demand both structural performance and robust thermal isolation, combining engineered plastics and composite laminates with metal support frames offers a compelling solution. Thoughtful material selection, layered thermal breaks, and rigorous testing yield supports that preserve insulation integrity, reduce heat ingress, simplify installation, and extend operational life. For designers and operators, the value lies not just in lower boil-off or reduced icing, but in predictable, safer systems that require less maintenance and deliver consistent performance in the harshest thermal environments.
