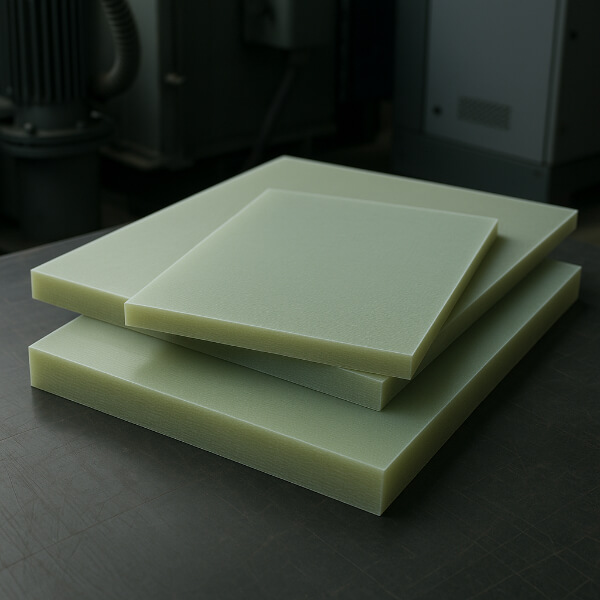

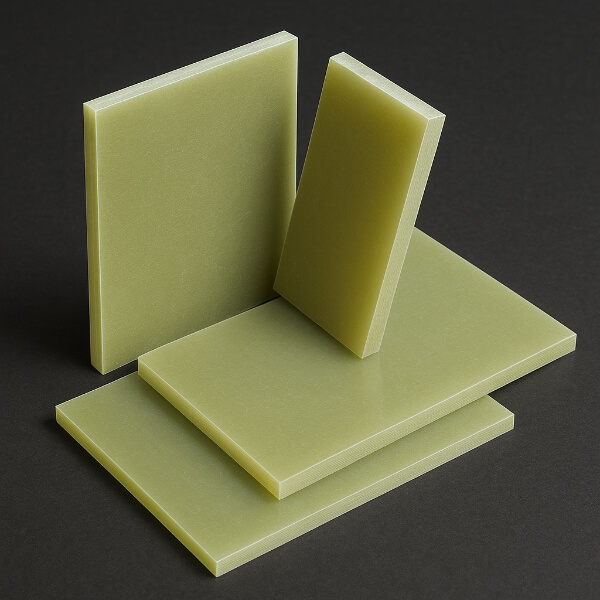

Epoxy glass sheets are engineered composite laminates made from woven glass fiber reinforcement bonded with an epoxy resin matrix. They combine stable mechanical strength with reliable dielectric behaviour, making them a practical choice wherever an engineered balance of insulation, rigidity and long service life is needed. This article explains what makes these laminates special, how to choose the right grade for a project, where they are used in industry, and practical guidance for design, machining and long-term performance.
Rather than competing purely on cost or appearance, epoxy glass laminates are selected for predictable, measurable performance. Key differentiators include:
Consistent dielectric behavior under load: Manufacturers characterize these sheets by parameters such as dielectric breakdown, surface resistivity and dissipation factor so designers can predict insulation performance under voltage, humidity and temperature cycles.
Combination of stiffness and toughness: The woven glass layers impart dimensional rigidity and fatigue resistance that softer thermoplastics cannot sustain in long-term structural applications.
Thermal dimensional control: Epoxy matrices with tightly controlled cure and fiber layup deliver low thermal expansion and reduced creep at elevated temperatures compared with many commodity plastics.
Compatibility with fabrication processes: Epoxy glass sheets accept precision machining, threaded inserts, and reliable adhesive bonding — useful when parts must integrate into metal frames or electrical assemblies.
Standard epoxy fiberglass laminates (general purpose): Good for mechanical supports, paneling and low-to-medium voltage insulating parts.
G-grades (e.g., G-10, G-11 family): Favoured where high mechanical strength and dimensional accuracy under stress are required; G-11 typically offers better performance at higher temperatures.
FR-grades (e.g., FR-4 family): Specified where fire performance and flame retardancy are mandated alongside electrical insulation — often used as PCB substrates or in enclosed electrical equipment.
Copper-clad laminates: When assemblies require printed circuitry, copper-bonded epoxy glass sheets provide a stable platform for trace etching.
Specialty formulations: Low-moisture, chemical-resistant, or filler-modified epoxy laminates can be specified for environments with oil, solvents, or continuous humidity.
Use epoxy glass laminates as insulating barriers, busbar support panels, and insulating end-plates inside switchgear and transformers. Their predictable dielectric properties simplify clearance and creepage design for medium-voltage assemblies.
Machine beds, guide rails, bearing pads and fixture plates benefit from the wear resistance and dimensional stability of epoxy glass sheets. Precision jigs and vacuum fixtures made from these laminates maintain tolerances through repeated cycles.
In rail, aerospace and specialized automotive systems, laminates serve as non-conductive structural mounts, connector housings, and shielding barriers where weight and electrical safety must be balanced.
Epoxy glass plates are used for inverter insulators, mounting substrates for power modules, and structural supports in photovoltaic junction boxes and EV charging stations, where thermal cycling is common.
Seals, spacer washers, actuator mounting plates and electrically insulating sleeves fabricated from specialty laminates resist oil, moderate chemical exposure and mechanical load in control systems.
Certain G-grade laminates retain strength and low thermal expansion at cryogenic temperatures, making them suitable for sensor supports, insulated feedthroughs and structural members in low-temperature systems.
Because they machine cleanly and bond reliably, epoxy glass sheets are chosen for instrument supports, insulating fixtures in high-voltage test rigs, and chemically resistant panels in lab apparatus.
Plan fastener layout for peel and shear: Use countersunk fasteners sparingly; where possible distribute clamping to avoid point loads that cause delamination. Design pads or backing plates if concentrated loads are unavoidable.
Drilling and cutting best practices: Carbide tools with positive rake, moderate feed rates and peck cycles for deep holes minimize delamination. Use chip evacuation and consider sacrificial backing to protect the exit surface.
Threading and inserts: For repeated assembly cycles, use threaded metal inserts or bonded studs rather than tapping thin sheets directly. Epoxy glass holds bonded inserts well when bonded with structural adhesives.
Surface treatment for bonding: Light abrasion and appropriate primer selection improve adhesive performance; solvent cleaning should match the resin system’s compatibility.
Thermal management: When used near heat sources, provide ventilation or thermal breaks; compare the laminate’s Tg (glass transition temperature) to expected operating temperatures.
Electrical clearances: Calculate creepage and clearance distances using the laminate’s published comparative tracking index (CTI) and dielectric properties, and include a safety margin for humidity and contamination.
Electrical requirements: breakdown voltage, surface resistivity, CTI.
Mechanical needs: flexural modulus, tensile strength, allowable deflection.
Thermal limits: continuous operating temperature and Tg.
Environmental exposure: oils, fuels, solvents, UV, or salt fog.
Fire and safety standards: UL94 rating or other regional certifications.
Fabrication methods: will you machine, laser cut, or need copper cladding?
Lifecycle concerns: expected cycles, maintenance access, and repairability.
Epoxy glass laminates are durable but not immune to degradation. Inspect for edge fraying, delamination at fastener points, and surface tracking in high-voltage environments. In corrosive atmospheres, apply protective coatings or select a laminate with enhanced chemical resistance. When repairs are necessary, bonded patches or mechanically anchored overlays extend service life without replacing entire assemblies.
