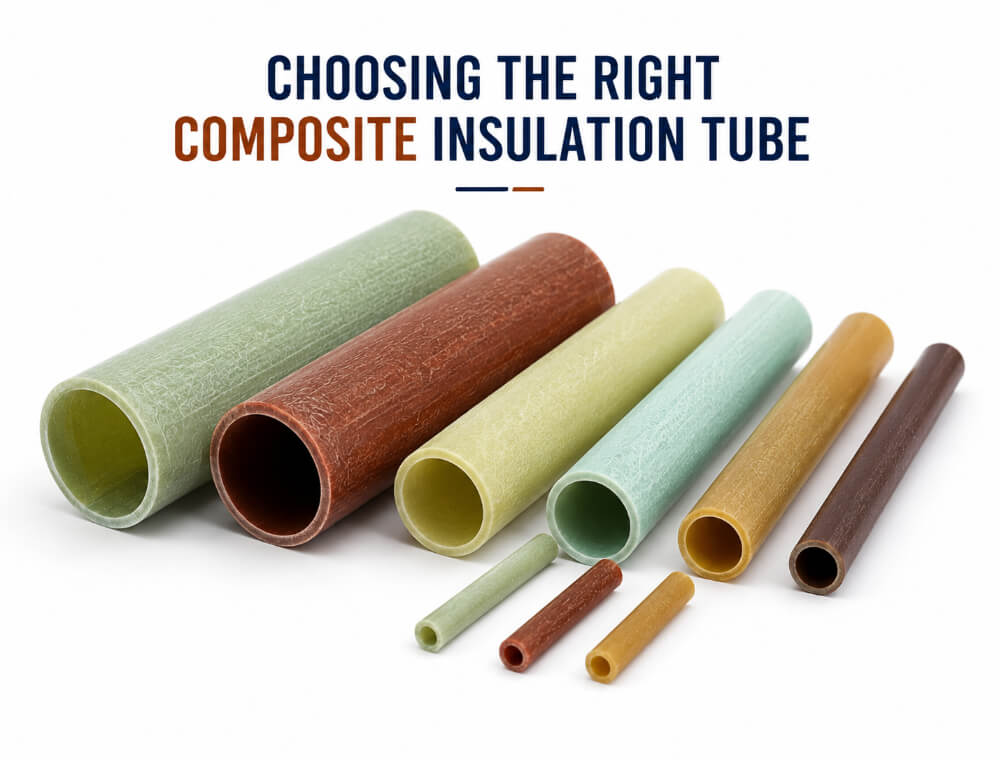

When you open a high-voltage switchgear or pull apart a welded assembly, you often find a humble yet critical component: a composite insulation tube. Engineers usually specify them by NEMA grades like G10, G3, G7, or simply “phenolic tube.” But picking the wrong one can lead to tracking, mechanical failure, or even fire.
I’ve seen people treat G10 and G3 as interchangeable – they’re not. Let’s cut through the datasheets and talk about what actually works in the field, from offshore platforms to EV fuse holders.

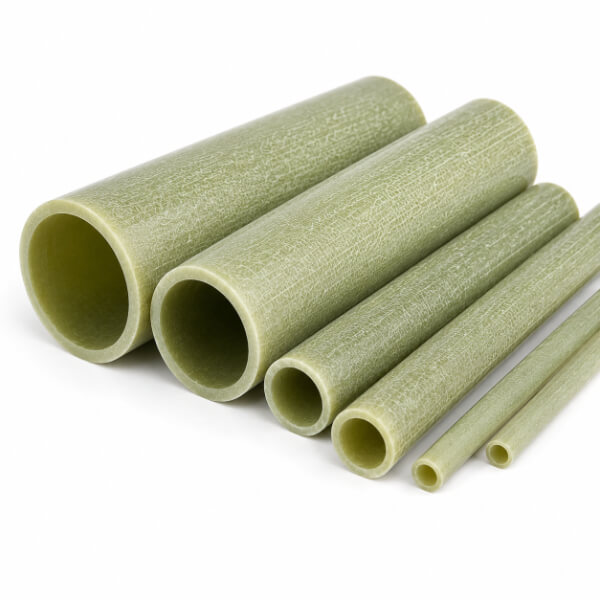

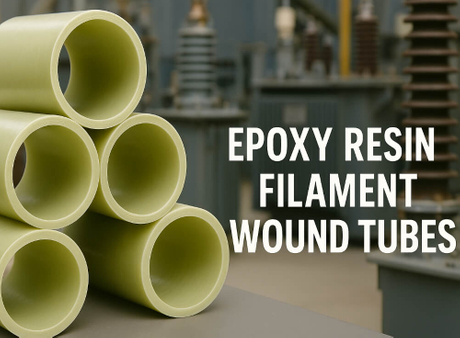

If you need a tube that combines high mechanical strength with excellent moisture resistance, you’ll land on epoxy glass. G10 is the baseline: it machines cleanly, doesn’t absorb water easily, and holds up under vibration. That’s why shipbuilders use it for deck insulation and electrical mounting plates – salt spray and humidity don’t kill it.
G11 takes the same concept but pushes the thermal limit higher. Think turbine enclosures or avionics bays where ambient heat creeps above 140°C. G11 keeps its structural integrity longer.
Now FR-4 is the fire-safety sibling. It has the same epoxy glass base but with a UL 94 V-0 rating. That means if a short circuit occurs, the tube won’t propagate flames. You see FR-4 in PCB test fixtures, coil formers, and industrial control panels where fire codes are strict. Wind and solar farms also use it for junction box insulation – because nobody wants a smoldering failure inside a fiberglass nacelle.
Field rule: If moisture or mechanical stress is your main worry, pick G10. If heat is the problem, go G11. If you must meet fire safety standards, FR-4 is the only choice.

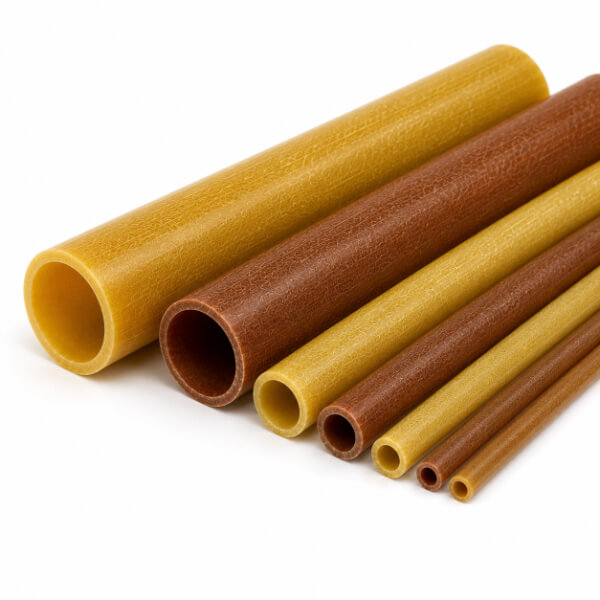

G3 is a different beast. It uses phenolic resin with glass reinforcement. The result? Higher heat resistance than standard epoxy, plus excellent wear resistance. I’ve seen G3 tubes used as motor slot wedges, relay spacers, and even low-speed bushings in industrial ovens.
What surprises most engineers is that G3 holds up against mild chemicals and abrasive dust. A sealing ring made from G3 will outlast G10 in a dry, hot, gritty environment like a cement plant. But there’s a trade-off: G3 is more brittle than epoxy glass. It won’t flex; it will crack under sharp impact. So use it for compression loads and static insulation, not for dynamic bending.
Phenolic tubes (the generic ones, often paper or fabric based) are the economical cousins. They offer decent electrical insulation at a fraction of the cost. You’ll find them in low-voltage coil forms, welding gun handles, and simple structural spacers. But don’t put them in high-humidity zones – cheap phenolic absorbs moisture over time and loses dielectric strength.
G7 is a specialty tube that doesn’t get enough attention. The silicone resin matrix gives it two superpowers: continuous operation above 200°C (sometimes up to 220°C) and outstanding arc resistance. Arc tracking is a common failure in dusty, high-voltage environments – silicone glass resists it naturally.
Where does G7 shine? Electric furnace insulation, welding torch nozzles, heat gun tips, and circuit breaker arc chutes. Anywhere a stray spark would normally carbonize epoxy or phenolic, G7 stays clean. It’s also used for high-frequency coil bobbins because its dielectric properties remain stable up to MHz ranges.
Warning: G7 is softer than epoxy glass during machining. It can fuzz or smear if your tooling isn’t sharp. But for H-class insulation (220°C rated), it’s often the only practical solution.
Now we get to the most misunderstood family: melamine glass tubes, grades G5 and G9. Their claim to fame is extreme arc resistance combined with high mechanical hardness. In practice, that means they are the go-to material for fuse bodies and fuse holders – especially in DC circuits where arcing is more persistent than AC.
G5 is the standard grade. Walk into any industrial fuse manufacturing line, and you’ll see G5 tubes being cut into short lengths for mid-voltage fuses. It doesn’t track, it doesn’t degrade under repeated fault interruption, and it machines cleanly.
G9 is the upgraded version. The same melamine resin but with better weatherability and chemical resistance. Outdoor switchgear, solar combiner boxes, and EV charging station fuses often specify G9 because of UV exposure and condensation cycles. I’ve also seen G9 used in high-voltage DC relays for electric vehicles – those compact, sealed units that disconnect the battery pack. The arc flash inside a DC relay is violent; G9 handles it better than almost any other thermoset.
If you are designing for a harsh environment (dust, salt, temperature swings) and need a fuse tube that won’t fail after a few operations, skip G5 and go straight to G9.
Here’s how I tell clients to decide:
High mechanical + moisture → G10 or G11
Fire safety required → FR-4
Hot + abrasive + compression → G3 (phenolic glass)
Extreme heat + arc risk (no moisture) → G7 (silicone glass)
Fuses, DC relays, outdoor switchgear → G5/G9 (melamine)
Cheap general-purpose insulation → generic phenolic tube
One last practical tip: always check the manufacturer’s actual test data—reputable suppliers of G10, G11, FR‑4, G3, G7, G5, G9, and phenolic tubes all deliver outstanding performance when manufactured to spec. Each grade has its own strengths: G11 excels in sustained heat, G10 in moisture‑resistant mechanical duty, FR‑4 in flame safety, G3 in wear and thermal resistance, G7 in extreme‑temperature arc protection, and melamine‑based G5/G9 in DC arcing and harsh outdoor environments. Even standard phenolic tubes offer reliable, cost‑effective insulation for general use. The key is to match the material to the failure mode you fear most—moisture, heat, arc tracking, or mechanical shock—and always request water absorption numbers if your application involves continuous high voltage in a humid environment. Do that, and any of these quality composite tubes will help your design last decades instead of months.
