Cryogenic Glass Epoxies in Fusion, Maglev, and Beyond

When you picture a magnetic levitation train gliding above its track or a fusion reactor trying to bottle a miniature sun, you probably imagine massive superconducting coils, powerful electromagnets, and maybe a few physicists holding clipboards. What you don’t picture is a humble sheet of reinforced plastic. But that’s exactly what holds the whole thing together—literally.

Cryogenic glass epoxy laminates are the behind-the-scenes heroes of some of the most advanced systems humans are building today. They don’t grab headlines. They don’t look futuristic. Yet without them, superconducting magnets would crack, electrical insulation would fail, and multi-billion-dollar projects would grind to a halt.

What happens at near-absolute-zero?

Most people know that superconductors need extreme cold—think 4 Kelvin (-269°C) or even lower. What’s less discussed is how ordinary materials behave at those temperatures. Metals become brittle. Plastics shatter like glass. Even some high-performance composites give up.

But not specially formulated glass epoxies.

Here’s a little insider truth: many standard epoxy datasheets stop at -55°C. That’s not because the resin can’t go lower. It’s because most lab testing equipment simply doesn’t go further. In reality, cryogenic epoxies continue to function all the way down to liquid helium temperatures. Yes, even approaching absolute zero.

Now, does the material change? Absolutely. As the temperature drops, the epoxy gets stiffer—its modulus increases. That can lead to brittleness if you’re not careful. But engineers have solved this by developing lower-modulus formulations that stay flexible enough to avoid stressing the bonded components. They don’t become rubbery, obviously. But they don’t become shrapnel, either.

Where are these composites actually used?

Let’s walk through the big ones.

Fusion energy – This is the most extreme case. Inside a magnetic fusion reactor (like a tokamak), superconducting magnets must hold plasma heated to sun-like temperatures. But the magnets themselves are icy cold, just a few degrees above absolute zero. Meanwhile, they’re bombarded with radiation—up to 2 billion rads. They also have to handle peak voltages around 10 kV. That’s a brutal combination of cold, radiation, and electrical stress. Only a cryogenic-grade glass epoxy laminate can insulate those magnets while keeping them mechanically sound year after year.

Magnetic levitation trains – Maglev systems rely on superconducting magnets to lift and propel heavy train cars at high speeds. The cryogenic environment inside those onboard magnets is unforgiving. Vibration, thermal cycling, and constant electromagnetic forces mean any insulation failure would be catastrophic. Glass epoxy laminates act as the silent structural backbone that keeps everything aligned and electrically isolated.

Particle accelerators and high-energy physics – From CERN’s Large Hadron Collider to smaller synchrotrons, cryogenic sections need materials that won’t outgas, crack, or conduct stray currents. These laminates are often the go-to choice for coil spacers, formers, and insulating supports.

Superconducting power equipment – Think fault current limiters, energy storage coils, and superconducting transformers. All of them run at cryogenic temperatures. All of them need reliable electrical insulation that also provides mechanical rigidity.

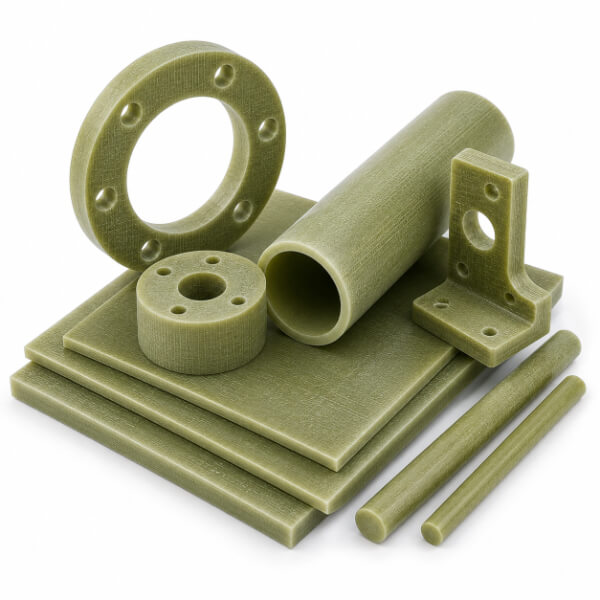

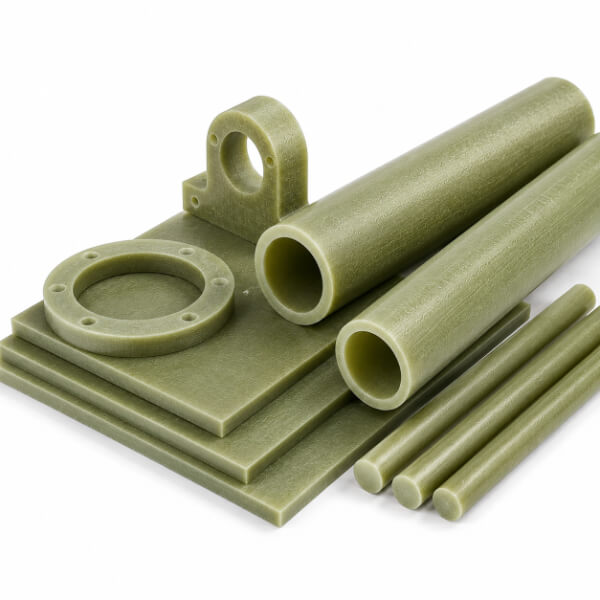

A few real-world product types

If you’re sourcing cryogenic-grade glass epoxy laminates, you don’t always need exotic “CR” variants. Some standard industrial grades perform surprisingly well at near-absolute-zero temperatures – provided you know which ones to pick.

From the common NEMA family, G10 and G11 are the usual suspects. While off-the-shelf G10 can become brittle below -100°C, specially processed versions (sometimes called G10CR) are a different story. Standard G10 is generally not advised for serious cryogenic work unless the supplier has verified its low-temperature properties. G11, with its higher glass transition temperature and better radiation resistance, is often a safer bet – many fusion and accelerator projects use a cryogenic-grade G11.

Among the IEC / European grades (EPGC series), the following have been used successfully in liquid nitrogen and liquid helium environments:

• EPGC201 – Similar to NEMA G10. Requires cryogenic-specific verification.

• EPGC202 – Closer to G11; better thermal stability.

• EPGC203 – A fine-weave glass fabric grade with lower thermal expansion, often chosen for superconducting coil spacers.

• EPGC205 – High-mechanical variant; suitable for structural cryogenic insulation if processing controls are tight.

What should you avoid? FR-4 and FR5 are not cryogenic-friendly – their flame-retardant additives and higher moisture absorption cause micro-cracking during thermal cycling. G15 (epoxy woven fiberglass) also doesn’t belong here; its flexibility at room temperature turns into unpredictable behavior at 4K. EPGM203 (glass mat) and EPGC301 (high-temperature epoxy) are not designed for extreme cold – their CTE mismatch with copper is simply too large.

The bottom line: even among apparently similar grades, cryogenic suitability is not guaranteed. Always ask for low-temperature test data (down to 4K or 77K) and pay close attention to CTE matching with the superconductor (copper or Nb3Sn) and radiation resistance if you’re heading into a fusion or accelerator environment.

Why this matters beyond the lab

Here’s the thing: we keep talking about clean energy from fusion, ultra-fast ground transport with maglev, and next-generation particle physics. Those conversations are inspiring. But they’re also incomplete if we ignore the materials that make them possible.

Cryogenic glass epoxies won’t ever be sexy. You won’t see a TED Talk about a polymer composite. But the next time you read that a fusion reactor reached a new plasma confinement record or a maglev train hit 600 km/h, you’ll know there’s a quiet layer of reinforced epoxy holding the cold, powerful heart of that machine together.

And it’s not just one magic material. It’s knowing which variant works at 4K – whether it’s a properly processed G11, a low-CTE EPGC203, or a radiation-tolerant EPGC205. Pick the wrong one – say, a standard FR-4 – and you’ll get micro-cracks after the first thermal cycle. Pick the right one, and it will outlast the magnets themselves.

That’s why this isn’t just a niche technical detail. As superconducting technologies move from billion-dollar labs into commercial power grids and transportation systems, the demand for reliable, proven cryogenic laminates will only grow. The engineers who design these systems know it. The procurement teams sourcing G10CR, EPGC202, or G11 with verified low-temperature data know it. And now, hopefully, you do too.

So the next time someone asks what enables the future of energy and travel – sure, point to the superconducting coils. But also point to the unassuming sheet of glass epoxy sitting between them. That’s where the real work gets done.
