When a piece of equipment fails in the middle of a production run, the investigation rarely stops at the operator’s logbook. More often than not, it traces back to a material that looked right on paper but couldn’t hold up against the actual conditions downhole or on the pipeline. That reality has driven the oil and gas industry toward a broad family of glass‑reinforced epoxy composites—materials that come not just as flat sheets but as tubes, rods, and custom‑moulded components, each suited to a different set of stresses.

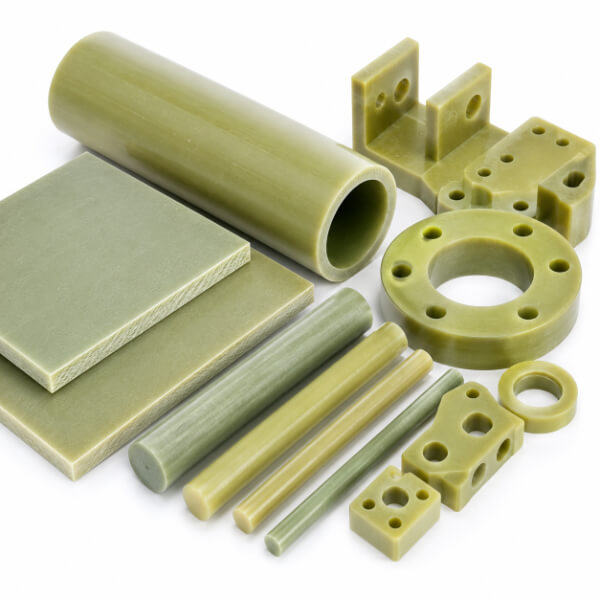

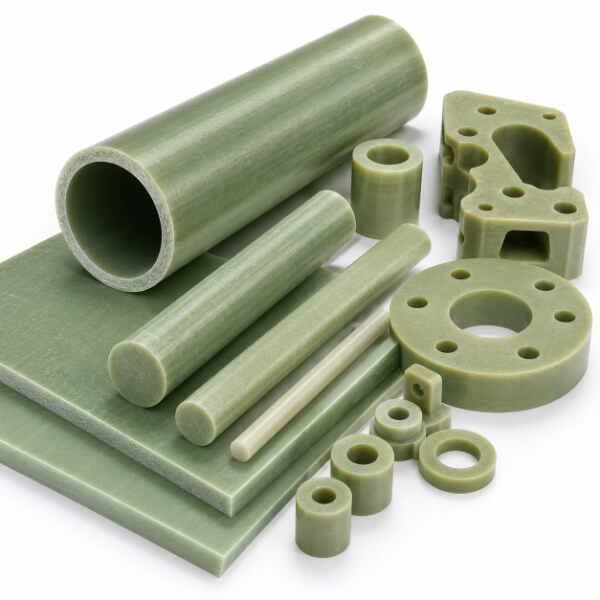

At their heart, glass‑epoxy composites combine woven glass fabric with an epoxy resin system. The glass provides strength and stiffness; the epoxy binds everything together, protects against moisture and chemicals, and offers reliable electrical insulation. Depending on how they are manufactured—whether pressed into sheets, pultruded into tubes, or machined from solid blocks—these materials can be shaped into everything from thin isolation washers to thick‑wall casing components over two feet in diameter.
The three most common grades—G10, G11, and FR4—share the same basic chemistry but diverge in performance. G10 is the workhorse: balanced mechanical and electrical properties for general service. G11 adds heat resistance, holding its strength at higher temperatures. FR4 brings flame retardancy, self‑extinguishing when exposed to fire. None of them is inherently a “laminate” in the narrow sense; they are composite systems that happen to be supplied in multiple forms.
The borehole environment is a punishing mix of high temperature, high pressure, and corrosive brines. Glass‑epoxy composites have earned a reputation here, particularly in fracturing and completion tools. You will find them machined into frac plug cones, mandrels, setting rings, mule shoes, and load rings. In cementing operations, they serve as wiper plugs and guide shoes.
What makes them work is their resistance to the oils, acids, and saltwater that circulate during drilling and production. Unlike some metals, they do not corrode galvanically, and they maintain enough compressive strength to hold seals even under extreme loads. For measurement‑while‑drilling (MWD) and logging‑while‑drilling (LWD) tools, the electrical insulation becomes equally vital—battery tubes and isolator housings made from G10 or FR4 protect downhole electronics from short circuits while surviving continuous vibration.
Pipelines present a different threat: stray electrical currents that cause galvanic corrosion between dissimilar metals. This eats away at flanges and fittings, undermining cathodic protection systems. The fix is isolation—and glass‑epoxy composites are the standard material for flange isolation kits.
These kits include gaskets, bolt sleeves, and isolation washers, typically cut from sheet stock or moulded into net shapes. The composite creates a complete electrical break while maintaining pressure integrity. For hydrocarbon service up to 200°C, G11 grades take over, because they retain their mechanical properties when G10 would soften. The lower permeability of these epoxy‑based materials, compared to older phenolic alternatives, means longer service life with less risk of leakage over time.
Liquefied natural gas operations push materials into a regime that most composites cannot handle. At −196°C, many polymers turn brittle and lose structural capacity. Glass‑epoxy composites—specifically cryogenic grades like CRYO G‑10—behave the opposite way.
Testing has shown that as the temperature drops from room conditions down to −196°C, the compressive strength actually increases. At ambient temperature, it measures around 583 MPa; at −100°C, it climbs to 826 MPa; and at the boiling point of LNG, it reaches 974 MPa. This unusual property, combined with low thermal conductivity (about 0.235 W/m°C), makes these materials ideal for LNG pipe supports, thermal barriers, bearing raceways, and even turboexpander components—a role they have filled reliably since the 1960s.
Water absorption is often the hidden enemy. Even small amounts of moisture can degrade dielectric strength and, over years, weaken the glass‑resin bond. Glass‑epoxy composites typically absorb less than 0.15% after 24 hours of immersion, and some specialised grades do even better. This low uptake allows them to perform in subsea cable connectors, underground drain piping, and transformer bushings without losing their mechanical or electrical edge.
In sour environments where hydrogen sulphide is present, performance depends on the resin formulation. While standard grades are generally resistant, extended exposure at high temperatures may require modified epoxy systems or a switch to alternative materials—a reminder that no single composite fits every well.
Selecting the right composite for an oil‑and‑gas application is never about picking the “best” material in isolation. It is about matching the properties to the specific environmental envelope—temperature range, pressure cycles, fluid composition, mechanical loads, and fire safety requirements.
For general electrical and mechanical isolation at moderate temperatures, G10 offers a reliable, cost‑effective choice. When the thermometer climbs above 150°C, G11 provides the extra thermal margin. If fire ratings are mandatory, FR4 covers that requirement without sacrificing the core mechanical performance. For cryogenic LNG service, a cryogenic‑grade G10 is the proven workhorse.
The oil and gas industry has learned that material selection is not a one‑time decision. It is an ongoing process of matching composite capabilities to evolving operating conditions—whether that means a simple isolation washer on a surface pipeline or a complex completion tool two miles underground. By understanding what each composite can and cannot do, engineers can specify materials that not only survive but perform consistently, year after year, in the harshest environments on the planet.
