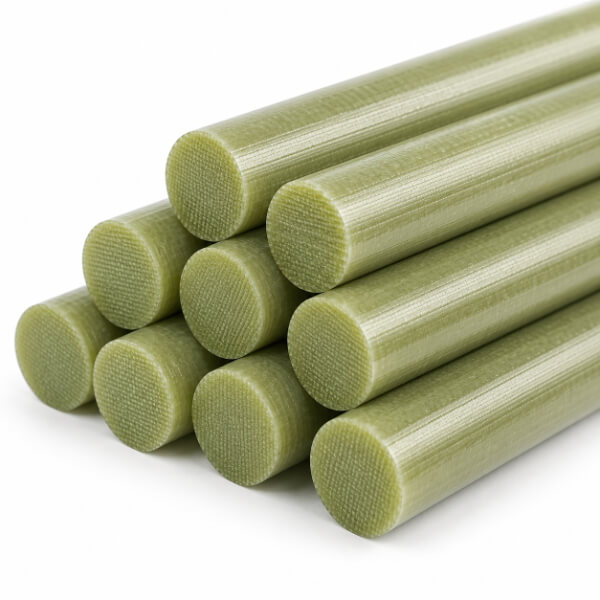

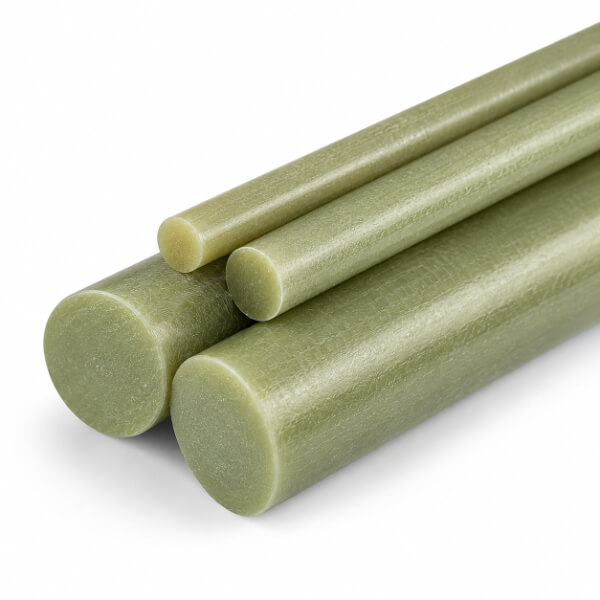

You’ve machined plenty of composite sheets. You know how to avoid edge chipping and delamination. But when you switch to round stock — G10, FR4, phenolic, epoxy laminates — the rules change.
Sheets fail by splitting apart. Rods fail by going out of true. You can’t always see it. The surface looks clean, but the part is no longer round. The center has drifted. And by the time you measure it, the tolerance is gone.
Here’s what actually works to hold geometry on thermoset composite rods, without guessing or scrapping parts.
A molded composite rod is rarely perfectly round from the factory. If you indicate directly on the as‑received surface, you’re measuring the error, not correcting it.
Take a light skim cut first.
That pass creates a real, machined reference surface. Then indicate from that surface before your finishing pass. Otherwise you’re chasing a shape that doesn’t truly exist.
Here’s something many machinists learn the hard way:
Crank down the chuck too hard, and the rod ovalizes. It happens instantly. Then when you release the part, it relaxes into a different, non‑round shape. Your size and concentricity are both ruined.
What to do instead:
Switch to soft jaws or a collet. They spread pressure evenly.
Use the lowest clamping force that still holds the work.
Whenever possible, finish the whole part in one setup from one reference surface. Each time you re‑chuck, you add error.
If flat laminates delaminate, round stock distorts. It’s that simple.
Deflection becomes your main enemy once the length‑to‑diameter ratio climbs. The rod wants to whip, taper, or push away from the tool.
Use live centers, steady rests, or follower rests — whatever your lathe has. They stop the part from vibrating or bending under cutting force.
For thin‑wall tubes or bored rods, don’t rely on the OD alone. A mandrel or arbor supports the internal diameter and keeps the ID and OD coaxial. Otherwise the bore and outer surface will drift apart.
Sharp tooling is non‑negotiable. You want carbide with a positive rake and plenty of clearance. That combination shears the fibers cleanly instead of crushing them.
Watch your nose radius:
Too large → high radial pressure → the rod gets pushed off‑center.
Too small → rough, ragged finish.
There’s a sweet spot. Test a couple of radii on scrap before running good material.
Don’t try to finish from raw stock.
Roughing passes remove the outer skin and the natural ovality of the rod. Leave a consistent allowance — usually 0.3–0.5 mm per side depending on diameter.
Then run a single, continuous finish pass. No stopping mid‑cut. No dwell. Pausing lets the tool rub and the material relax, which kills concentricity.
If your lathe has constant surface speed (CSS), turn it on. It maintains even cutting conditions across the whole diameter.
Heat is also a problem. Resin smears, dimensions grow unpredictably. Use an air blast or light mist. Don’t rely on flood coolant unless you can keep it consistent — thermal shocks cause trouble.
Turned composite rod often shows fiber texture. That’s normal.
If you need a smoother finish, you can sand or use centerless grinding — only with full support. Sanding without backing will round off corners unevenly and destroy roundness.
Deburr edges lightly. Over‑aggressive chamfering creates a local stress point, and the corner can chip. A tiny 45° break is plenty.
On metal, a dull tool leaves a rough surface. On composites, a dull tool increases cutting pressure. That pressure goes straight into deflection and concentricity loss.
Change or index your inserts before you see visible wear. Don’t wait for a failure. Track tool life by part count or cutting time.
Don’t check roundness on the same chuck marks that might be distorting the part.
Two reliable methods:
Between centers (using the same centers you machined with)
On V‑blocks, referencing your original machined datum
If you measure while the part is still clamped, you’ll miss the relaxation error. Always measure free‑state unless your drawing says otherwise.
Turning thermoset composite rods isn’t about heavy cuts or high speeds. It’s about pressure control, rigid support, and disciplined verification.
When you manage clamping force, support the work properly, use the right tool geometry, and inspect against a true reference surface, roundness and concentricity become repeatable — not a gamble.
