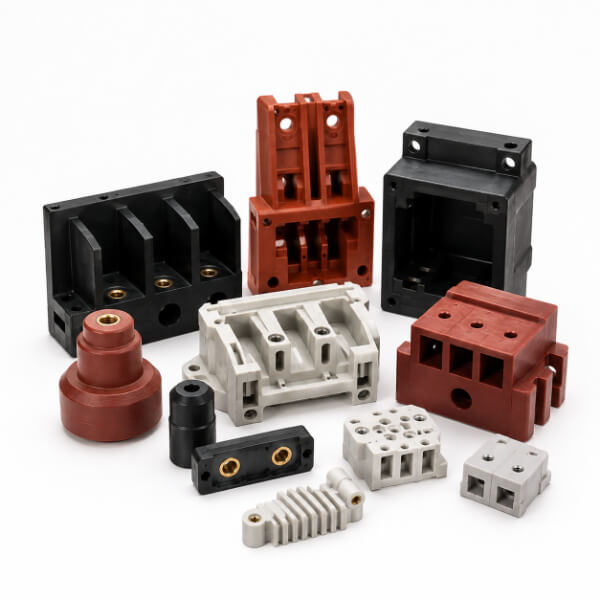

Scan a parts list for a low-voltage switchboard and you will find a familiar cast of characters: stand-off insulators, arc chutes, contactor housings, terminal blocks, phase barriers. Some are cut from laminated sheet. Others — usually the three-dimensional ones, the ones with ribs, bosses, threads, and embedded brass — are molded from a compound that arrives at the factory looking like dough or putty and leaves as a rigid, flame-retardant, track-resistant engineering part.
That compound goes by two names. In older European drawings it is DMC, dough molding compound. In American datasheets and most modern specifications it is BMC, bulk molding compound. Buyers routinely ask whether they are two different materials, and the honest answer is: they started as one, split into two, and have largely merged again — and the reason for that round trip is a chemistry trick worth understanding before you specify either name on a drawing.
Fiber-filled polyester compounds were first commercialized in the late 1950s and 1960s, in Britain and West Germany, as DMC. The early material was exactly what the name implies: a sticky, dough-like mass of resin, filler, and short glass fibers, sticky enough to soil hands and equipment, unstable enough in viscosity to make metering a chore. It pressed into good electrical parts, but processors tolerated the material more than they enjoyed it.
The material spread to the United States, where the industry renamed it bulk molding compound — and then changed it chemically. The pivotal move was chemical thickening: magnesium oxide (or, in some formulations, other alkaline agents) blended into the resin so that over hours the entire mass thickens irreversibly from a tacky dough into a leather-like, non-sticky solid. That single change transformed everything downstream — metering, storage, mold charging, and eventually injection molding — and the upgraded, thickened material became what the market now calls BMC.
Most introductions list the ingredients and move on. The more useful exercise is asking why each ingredient is there, because every one of them is a lever that a formulator pulls to trade cost against performance.
| Ingredient | Typical Share by Weight | What It Does |
| Unsaturated polyester (or vinyl ester) resin | 15–30% | The thermosetting matrix. Cures by free-radical crosslinking into a permanent, non-melting network. Vinyl ester upgrades chemical and hydrolysis resistance. |
| Chopped glass fiber (6–12 mm typical) | 10–25% | Structural reinforcement. Length is a compromise: longer fibers carry more load but flow and meter poorly and break in injection. |
| Mineral filler — calcium carbonate, alumina trihydrate (ATH) | 40–60%, often the majority of the compound | Controls cost, shrinkage, and specific gravity. ATH is the clever one: it releases water of crystallization under flame, so it doubles as the flame retardant and raises tracking performance. |
| Low-profile / low-shrink additive | 3–8% | A thermoplastic (polystyrene, PVAc, or similar) that phase-separates during cure and compensates for resin shrinkage — the difference between parts that warp and parts that hold dimension. |
| Thickener (magnesium oxide) | <2% | Reacts with the polyester to raise viscosity over days, converting dough to leather. The ingredient that quietly created the BMC era. |
| Initiator, inhibitor, release agent, pigment | Small fractions | Cure timing at molding temperature, pot-life control, clean ejection, and integral color — molded parts are colored in the compound, not painted afterward. |
Two consequences of this recipe surprise newcomers. First, the filler, not the resin or the fiber, is the largest fraction — an electrical-grade BMC is, by weight, mostly stone. That is why it is dense (1.8–2.0 g/cm³), economical, dimensionally stable, and self-extinguishing all at once. Second, the ATH filler is the reason a well-formulated electrical BMC posts a comparative tracking index of 500–600 volts: the material resists forming carbonized conductive paths on its surface not because of the resin but because of the mineral load around it.
It is worth pausing on chemical thickening, because it is the most under-explained aspect of the whole BMC story. The magnesium oxide does not merely "dry" the compound. It reacts with the acid groups in the polyester chain, building ionic bridges that raise viscosity from a soft paste toward a stiff, taffy-like state over one to several days at controlled temperature. The material arrives at the processor in that window — pliable enough to deform under molding pressure, stiff enough to handle cleanly.
What that unlocked, in practice:
Pre-weighed slugs and logs. A consistent, non-sticky solid can be extruded into logs and cut into accurately weighed charges — the precondition for shot-to-shot consistency in molding.
Injection molding of a thermoset. A stuffer feeder can now push a room-temperature solid into a screw or plunger without the compound flowing erratically or sticking to the feed throat. Cycle times dropped from minutes toward tens of seconds, which opened BMC to high-volume electrical and automotive work.
Cleaner molding shops. Solvent cleanup of tacky dough off tools and hands is a cost and an environmental headache; leather-like compound simply is not that problem.
Shelf discipline. Thickened compound continues to age, so storage temperature and rotation matter — but the viscosity plateau is predictable, and reputable suppliers mold-date their batches accordingly.
None of this is exotic chemistry. It is one additive doing one job. But it is the reason the material that began as a British dough is today injection-molded by the millions into circuit-breaker housings on three continents.
The same compound can be processed three ways, and the choice leaves fingerprints on the finished part.
A pre-weighed charge (often preheated by radio frequency) is placed in a matched metal mold at roughly 140–160°C and pressed at pressures commonly in the 5–10 MPa range until cure completes. Compression preserves fiber length best and suits larger, flatter parts. Its limitation is geometric: deep ribs, thin cores, and complex coring are harder to fill evenly, and every part needs manual or robotic charge placement.
The charge is loaded into a pot and pushed through runners into a closed cavity. Transfer fills intricate geometries and is the classic route for parts with delicate metal inserts — threaded brass bushings, contact carriers — because the inserts can be pre-positioned in the closed mold rather than pressed into an open one. The toll is fiber damage in the runners: some strength is spent buying geometry.
BMC injection machines use a stuffer to force the thickened compound into a screw or plunger, which meters it into the mold. This is the highest-volume route and the natural home of small, intricate electrical parts — bobbins, connectors, breaker components. It is also the route where fiber attrition is greatest: gate and runner shear shortens fibers and orients the remainder along flow paths.
What does a competent electrical BMC deliver? Cross-checking commercial datasheets and national standards, the working envelope for glass-and-mineral-filled electrical grades looks like this:
| Property | Typical Range | Engineering Significance |
| Dielectric strength | 12–16 kV/mm | Supports compact barrier and bushing designs at LV/MV voltages |
| Comparative tracking index (CTI) | 500–600 V | Resists surface carbonization under wet contamination — the key number for polluted-environment service |
| Arc resistance | ≥180 s (210+ in arc-chute grades) | Survives arc contact during fault interruption; some grades specify thousands of seconds on inclined-plane tracking tests |
| Flammability | UL 94 V-0 at 1.5 mm; premium grades 5VA | Meets enclosure and breaker flammability requirements in thin sections |
| Relative thermal index (RTI) | 130°C, with 155°C grades available | Continuous-use ceiling; Class F applications should specify the higher-rated grades, not assume them |
| Heat deflection temperature | ≥260°C at 1.8 MPa | Short-term thermal headroom far above the RTI — stiff at soldering, fault, and overload temperatures |
| Dielectric loss (1 MHz) | ≤0.02 | Acceptable in most 50/60 Hz apparatus; check before specifying near high-frequency power electronics |
| Flexural strength | 100–130 MPa | Structural for housings and barriers, but below continuous-glass laminates — a molded part and a laminate part are not interchangeable load paths |
Read the RTI line carefully. A compound with 130°C RTI and 260°C HDT will survive a brief fault event comfortably yet still age if asked to run continuously at 150°C. The two numbers answer different questions — one about survival, one about decades — and conflating them is among the most common specification errors in molded insulation.
Here is where the BMC story collides with its sibling technology. Most insulation parts can, in principle, be made two ways: molded from compound, or machined from laminated sheet (GPO-3, G-10/G-11, FR-4). The internet is full of one-sided answers — machinists explain why molding is inconsistent, molders explain why machining wastes money. Both are describing their own shop, not your part.
The balanced picture looks like this:
| Decision Factor | Favors Molding (BMC/DMC) | Favors Machining (from Laminate) |
| Quantity | Thousands-plus; tooling amortizes over volume | Prototypes through low thousands; no tooling investment |
| Geometry | 3D form: ribs, bosses, threads, integrated inserts, hollows | Predominantly flat/2.5D: barriers, boards, brackets, plates |
| Tolerance | Moderate — mold shrinkage and flow set the ceiling | Tight — CNC holds what the machine can measure |
| Load direction | Isotropic-ish short-fiber reinforcement; predictable in any axis | Laminate fiber orientation gives high in-plane strength — if the load lies in the sheet plane, laminate wins |
| Color & surface | Integral color, Class-A surface possible (headlamp reflectors exist for a reason) | Industrial finish; color limited to sheet stock |
| Design churn | Every revision costs tool money | Revision is a program edit |
| Lead time to first part | Weeks-to-months (tool build) | Days-to-weeks |
One technical nuance deserves emphasis because it rarely appears in supplier marketing on either side: molded and machined parts fail differently. A machined laminate carries the oriented architecture of the sheet it came from — strong in-plane, weaker through thickness, with machined edges that must be finished well or they track and wick. A molded part carries the memory of its flow: weld lines where flow fronts meet, and property scatter between flow and transverse directions. Neither weakness is disqualifying; both are manageable. But a specification that ignores which one applies to the part on the drawing has not finished its job.
Confirm the continuous temperature, not the peak. 130°C RTI is the default; 155°C grades exist but must be named, not assumed.
Design to uniform wall thickness. Thick sections cure last and shrink unevenly; bosses and ribs should core out to keep walls near 2–4 mm where geometry allows.
Plan the parting line and flash. Flash has to be removed somewhere — put the parting line where trimming is cheap and the witness mark is harmless.
Specify inserts early. Brass inserts mold in cleanly, but their thermal expansion differs from the compound; wall stock around inserts must be sized for the differential.
Ask where the flow direction runs. If one axis of the part carries load, orient the filling so fibers align with it, and note it in the control plan.
Agree on validation testing. For insulation-critical parts, CTI, arc resistance, and flame ratings should be verified on production-molded samples — plaque data is where expectations go to die.
Volume-check the tooling math before falling in love with the geometry. A beautiful molded design at 400 pieces per year is a machined part wearing a costume.

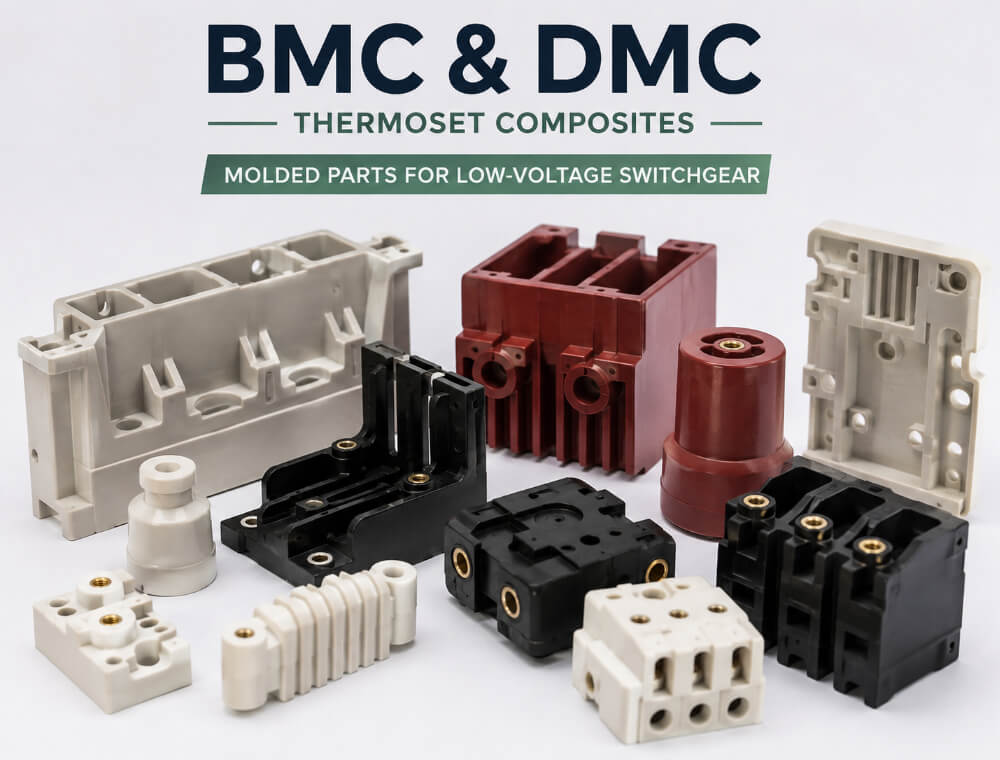

The application map spans more industries than the "electrical" label suggests. In low- and medium-voltage switchgear, BMC arc chutes, phase barriers, and busbar supports combine track resistance with flame performance. In circuit breakers and contactors, molded housings and arc chambers exploit the compound's ability to integrate threads, terminals, and vent geometry in one piece. Transformer and coil products — bobbins, spacers, terminal boards — use its dimensional stability and insulation resistance. Automotive engineering takes the same chemistry for headlamp reflectors, engine covers, and increasingly for EV battery and power-electronics enclosures where a thermoset's heat and flame behavior outclasses most thermoplastics. Kitchen and sanitary hardware rounds it out, where the appeal is integral color and a warm, solid feel.
They share the same family: short glass fibers in an unsaturated polyester resin, loaded with mineral fillers and cured into a thermoset. DMC (dough molding compound) is the older European term; BMC (bulk molding compound) is the American term that now dominates globally. Modern usage treats BMC as a chemically thickened DMC — the thickening step turns a sticky dough into a leather-like solid that can be pre-weighed, log-fed, and injection molded, which is why the two names stopped meaning two materials.
Commercial electrical grades typically deliver dielectric strength of 12–16 kV/mm, a comparative tracking index (CTI) of 500–600 V, arc resistance of 180 seconds or more, UL 94 V-0 at 1.5 mm thickness (some grades reach 5VA), and a dielectric loss factor below 0.02 at 1 MHz. Glass-and-mineral-filled electrical grades are used for circuit breakers, arc chutes, contactor housings, transformer bobbins, and stand-off insulators.
Sometimes. Molding wins when volumes are high, the geometry is three-dimensional, the part needs color or embedded metal inserts, and tolerance requirements are moderate. Machining from laminate (GPO-3, G-11, FR-4) wins for prototypes, flat barrier geometries, very tight tolerances, and load directions that benefit from the oriented fiber structure of a laminate. The crossover point is driven by quantity, geometry, and tolerance — not by which process is objectively better.
Because injection forces the compound through narrow runners and gates, breaking some of the glass fibers and aligning the remainder along flow lines. Compression molding preserves fiber length better but still orients material as the charge flows to fill the cavity. The result is property scatter between flow and transverse directions — which is why datasheet values are typical, not guaranteed, and why critical parts are validated on molded samples rather than on plaques.
BMC and DMC are not two materials, and the story of why they carry two names — a British dough, an American rename, and a magnesium-oxide trick that turned paste into an injection-moldable engineering compound — is also the story of what the material is. Beneath the nomenclature sits a recipe that is mostly mineral by weight, deliberately so, because the stone is what buys the tracking resistance and the flame rating. The compound becomes a part through one of three processes, each leaving its signature in fiber length and flow orientation. And the decision of whether that part should be molded at all, rather than machined from laminate, is a genuine engineering trade — quantity against tolerance, geometry against schedule, isotropy against oriented strength.
