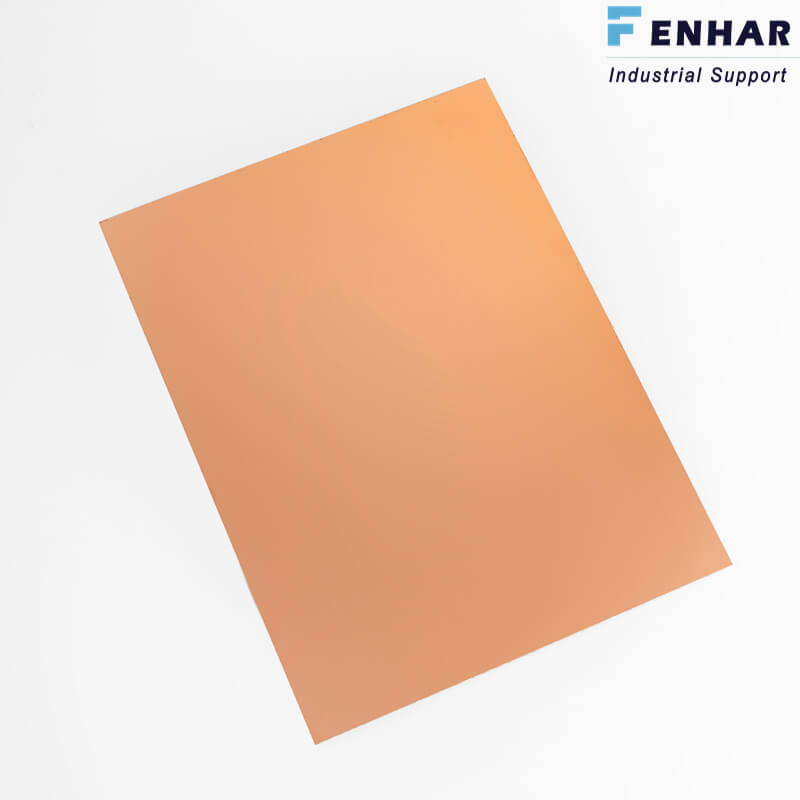

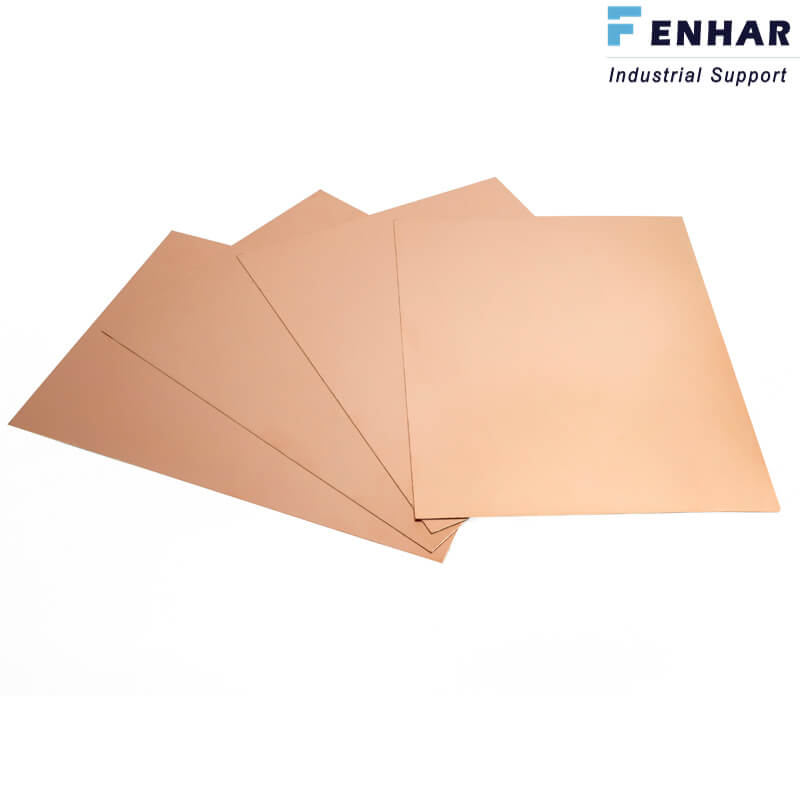

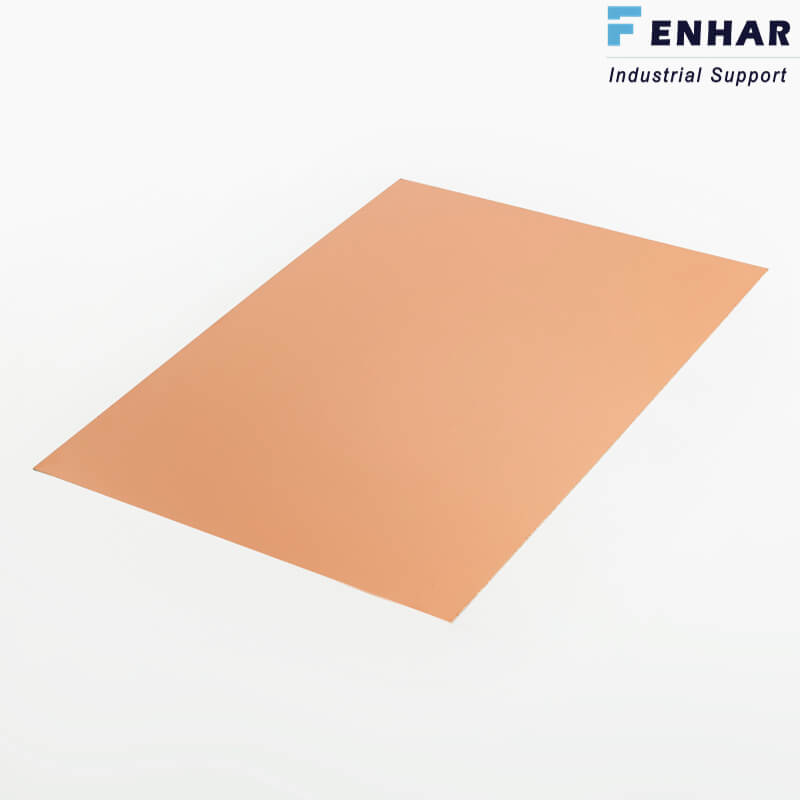

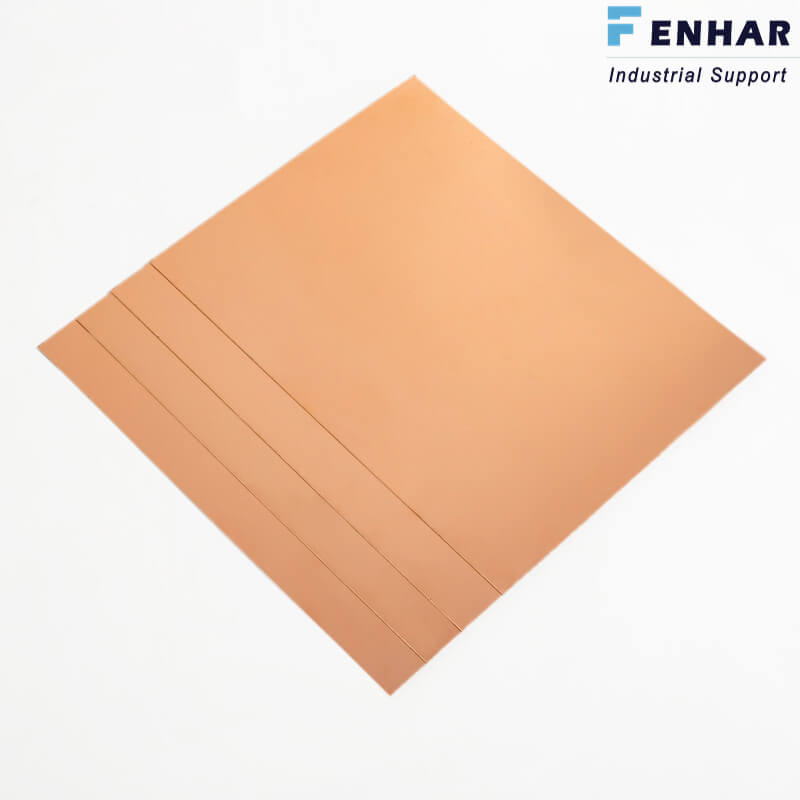

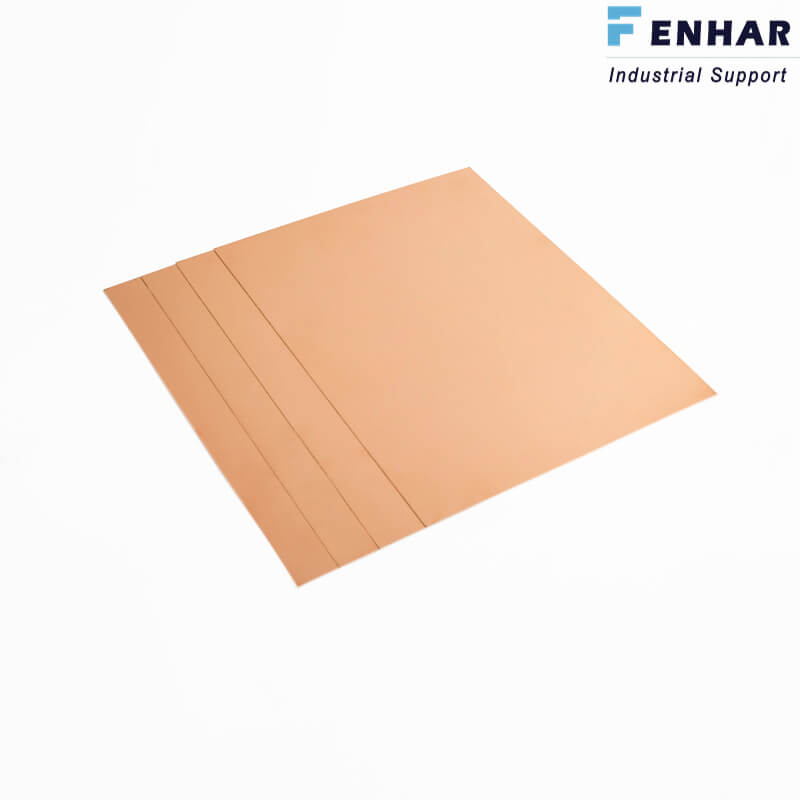

Copper Clad Laminate (CCL) PCB Base Material

Fenhar Copper Clad Laminate (CCL) combines an insulating base material with bonded copper foil to provide a reliable foundation for printed circuit board fabrication. Available in customized thicknesses, copper weights and material grades for diverse electronic manufacturing requirements.

Quantity:
Availability:





Inquire Add to Basket

Product Details

Copper Clad Laminate (CCL)

Fenhar Copper Clad Laminate is engineered for circuit board production where electrical insulation, mechanical integrity and dependable copper adhesion are essential. Depending on the required performance, the laminate can be supplied with an epoxy-glass FR-4 base or other suitable substrate systems. Single-sided and double-sided copper cladding options support different circuit layouts, from straightforward control boards to more demanding electronic assemblies. Customers can specify laminate dimensions, overall thickness, copper foil weight and thermal requirements to match their fabrication processes. Material selection can also take account of soldering temperatures, moisture exposure, drilling conditions and dimensional stability, helping PCB manufacturers choose a suitable substrate for their intended operating environment.

Get a Quote

Product Parameters

Base Material

FR-4 epoxy ,resin ,reinforced ,with ,woven ,glass ,fabric; ,other ,grades ,available ,on ,request

Laminate Thickness

Approximately 0.10–3.20 ,mm, ,depending ,on ,grade ,and ,availability

Copper Foil Thickness

12, 18, ,35, ,70 ,and ,105 ,μm ,nominal ,options

Copper Cladding

Single-sided or ,double-sided

Glass Transition Temperature (Tg)

Grade-dependent; approximately ,130–180°C ,for ,selected ,FR-4 ,v0 grade

Panel Dimensions

Standard or ,customized ,sizes, ,subject ,to ,material ,grade ,and ,production ,capability

Product Advantages

Reliable Copper-to-Substrate Bonding

Properly manufactured laminates provide copper adhesion suited to subsequent imaging, etching and circuit pattern formation, helping maintain conductor integrity during PCB fabrication.

Compatible with Established PCB Processes

Suitable grades can be processed using conventional PCB methods, including drilling, copper pattern etching and multilayer board fabrication where the selected material system permits.

Flexible Material and Size Selection

Different substrate grades, copper weights and sheet dimensions allow manufacturers to select materials according to board design, fabrication requirements and production volume.

Product Applications

Industrial Control and Power Supply PCBs

Used as the base material for motor drive control boards, switching power supplies, AC-to-DC converter boards, PLC interface circuits and industrial relay control modules. The selected grade should match the board's electrical, thermal and mechanical requirements.
Communication and Networking Equipment

Applied in router control boards, Ethernet switches, network interface cards and communication terminal electronics. Standard FR-4 grades suit many conventional digital circuits, while high-speed designs may require materials with specifically controlled dielectric properties and signal-loss characteristics.
Automotive Electronic Control Modules

Used in selected body control units, dashboard electronics, window and seat control circuits, and auxiliary power management boards. Where exposed to elevated temperatures, vibration or repeated thermal cycling, the laminate grade should be selected according to the module's qualification and reliability requirements.
